71
Chapter 4 Configure the Router in Wireless Router Mode
4 ) Tunnel 6to4: An IPv4 connection type is a prerequisite for this connection type.

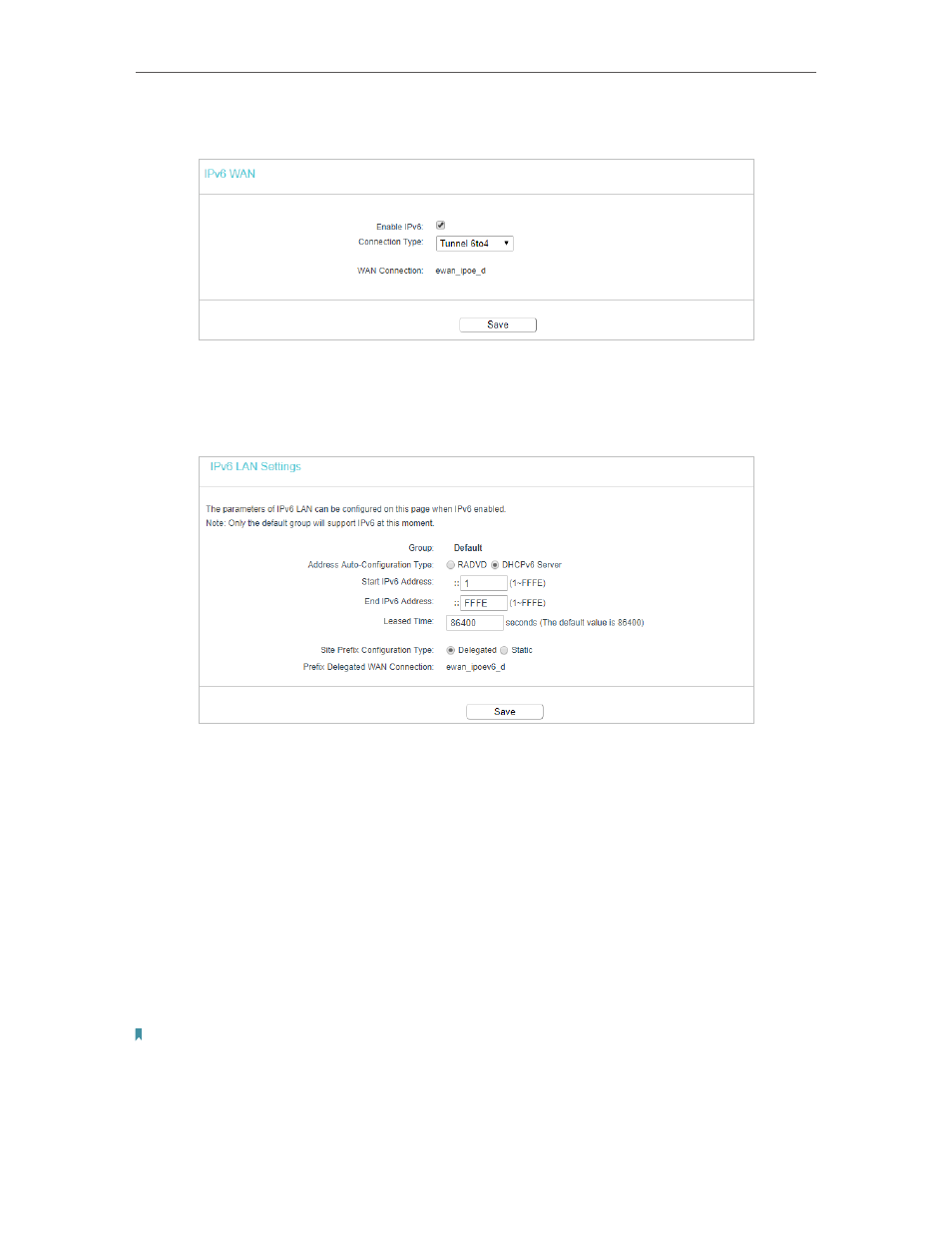

5. Configure the LAN settings. Select an Address Auto-Configuration Type to assign
IPv6 addresses to the computers in your LAN. RADVD and DHCPv6 Server are
provided. If RADVD is selected, it doesn’t need to be configured. If DHCPv6 Server is
selected, please fill in the following parameters.
• Start IPv6 Address - Enter a value for the DHCPv6 server to start with when issuing
IPv6 addresses.
• End IPv6 Address - Enter a value for the DHCPv6 server to end with when issuing IPv6
addresses.
• Leased Time - The Leased Time is the amount of time in which a network user will be
allowed connection to the router with their current dynamic IPv6 address. Enter the
amount of time, in hours, then the user will be leased this dynamic IPv6 address. After
the dynamic IPv6 address has expired, the user will be automatically assigned a new
dynamic IPv6 address. The default is 86400 seconds.
• Site Prefix Configuration Type - Select a type to assign IPv6 prefix addresses to the
computers in your LAN. Delegated and Static are provided.
Note : If your IPv6 wan connection type is “Tunnel 6to4”, the Site Prefix Configuration Type should be “Static” to make
sure “Tunnel 6to4” works properly.
1 ) If Delegated is selected:
• Prefix Delegated WAN Connection - Displays the WAN connection selected to
assign prefix.
