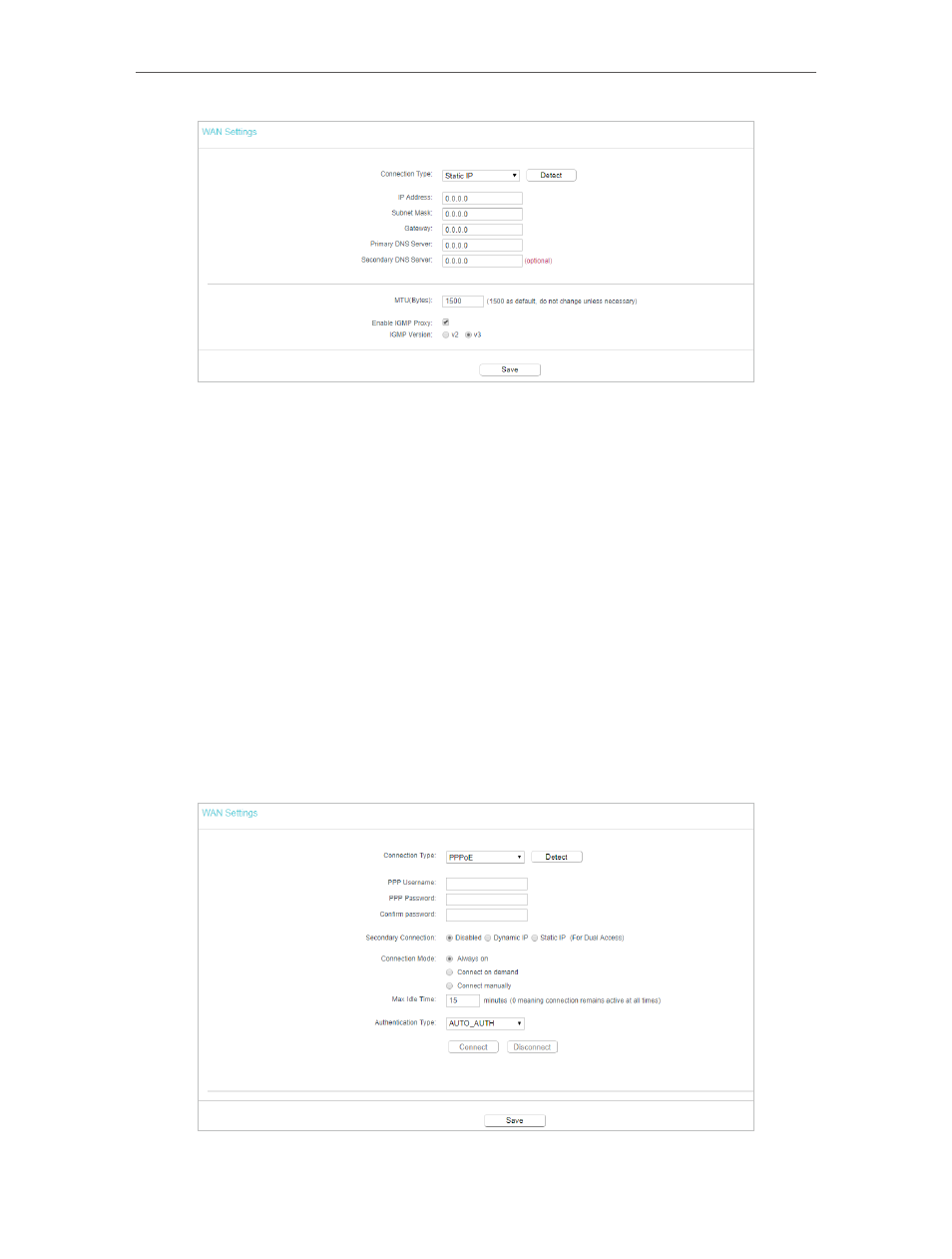

TP-Link TL-WR902AC AC750 Wireless Dual-Band Travel Router - Manual (Page 29)

22
Chapter 4 Configure the Router in Wireless Router Mode
• IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
• Subnet Mask - Enter the subnet mask in dotted-decimal notation provided by your
ISP. Normally 255.255.255.0 is used as the subnet mask.
• Gateway - Enter the gateway IP address in dotted-decimal notation provided by your
ISP.
• Primary/Secondary DNS Server - (Optional) Enter one or two DNS addresses in
dotted-decimal notation provided by your ISP.
• MTU(Bytes) - The normal MTU (Maximum Transmission Unit) value for most Ethernet
networks is 1500 Bytes. It is not recommended that you change the default MTU size
unless required by your ISP.
• IGMP Proxy - Select to enable the IGMP Proxy feature if the IPTV service provided by
the ISP is IGMP techonology-based.
PPPoE/Russia PPPoE
If your ISP provides PPPoE connection, select PPPoE/Russia PPPoE .
