64
Chapter 4 Configure the Router in Wireless Router Mode
• Click Enable Selected to enable selected entries.
• Click Disable Selected to disable selected entries.

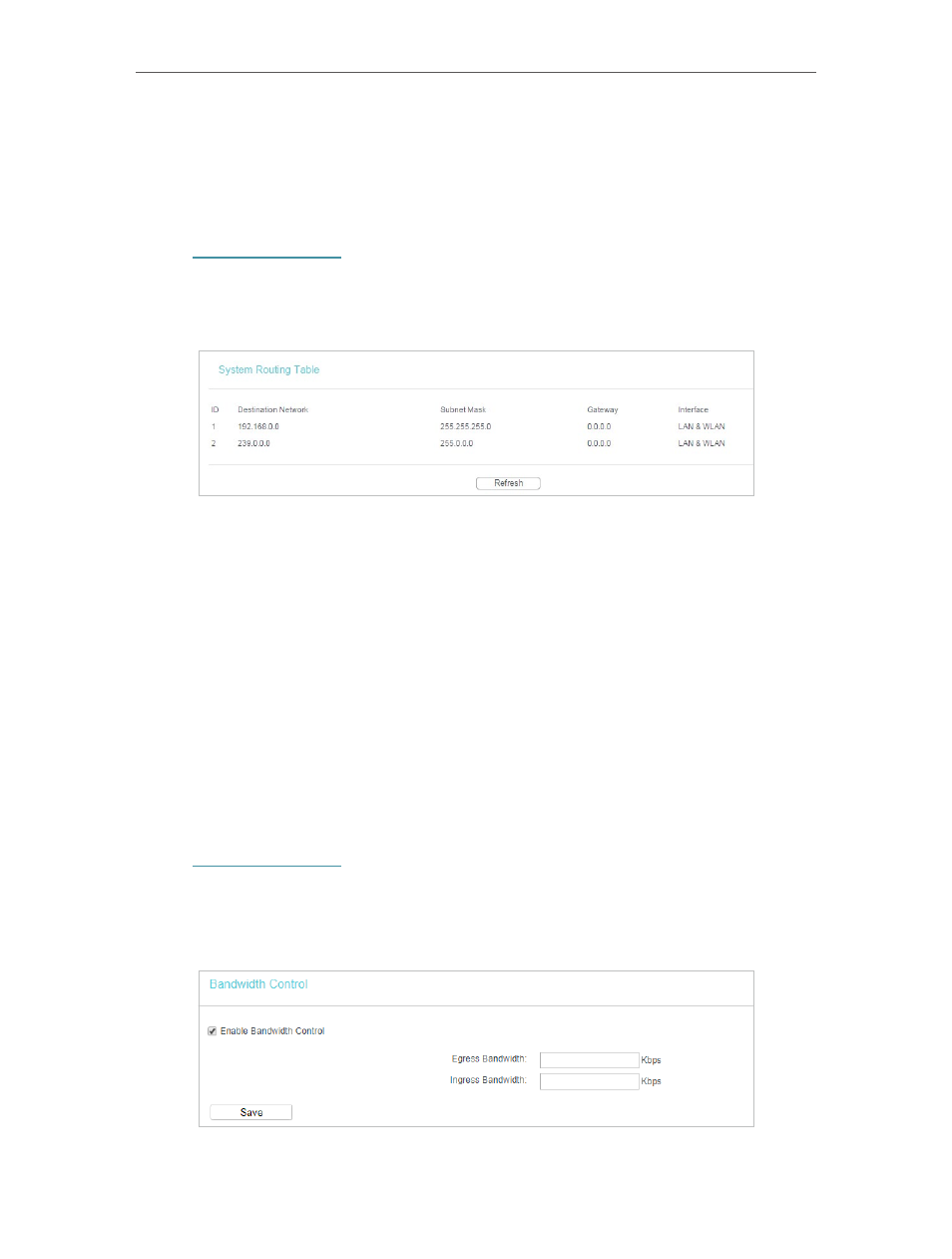

4. 11. 2. System Routing Table
1. Visit http://tplinkwifi.net , and log in with the username and password you set for the
router.
2. Go to Advanced Routing > System Routing Table , and you can view all the valid route
entries in use.
• Destination Network - The Destination Network is the address of the network or host
to which the static route is assigned.
• Subnet Mask - The Subnet Mask determines which portion of an IP address is the
network portion, and which portion is the host portion.
• Gateway - This is the IP address of the gateway device that allows for contact between
the Router and the network or host.
• Interface - This interface tells you whether the Destination IP Address is on the LAN &
WLAN (internal wired and wireless networks), or the WAN (Internet).
• Click Refresh to refresh the data displayed.
4. 12. Bandwidth Control
1. Visit http://tplinkwifi.net , and log in with the username and password you set for the
router.
2. Go to Bandwidth Control .
3. Configure the bandwidth as needed and click Save .
