TP-Link TL-WR902AC AC750 Wireless Dual-Band Travel Router - Manual (Page 41)

34

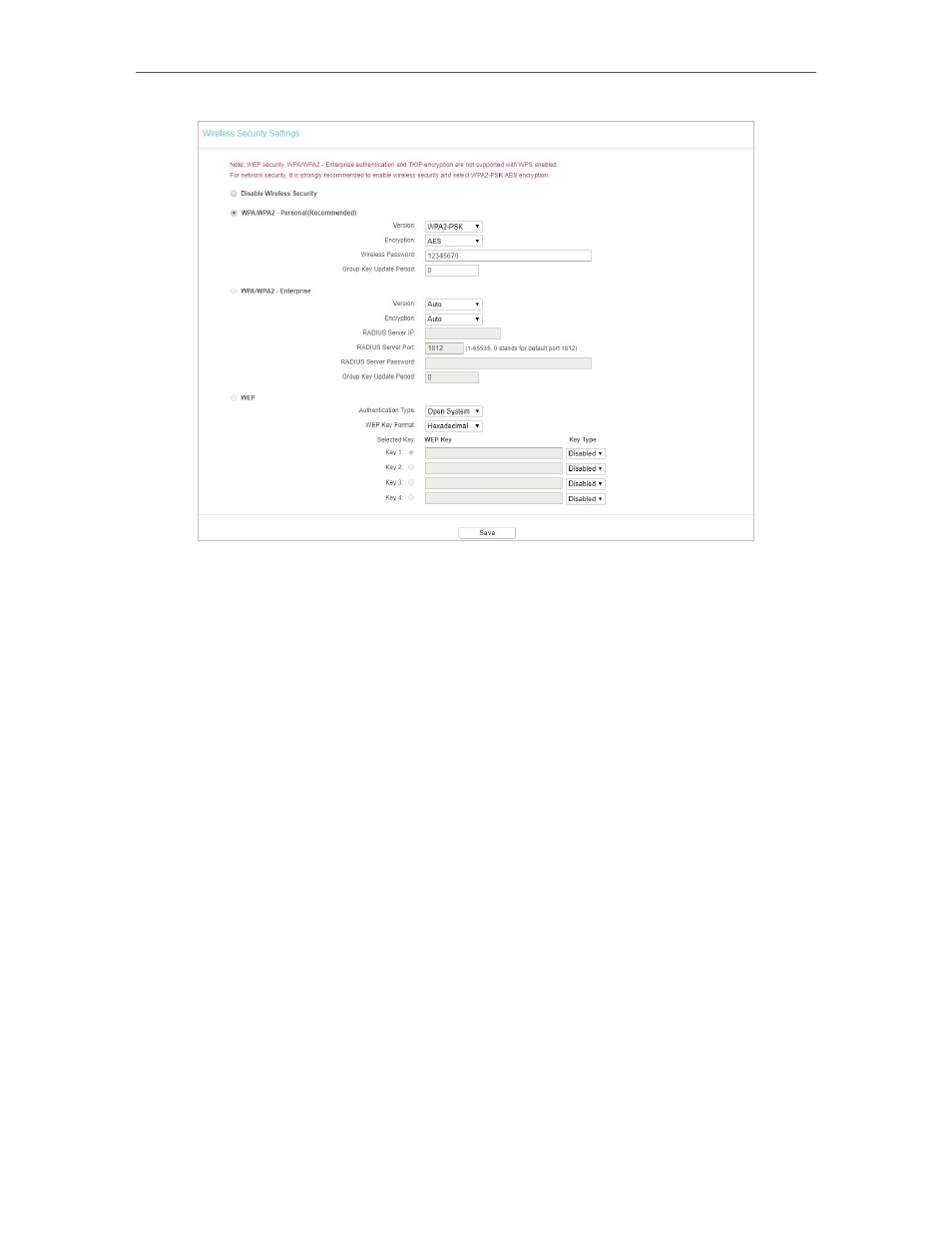

Chapter 4 Configure the Router in Wireless Router Mode
• Disable Wireless Security - The wireless security function can be enabled or disabled.
If disabled, wireless clients can connect to the router without a password. It’s strongly
recommended to choose one of the following modes to enable security.
• WPA/WPA2-Personal - It’s the WPA/WPA2 authentication type based on pre-shared
passphrase.
• Version - Select Auto , WPA-PSK or WPA2-PSK .
• Encryption - Select Auto , TKIP or AES .
• Wireless Password - Enter ASCII or Hexadecimal characters. For Hexadecimal,
the length should be between 8 and 64 characters; for ASCII, the length should
be between 8 and 63 characters.
• Group Key Update Period - Specify the group key update interval in seconds.
The value can be 0 or at least 30. Enter 0 to disable the update.
• WPA/WPA2-Enterprise - It’s based on Radius Server.
• Version - Select Auto , WPA or WPA2 .
• Encryption - Select Auto , TKIP or AES .
• Radius Server IP - Enter the IP address of the Radius server.
• Radius Port - Enter the port that Radius server used.
• Radius Password - Enter the password for the Radius server.
• Group Key Update Period - Specify the group key update interval in seconds.
The value should be 30 or above. Enter 0 to disable the update.
• WEP - It is based on the IEEE 802.11 standard.
