TP-Link TL-WR902AC AC750 Wireless Dual-Band Travel Router - Manual (Page 31)

24
Chapter 4 Configure the Router in Wireless Router Mode
• IGMP Proxy - Select to enable the IGMP Proxy feature if the IPTV service provided by
the ISP is IGMP techonology-based.
• Use IP address specified by ISP - If your ISP does not automatically assign IP addresses
to the router, please select Use IP address specified by ISP and enter the IP address
provided by your ISP in dotted-decimal notation.
• Set DNS server manually - If your ISP does not automatically assign DNS addresses to
the router, please select Set DNS server manually and enter the IP address in dotted-
decimal notation of your ISP’s primary DNS server. If a secondary DNS server address
is available, enter it as well.

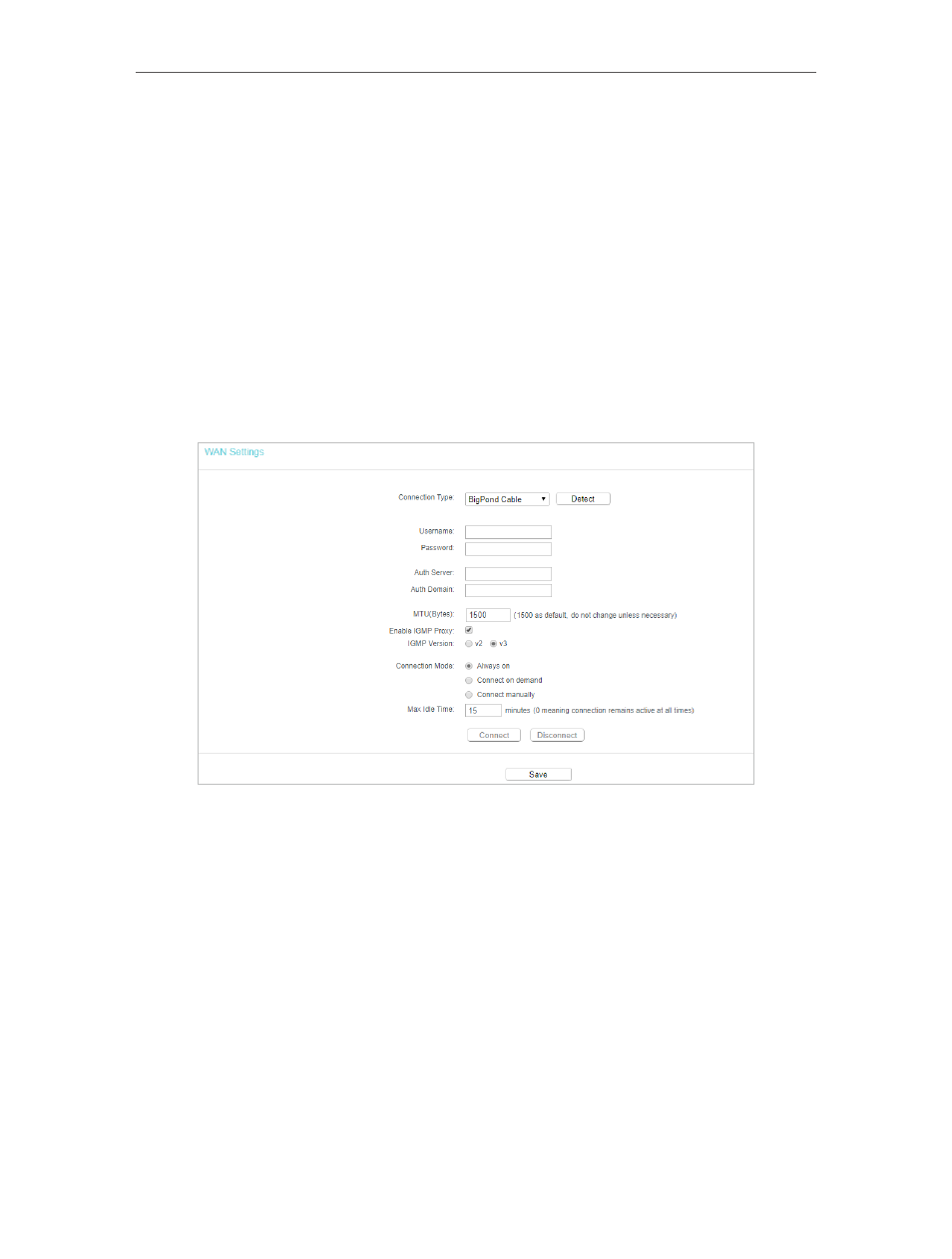

BigPond Cable
If your ISP provides BigPond cable connection, please select BigPond Cable .
• Username/Password - Enter the username and password provided by your ISP. These
fields are case-sensitive.
• Auth Server - Enter the authenticating server IP address or host name.
• Auth Domain - Type in the domain suffix server name based on your location.
• MTU(Bytes) - The default MTU size is 1480 bytes. It is not recommended that you
change the default MTU size unless required by your ISP.
• IGMP Proxy - Select to enable the IGMP Proxy feature if the IPTV service provided by
the ISP is IGMP techonology-based.
• Connection Mode
• Always On - Connect automatically after the router is connected.
• Connect on demand - In this mode, the internet connection can be terminated
automatically after a specified inactivity period (Max Idle Time) and be re-
established when you attempt to access the internet again. If you want to keep
