Basic system OperatiOns
3-6
powermax
105 Service Manual
operating the Powermax105
Follow the steps below to begin cutting or gouging with the Powermax system.
Note: This section provides basic operating instructions. Before operating your Powermax in a production
environment, refer to the Hand Torch Setup section or the Machine Torch Setup section.
Connect the electrical power, gas supply, and torch lead
For information on connecting the proper plug to the power cord, refer to the Power Supply Setup section.
Plug in the power cord and connect the gas supply line. For more information about the electrical requirements and
the gas supply requirements of the Powermax, see the Power Supply Setup section. To connect the torch, push the
FastConnect TM connector into the receptacle on the front of the power supply You will attach the work lead in the next
section.

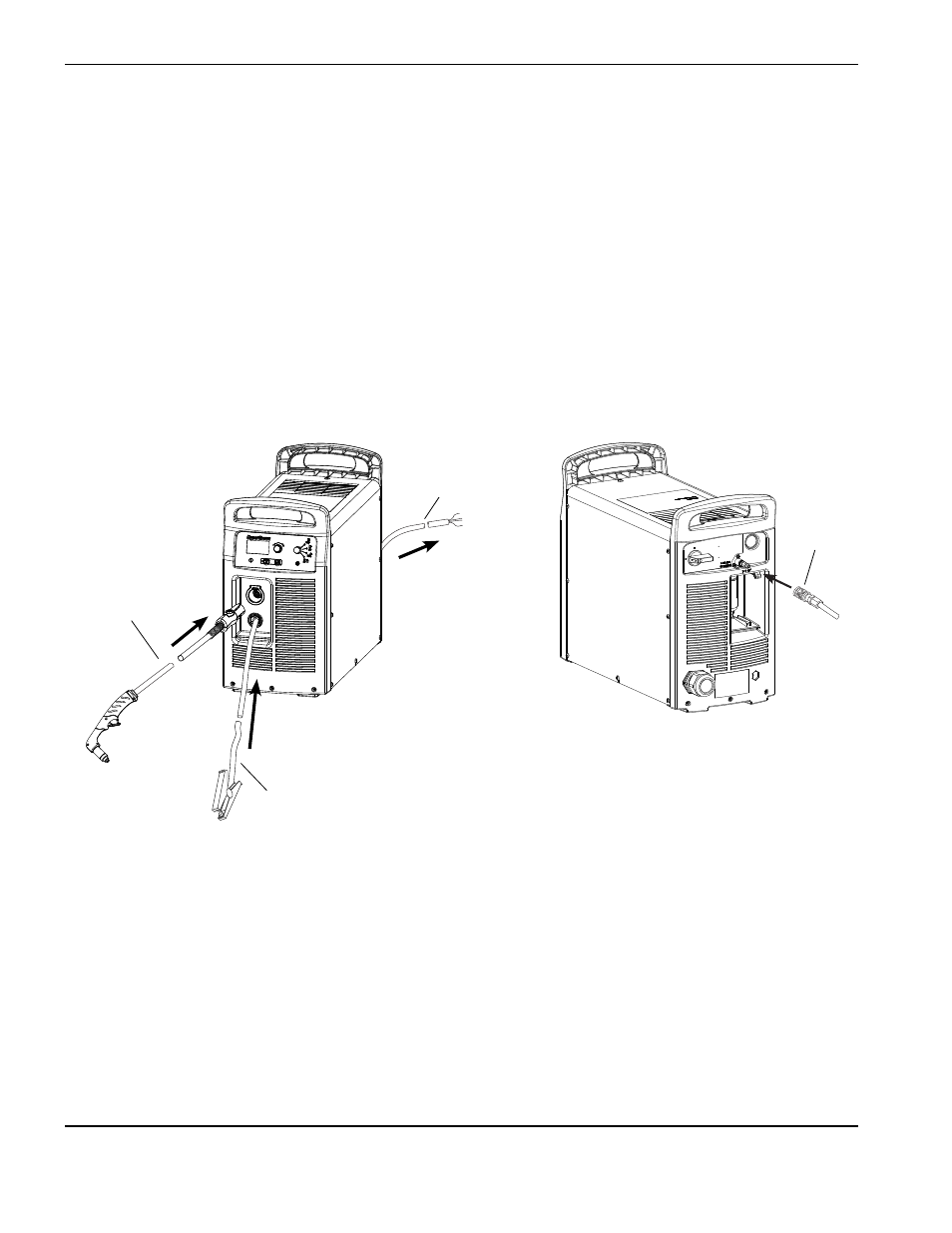

Power cord (does not
ship with plug)
Work lead
Torch lead
Gas supply
line
