Programming: Programming contours
6.5 P
a
th cont
ours—P
olar coor
dinat
e
s

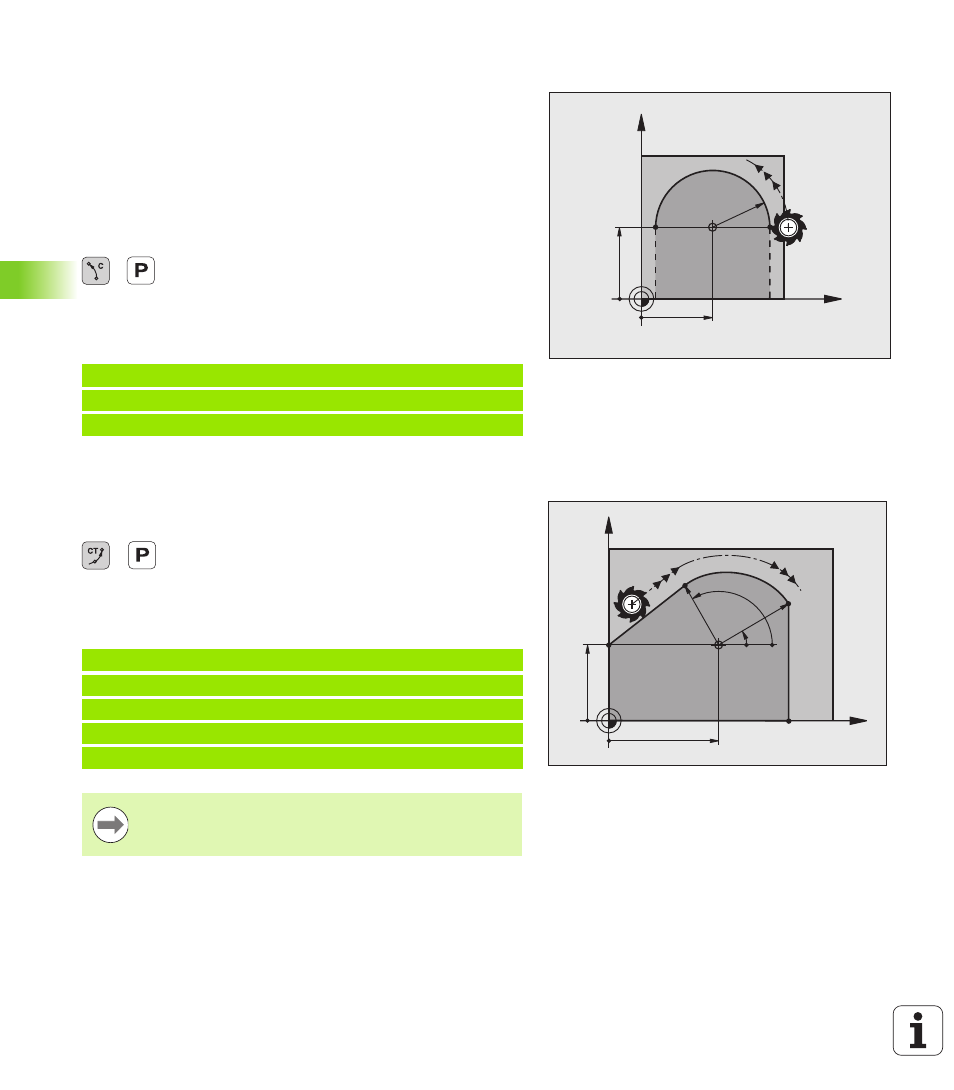

Circular path G12/G13/G15 around pole I, J
The polar coordinate radius R is also the radius of the arc. R is defined
by the distance from the starting point to the pole I, J. The last
programmed tool position will be the starting point of the arc.
Direction of rotation
In clockwise direction: G12
In counterclockwise direction: G13
Without programmed direction: G15. The TNC traverses the circular
arc with the last programmed direction of rotation
U
Polar-coordinates angle H
: Angular position of the
arc end point between –99 999.9999° and
+99 999.9999°
U
Direction of rotation DR
Example NC blocks
Circular path G16 with tangential connection
The tool moves on a circular path, starting tangentially from a
preceding contour element.
U
Polar coordinate radius R
: Enter the distance from
are end point to the pole I, J
U
Polar coordinates angle H
: Angular position of the
arc end point
Example NC blocks
X
Y
25
25
R20
CC
N180 I+25 J+25 *
N190 G11 G42 R+20 H+0 F250 M3 *
N200 G13 H+180 *
X
Y
40
35
CC
30°
120°
R30
R25
N120 I+40 J+35 *
N130 G01 G42 X+0 Y+35 F250 M3 *
N140 G11 R+25 H+120 *
N150 G16 R+30 H+30 *
N160 G01 Y+0 *
The pole is not the center of the contour arc!
