38 First steps with the TNC 620
1
.3 Pr
ogr
amming the first par
t
Define a workpiece blank
Immediately after you have created a new program, the TNC starts the
dialog for entering the workpiece blank definition. Always define the
workpiece blank as a cuboid by entering the MIN and MAX points,
each with reference to the selected reference point.
After you have created a new program, the TNC automatically initiates
the workpiece blank definition and asks for the required data:
U Spindle axis Z – Plane XY : Enter the active spindle axis. G17 is
saved as default setting. Accept with the ENT key
U Workpiece blank def.: Minimum X : Enter the smallest X coordinate
of the workpiece blank with respect to the reference point, e.g. 0.
Confirm with the ENT key
U Workpiece blank def.: Minimum Y : Enter the smallest Y coordinate
of the workpiece blank with respect to the reference point, e.g. 0.
Confirm with the ENT key
U Workpiece blank def.: Minimum Z : Enter the smallest Z coordinate
of the workpiece blank with respect to the reference point, e.g. –40.
Confirm with the ENT key
U Workpiece blank def.: Maximum X : Enter the largest X coordinate
of the workpiece blank with respect to the reference point, e.g. 100.
Confirm with the ENT key
U Workpiece blank def.: Maximum Y : Enter the largest Y coordinate
of the workpiece blank with respect to the reference point, e.g. 100.
Confirm with the ENT key
U Workpiece blank def.: Maximum Z : Enter the largest Z coordinate
of the workpiece blank with respect to the reference point, e.g. 0.
Confirm with the ENT key. The TNC concludes the dialog

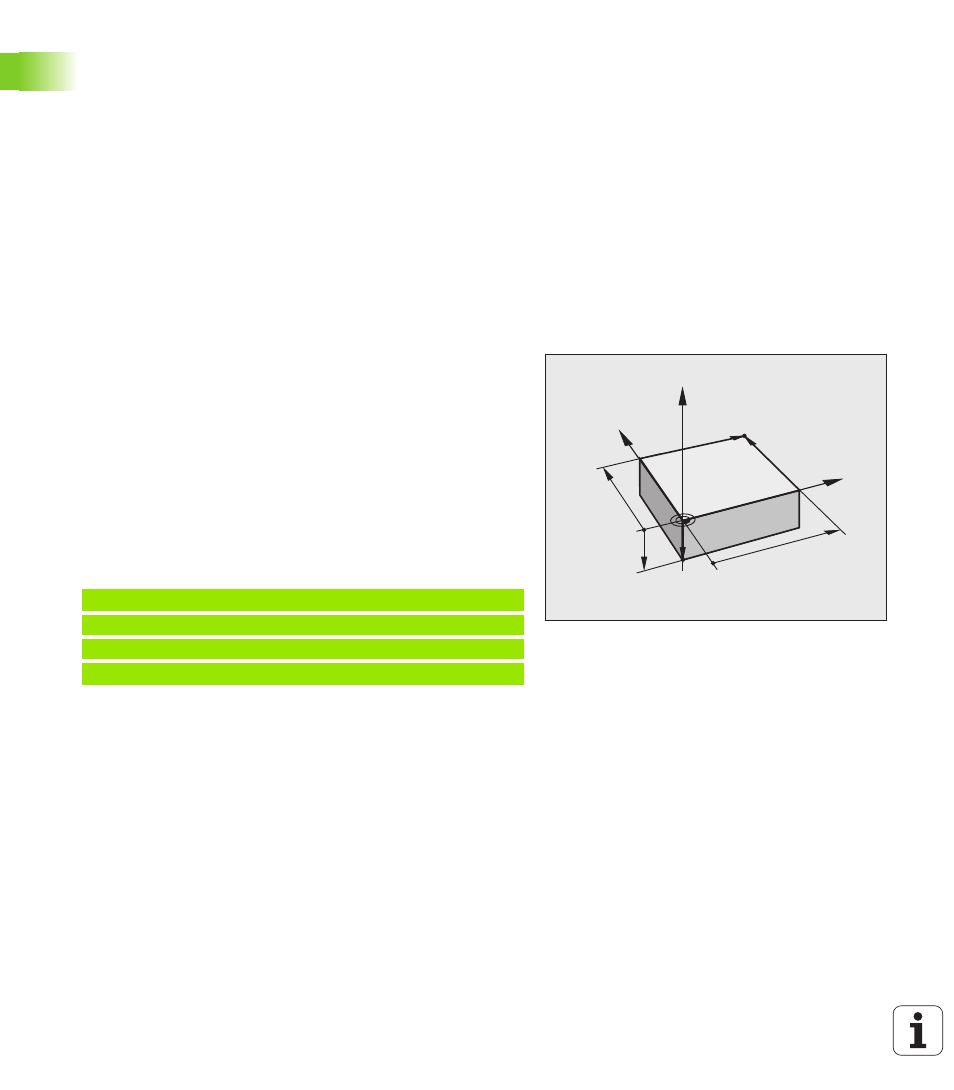

Example NC blocks
Further information on this topic
„ Defining the workpiece blank: (see page 82)
Y
X
Z
MAX
MIN
-40
100
100
0
0
%NEW G71 *
N10 G30 G17 X+0 Y+0 Z-40 *
N20 G31 X+100 Y+100 Z+0 *
N99999999 %NEW G71 *
