.2 The PLANE function: Tilting the
w
or
king plane (sof
tw
ar
e option 1)
Input parameters
U

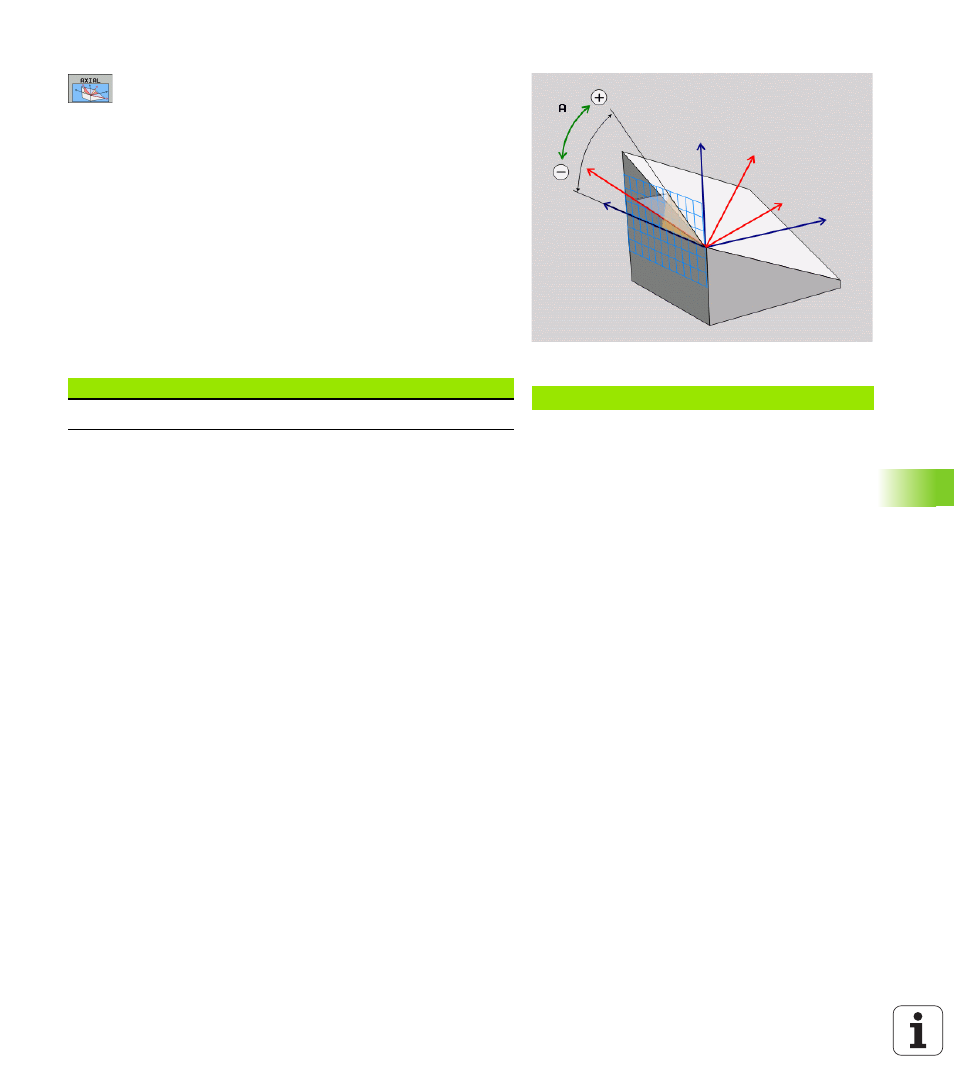

Axis angle A?:
Axis angle to which the A axis is to
be tilted. If entered incrementally, it is the angle by
which the A axis is to be tilted from its current
position. Input range: –99999.9999° to +99999.9999°
U
Axis angle B?
: Axis angle to which the B axis is to be
tilted. If entered incrementally, it is the angle by
which the B axis is to be tilted from its current
position. Input range: –99999.9999° to +99999.9999°
U
Axis angle C?
: Axis angle to which the C axis is to be
tilted. If entered incrementally, it is the angle by
which the C axis is to be tilted from its current
position. Input range: –99999.9999° to +99999.9999°
U
Continue with the positioning properties (see
"Specifying the positioning behavior of the PLANE
function" on page 324)
Abbreviations used
Example: NC block
5 PLANE AXIAL B-45 .....
Abbreviation
Meaning
AXIAL
In the axial direction
