HEIDENHAIN TNC 620 213
8.2 P
a
rt
f
a
milies—Q par
a
met
e
rs
in place of numer
ical v
a
lues
8.2 Part families—Q parameters in
place of numerical values
Application
The Q parameter function D0: ASSIGN assigns numerical values to Q
parameters. This enables you to use variables in the program instead
of fixed numerical values.
Example NC blocks
You need write only one program for a whole family of parts, entering
the characteristic dimensions as Q parameters.
To program a particular part, you then assign the appropriate values to
the individual Q parameters.
Example

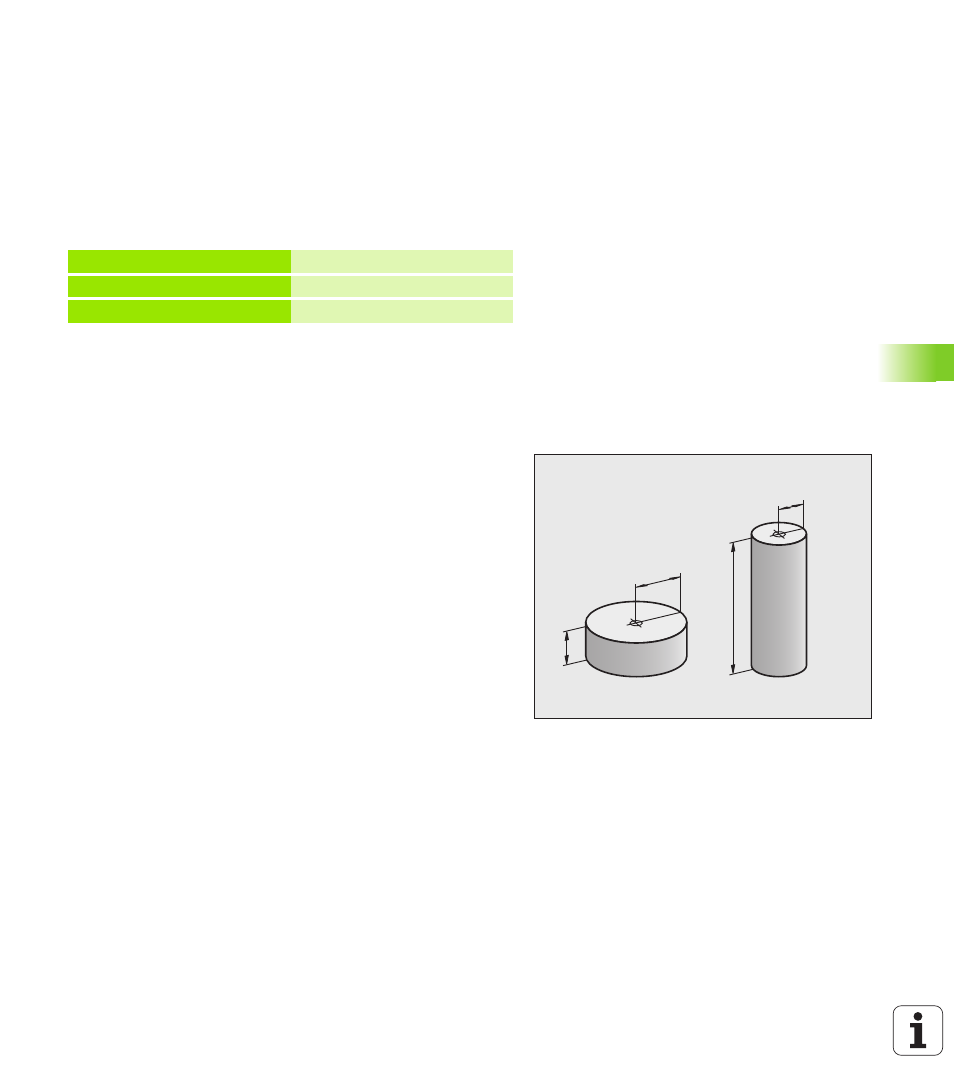

Cylinder with Q parameters
N150 D00 Q10 P01 +25 * Assignment
... Q10 is assigned the value 25
N250 G00 X +Q10 * Corresponds to G00 X +25
Z1
Q1
Q2
Z2
Q1
Q2
Cylinder radius R = Q1
Cylinder height H = Q2
Cylinder Z1 Q1 = +30
Q2 = +10
Cylinder Z2 Q1 = +10
Q2 = +50
