40 First steps with the TNC 620
1
.3 Pr
ogr
amming the first par
t

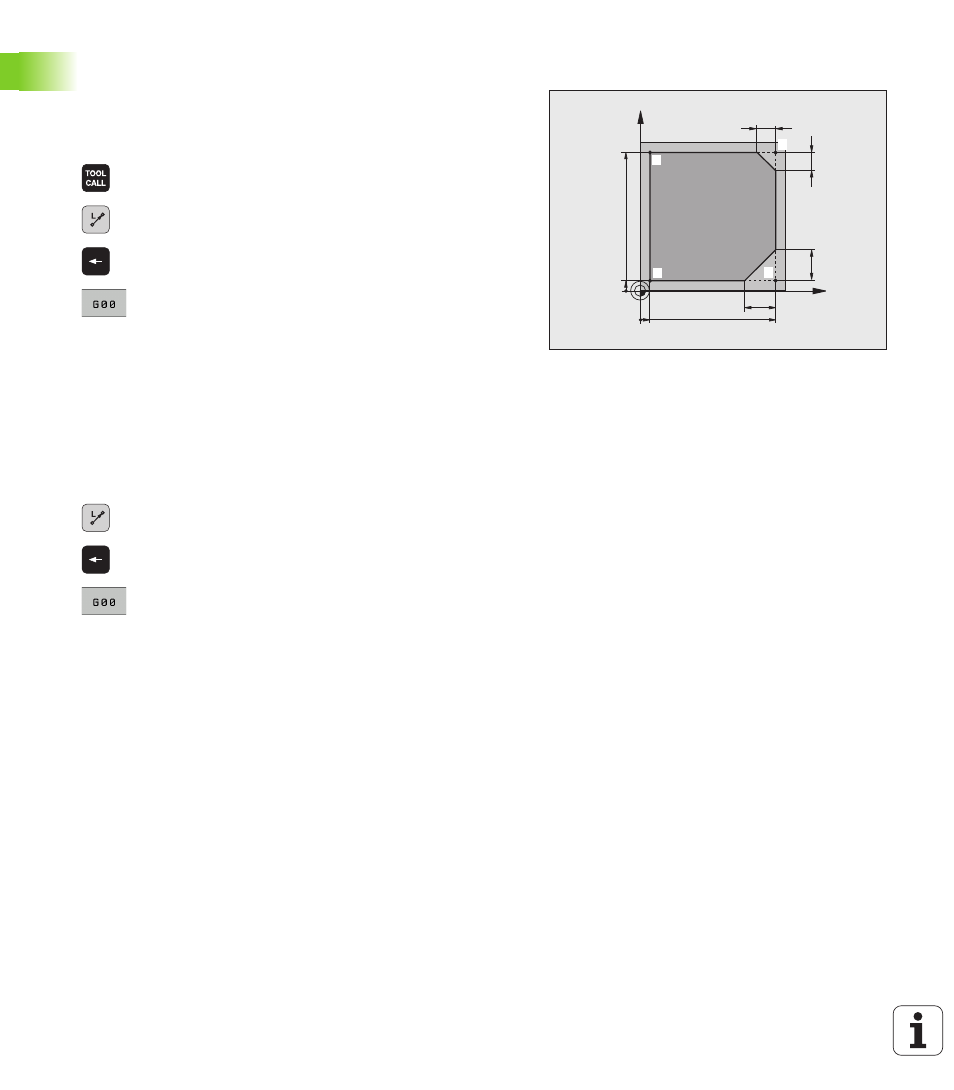

Program a simple contour
The contour shown to the right is to be milled once to a depth of 5 mm.
You have already defined the workpiece blank. After you have initiated
a dialog through a function key, enter all the data requested by the
TNC in the screen header.
U Call the tool: Enter the tool data. Confirm each of your
entries with the ENT key. Do not forget the tool axis
U Press the L key to open a program block for a linear
movement
U Press the left arrow key to switch to the input range
for G codes
U Press the G0 soft key if you want to enter a rapid
traverse motion
U Retract the tool: Press the orange axis key Z in order
to get clear in the tool axis, and enter the value for the
position to be approached, e.g. 250. Confirm with the
ENT key
U Confirm Radius comp.: RL/RR/no comp? by pressing
the ENT key: Do not activate the radius compensation
U Confirm the Miscellaneous function M? with the
END key: The TNC saves the entered positioning
block
U Press the L key to open a program block for a linear
movement
U Press the left arrow key to switch to the input range
for G codes
U Press the G0 soft key if you want to enter a rapid
traverse motion
U Preposition the tool in the working plane: Press the
orange X axis key and enter the value for the position
to be approached, e.g. -20
U Press the orange Y axis key and enter the value for the
position to be approached, e.g. -20. Confirm with the
ENT key
U Confirm Radius comp.: RL/RR/no comp? by pressing
the ENT key: Do not activate the radius compensation
U Confirm the Miscellaneous function M? with the
END key: The TNC saves the entered positioning
block
X
Y
9 5
95
5
10
10
20
20
1 4
2
3
