13.4 D
a
tu
m set
ting without a 3-D
touc
h
pr
obe

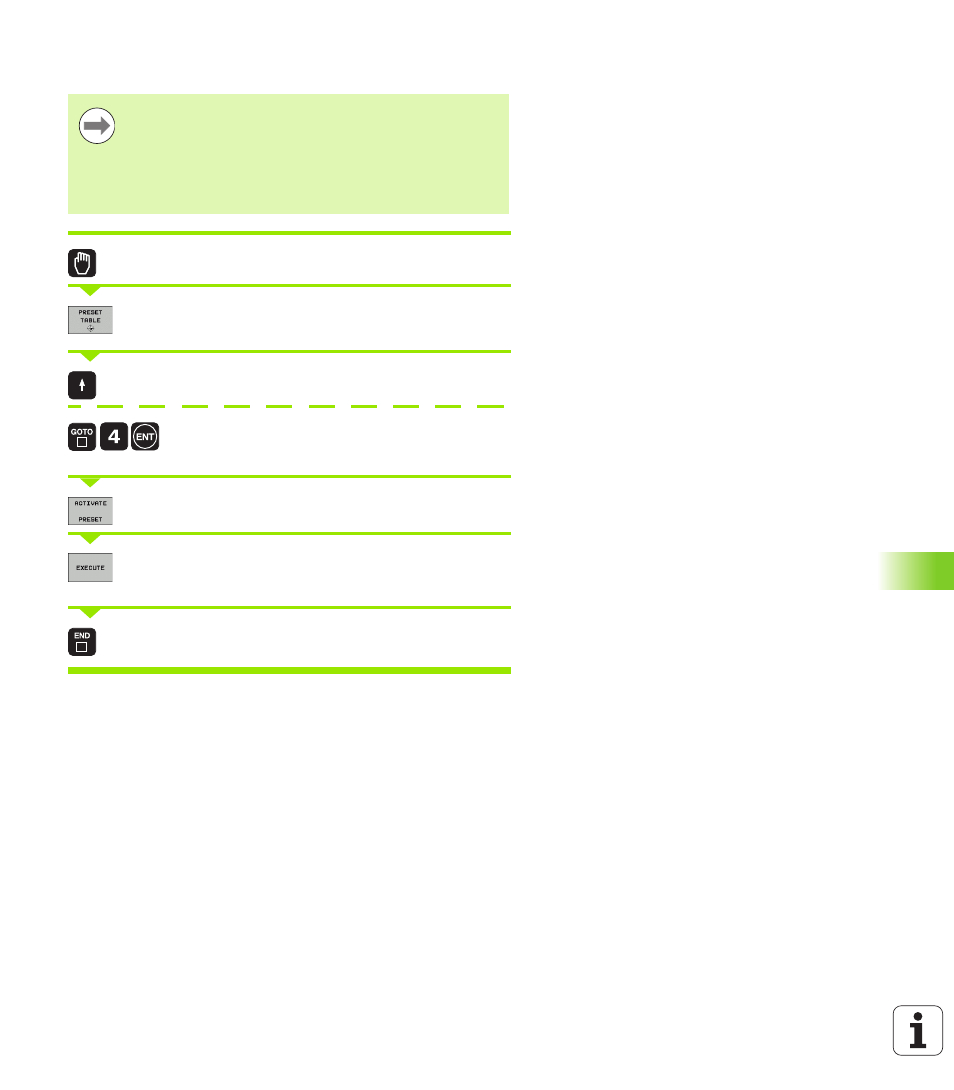

Activating a datum from the preset table in the Manual Operation
mode
Select the Manual Operation mode
Display the preset table
Select the datum number you want to activate, or
With the GOTO key, select the datum number that
you want to activate. Confirm with the ENT key
Activate the preset
Confirm activation of the datum. The TNC sets the
display and—if defined—the basic rotation
Leave the preset table
Activating a datum from the preset table in an NC program
To activate datums from the preset table during program run, use
Cycle 247. In Cycle 247 you only define the number of the datum that
you want to activate (see User's Manual, Cycles, Cycle 247 SET
DATUM).
When activating a datum from the preset table, the TNC
resets the active datum shift, mirroring, rotation and
scaling factor.
However, a coordinate transformation that was
programmed in Cycle19 Tilted Working Plane, or through
the PLANE function, remains active.
