Areca ARC-8050T3U 6-Bay Thunder3 Desktop RAID Storage Array - Manual (Page 16)

INSTALLATION
16
2.3 RAID Storage View

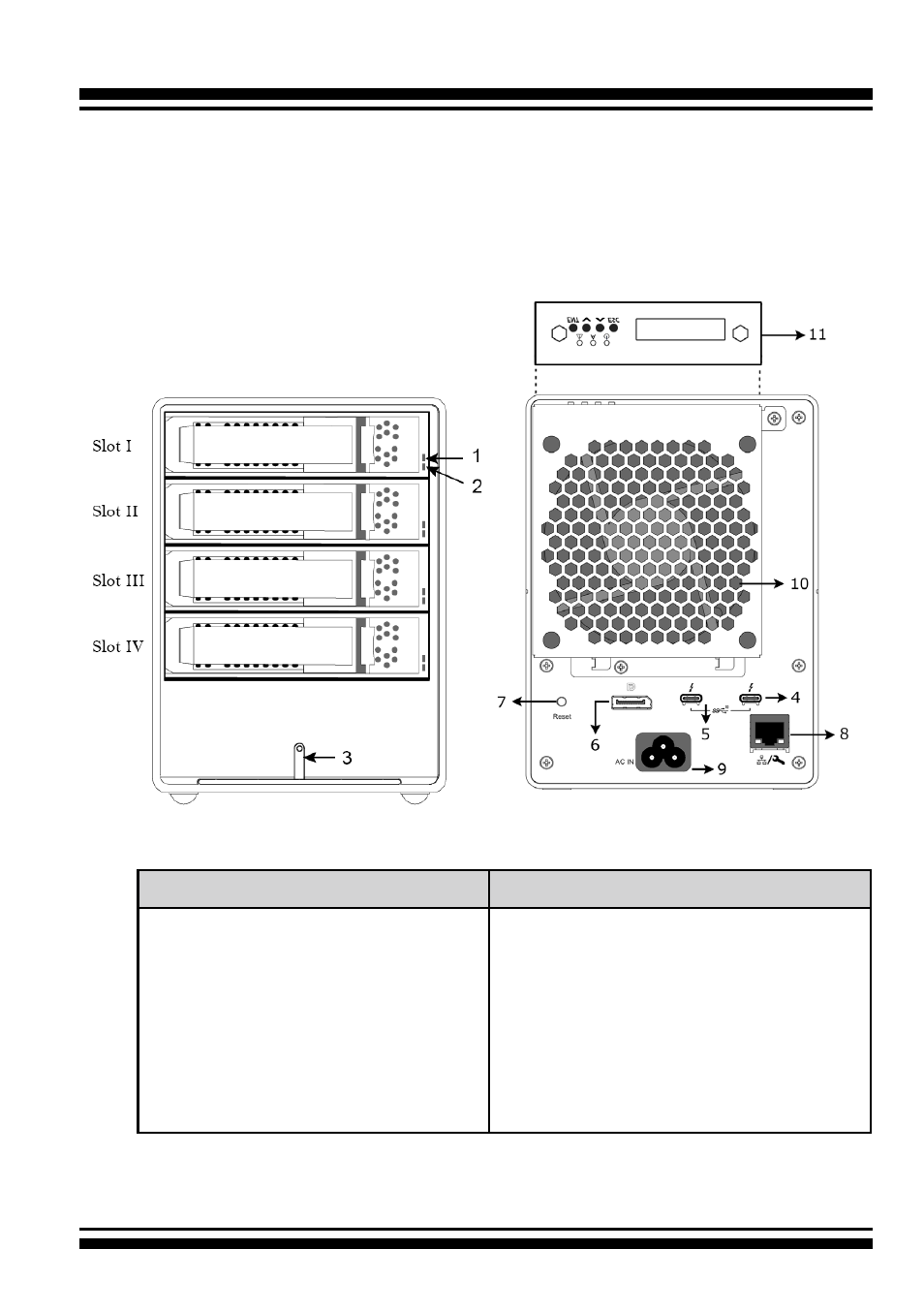

The following diagram is the ARC-8050T3U 4-bay RAID storage
front view and rear view.
Front View Rear View
1. Disk Activity LED
2. Disk Fault / Link LED
3. Power and Global Fault
LED
4. Thunderbolt & USB 3.2 Port1
5. Thunderbolt & USB 3.2 Port2
6. Display Port
7. Reset Button
8. LAN Port
9. Power Connector
10. System Fan
11. LCD Panel with Keypad
