INSTALLATION
18

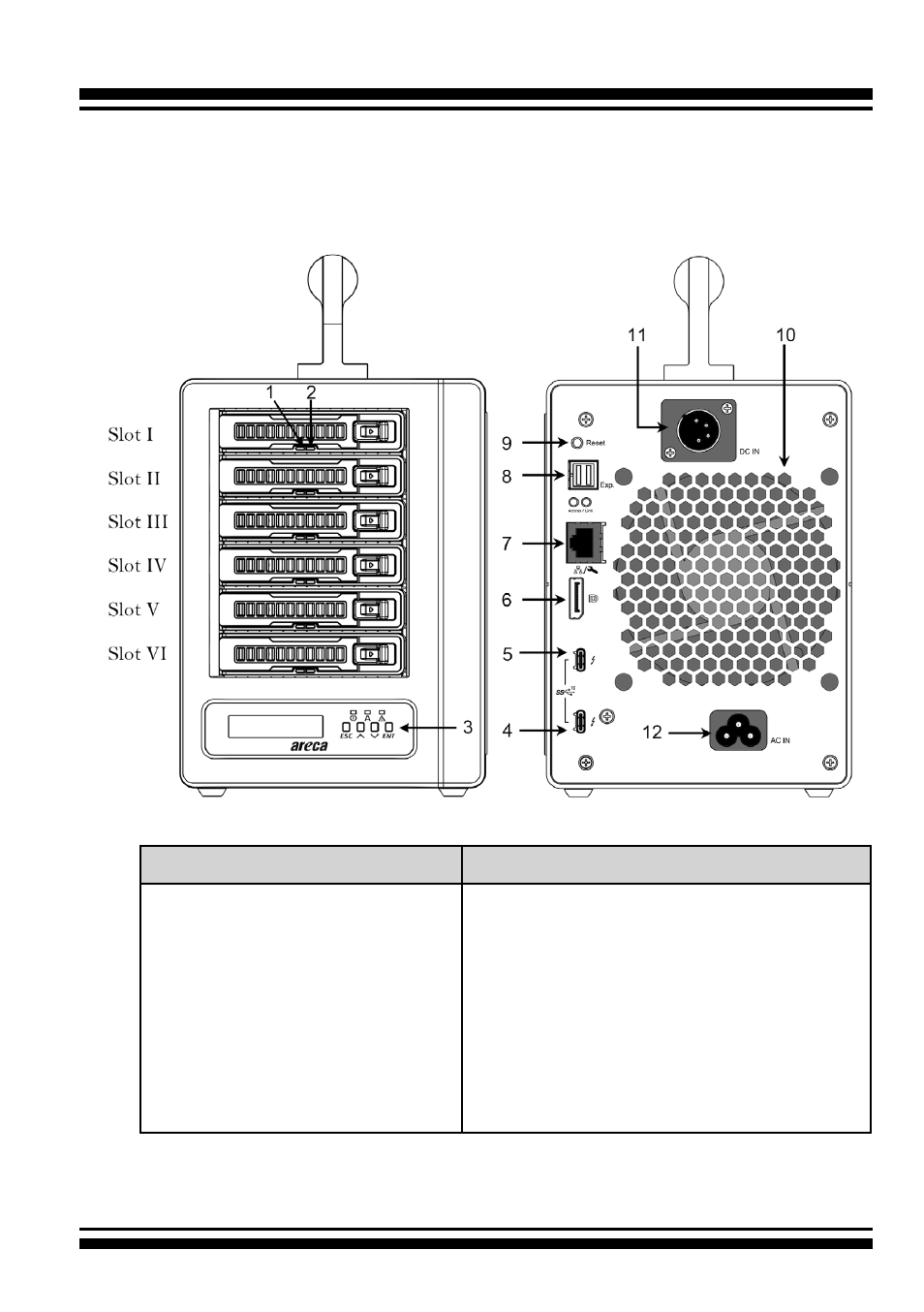

The following diagram is the ARC-8050T3U-6M RAID storage front
view and rear view.
Front View Rear View
1. Disk Activity LED
2. Disk Fault / Link LED
3. LCD Panel with Keypad
4. Thunderbolt & USB 3.2 Port1
5. Thunderbolt & USB 3.2 Port2
6. Display Port
7. LAN Port
8. SAS Expansion Port
9. Reset Button
10. System Fan
11. 4-Pin Male XLR (DC_IN)
12. Power Connector (AC_IN)
