INSTALLATION
19
Front View Rear View
1. Disk Activity LED
2. Disk Fault/Link LED
3. LCD Panel with Keypad
4. Thunderbolt & USB 3.2 Port1
5. Thunderbolt & USB 3.2 Port2
6. Display Port
7. LAN Port
8. Reset Button
9. System Fan1
10. System Fan2
11. Power Connector

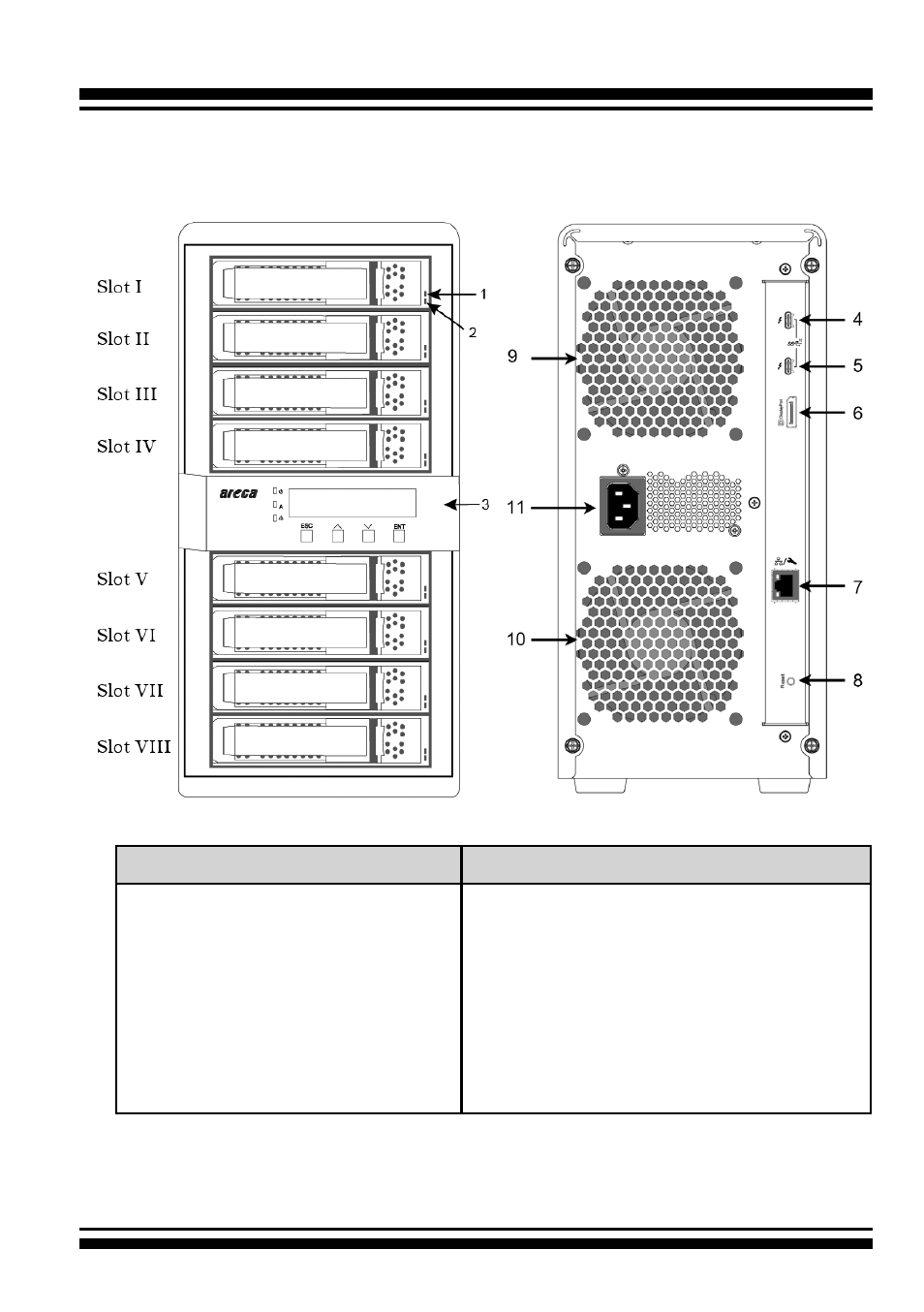

The following diagram is the ARC-8050T3U 8-bay RAID storage
front view and rear view.
