4-56 W A N s u i t e 6 x 3 0

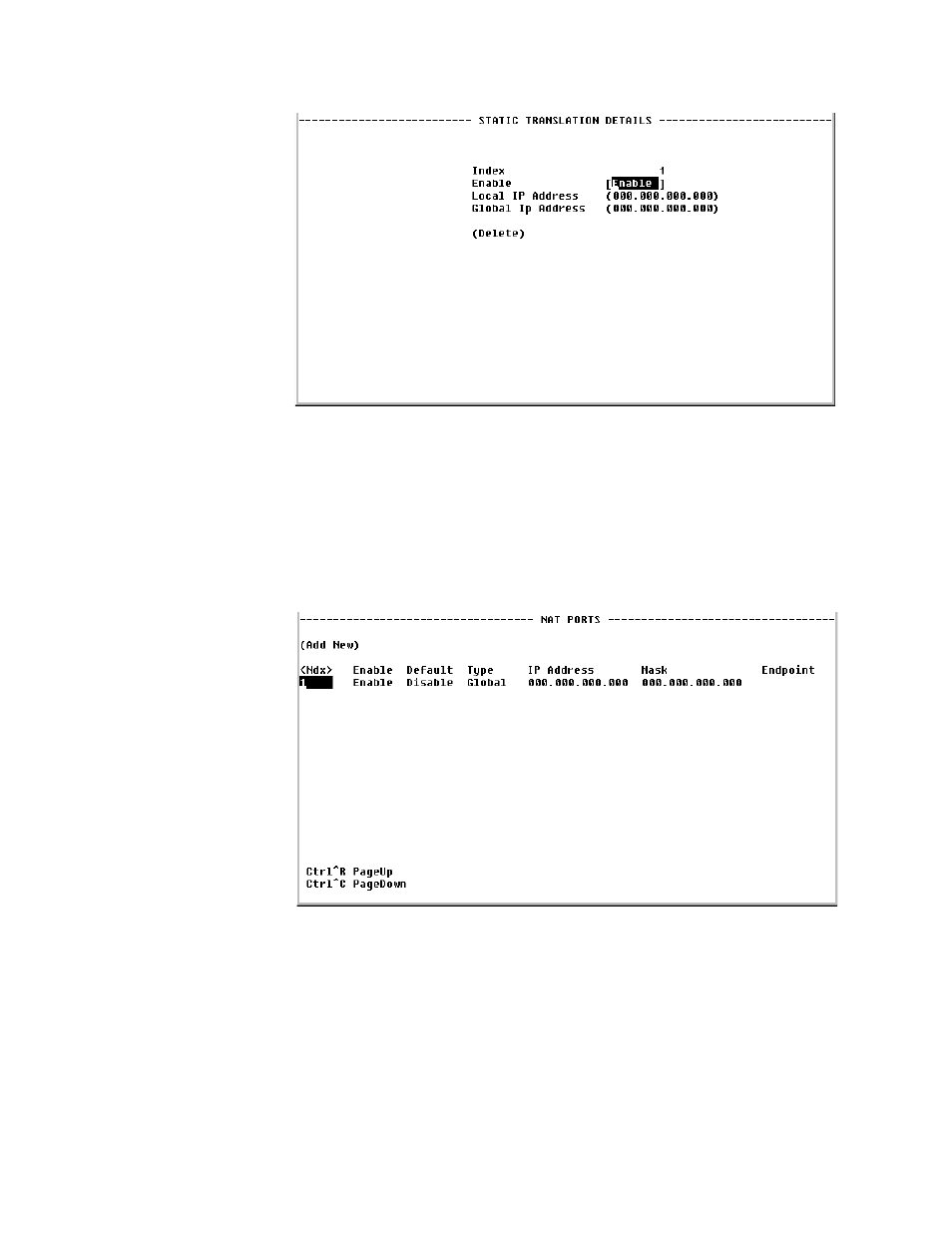

Figure 4.52 Static TCP Translation Details Screen
NAT Ports Screen
The parameters on the NAT Ports screen (Figure 4.53) define the NAT
global/Internet and local/Corporate ports. These parameters are configured in
the NAT Ports Details screen shown in Figure 4.53. Access the NAT Ports
Details screen by selecting the <Ndx> number of the desired port on the NAT
Ports screen and pressing the “Enter” key.
Figure 4.53 NAT Ports Screen
The Endpoint name of the circuit associated with the LAN or WAN port.
Default is LAN for the first port.
E n a b le Enables or disables the NAT port. Default is “Enable.”
D efau lt Forces translation on a specific IP port regardless of the source IP Address. If
Default Translation is set to “Enable,” the packet will never be discarded, but
will always pass through the translation path. Therefore, any packets with a
