SS2R24G4i/SS2R48G4i
6

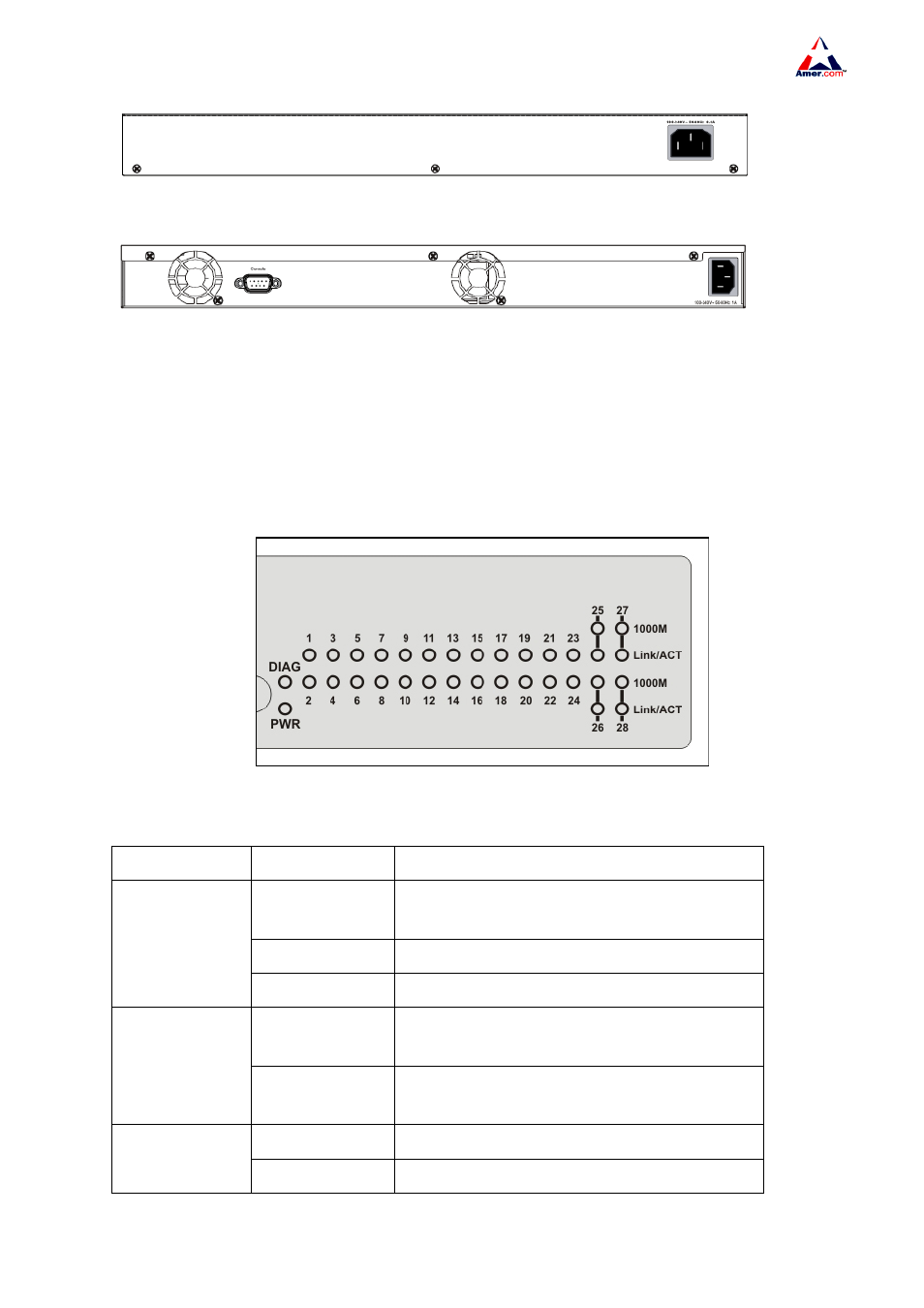

Fig 1-5 SS2R24G4i back panel view
Fig 1-6 SS2R48G4i back panel view
1.4.3 Status LEDs
The LEDs of SS2R24/48G4i switch switch include PWR, DIAG, Link/Act and 1000M. The LEDs
are located on the front panel for easy viewing and shown below
Fig 1-7 SS2R24G4i switch LEDs
Description of LEDs
LED Sstate
Description
Blink
The port is successfully linked and is sending
/receiving data right now.
Off
The state of the port is down.
Link/ACT
On Link
succeeds
On
The corresponding G port is in 1000M
connecting mode.
1000M
indicator lamp
Off
The corresponding G port is in 100M connecting
mode or in down state.
On Power
on
Power
Off Power
off
