335
• Hazard zone effectively isolated from human access with physical barriers and warning signage.
Note: Typical layout concept; not necessarily to scale.

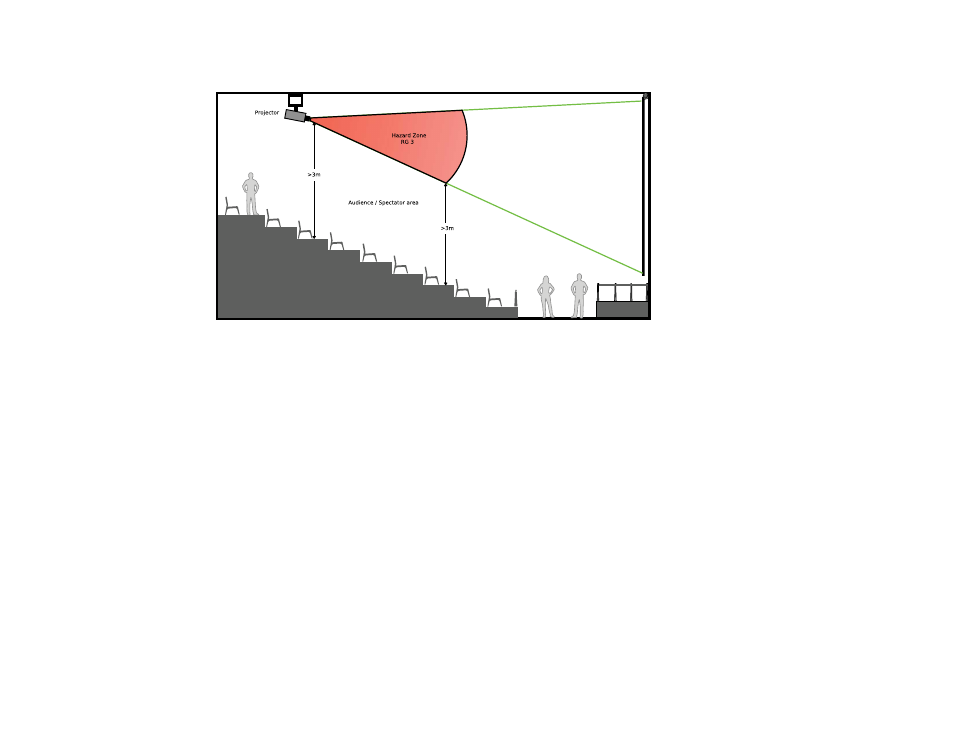

Show - Elevation View - Typical Temporary Cinema Application
• Projector positioned at rear of venue.
• Front projection over audience onto projection surface.
• 8.2 ft (2.5 m) minimum lateral distance from accessible area to Hazard Zone.
• 9.8 ft (3 m) minimum vertical clearance from any accessible floor to bottom plane of Hazard Zone.
• Controlled Area** prevents human access with physical barriers and warning signage except
authorized personnel.
