HP Digital Sender Flow 8500 fn2 Document Capture Workstation User Manual
Page 41
8.

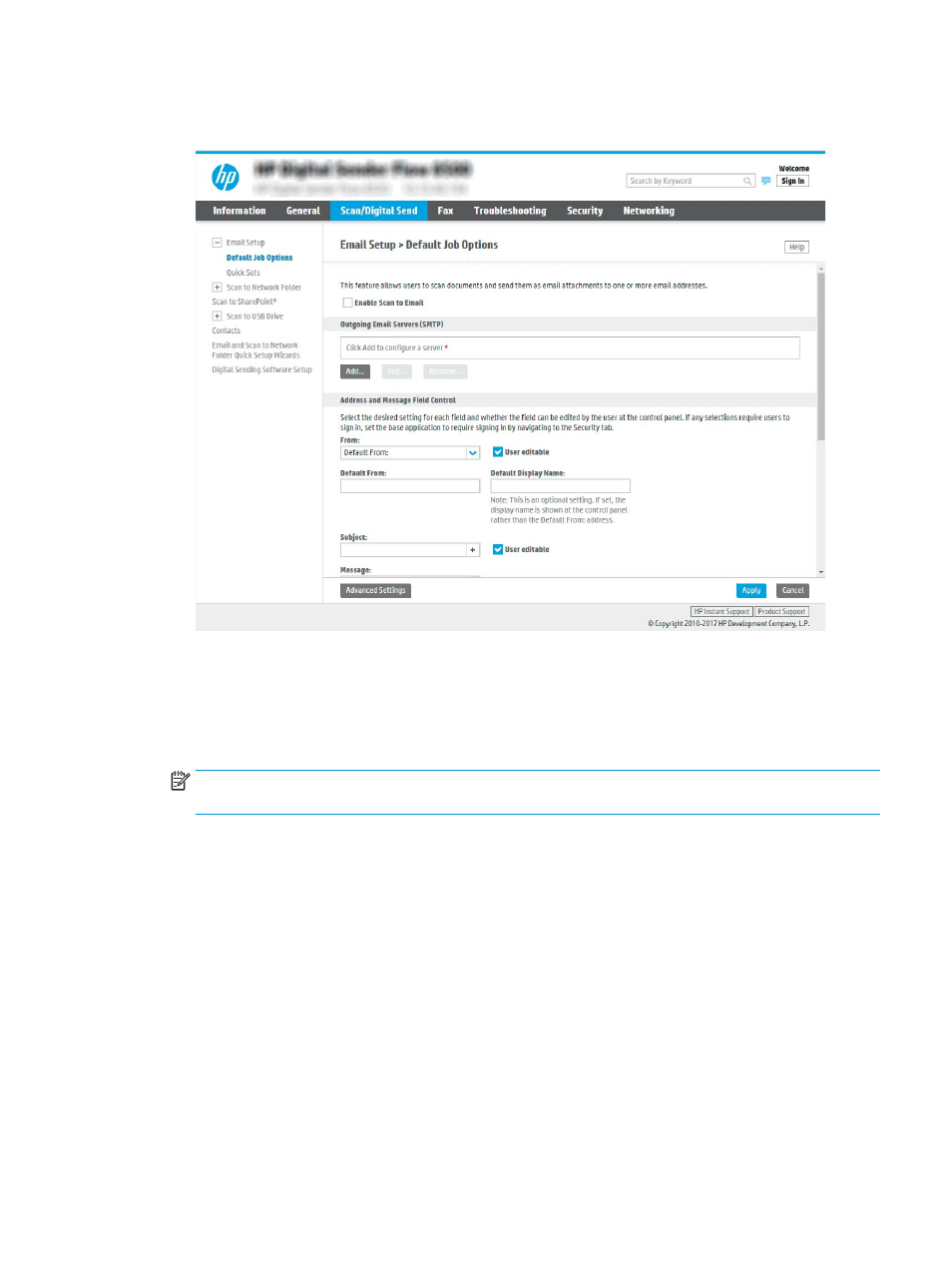

On the Email Setup page, select the Enable Send to Email check box. If this check box is not available, the
feature is unavailable at the product control panel.
9.
In the Outgoing Email Servers (SMTP) area, click Add to start the SMTP wizard.
10.
In the I know my SMTP server address or host name field, type
smtp.onoffice.com
, and then click Next.
11.
On the Set the basic information necessary to connect to the server dialog, in the Port Number field, type
587
.
NOTE:
Some servers have problems sending or receiving emails that are larger than 5 megabytes (MB).
These problems can be prevented by entering a number in Split emails if larger than (MB).
12.
Select the Enable SMTP SSL Protocol check box, and then click Next.
13.
On the Server Authentication Requirements dialog, complete the following information:
a.
Select Server requires authentication.
b.
From the drop-down list, select Always use these credentials
c.
In the Username field, type the Office 365 Outlook email address.
d.
In the Password field, type the Office 365 Outlook account password, and then click Next.
14.
On the Server Usage dialog, choose the product functions that will send email through this SMTP server,
and then click Next.
ENWW
Set up the scanner
31
