Installing under OS/390
AX3000 - User's Manual
127
- Uppercase: each key send the upper character if it is present.
Otherwise, this is the lower character (upper-case letter if possible)
which is sent. <Shift> key acts in the standard way (whatever the
CAPS key). To unlock this mode press the <CAPS> key.
- Caps Lock +: same as 'Shift Lock'. But in addition ALL the keys
supported (including <Esc>, function keys...).
- Euro Coding: Euro symbol support. The three possible values are:
- no: no specific processing is done
- standard: the Euro symbol replaces the international currency
symbol '¤' within the current character set.
- custom: any character can be replaced by the Euro symbol within
the current character set (use the decimal notation to enter the
Euro EBCDIC code).
- Type Ahead Buffer: enable/disable the keyboard buffer.
- . (numpad): the two available values are the dot (.) and the comma (,).
- <Scroll Lock> & <Pause>: enable or disable these two keys
7.1.3 - Connection Properties

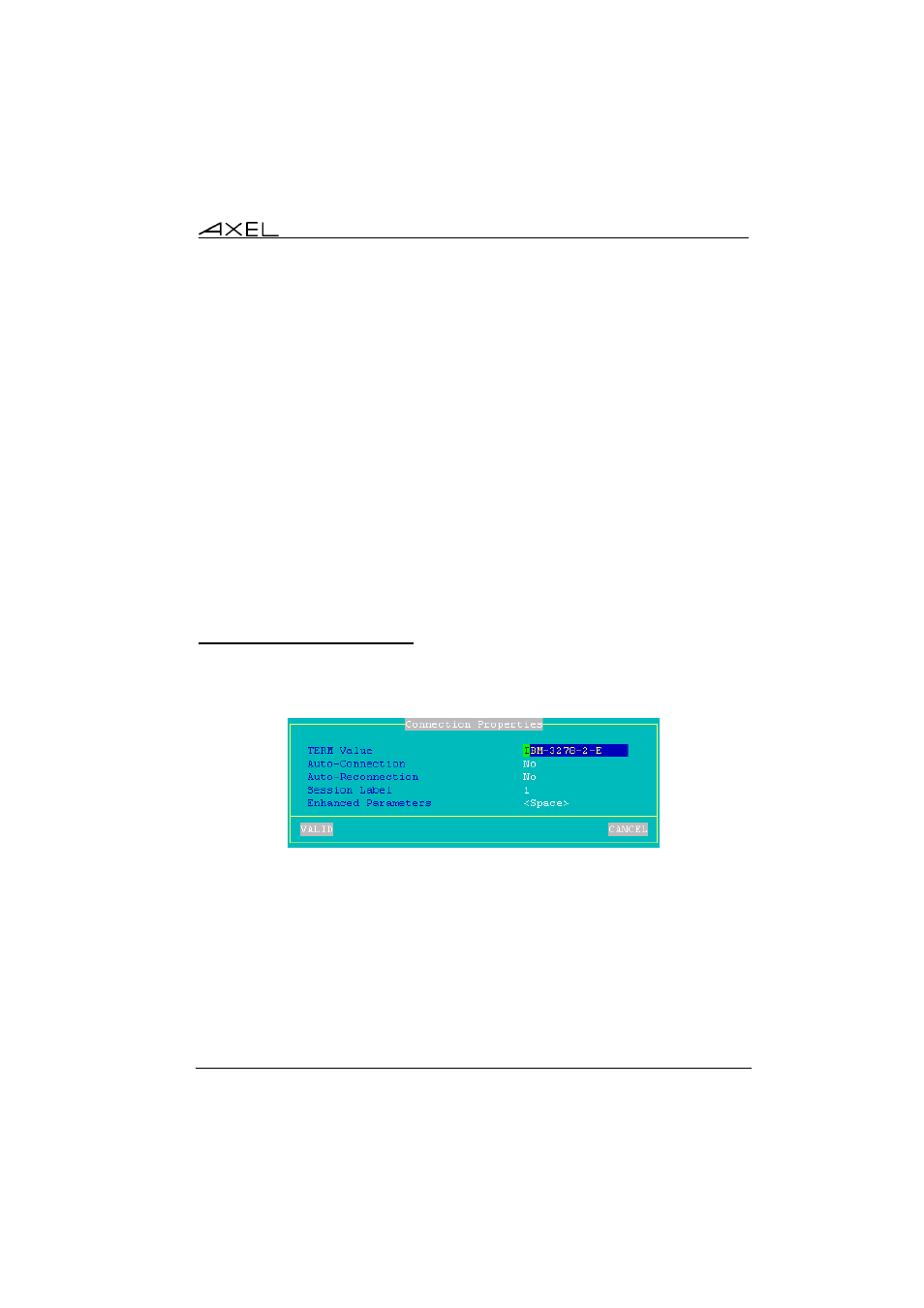

Within the 'Session Profile' box, select 'Connection Properties' and press
<Space>. The following box is displayed:
These parameters are:
- TERM Value: terminal capabilities. Default value is IBM-3278-2-E.
- Auto-Connection: if this parameter is set to 'yes', the connection will be
automatically established when the AX3000 is powered. Otherwise, the
user can press <Alt><Fx> to establish the connection.
- Auto-Reconnection: if this parameter is set to 'yes', a new connection is
automatically established after a disconnection. Otherwise, the user can
press <Alt><Fx> to establish a new connection.
