APPENDIX
T-650 Operations REV. 8/25/2010 110
Appendix D- Narrow Media Guide Assembly (41-105-39)
Supplement to the T-650 Operations Manual
The Narrow Media Guide Assembly is designed to help you feed media that is smaller in width
than the “standard” T-650 Media Guide Assemblies can accommodate.
With this guide in place the following revised specifications apply to the T-650:
Side Tabbing (H2 Only): Minimum media width is reduced to 3.25”.
Applying Stamps: Minimum media width is reduced to 4”.
Tabbing Perpendicular Sides: Minimum media width is reduced to 5.25”
Note: The minimum media width is still 6.5”; when applying a 1.5” tab at center of lead edge. In this
case the Narrow Media Guide Assembly is not used.

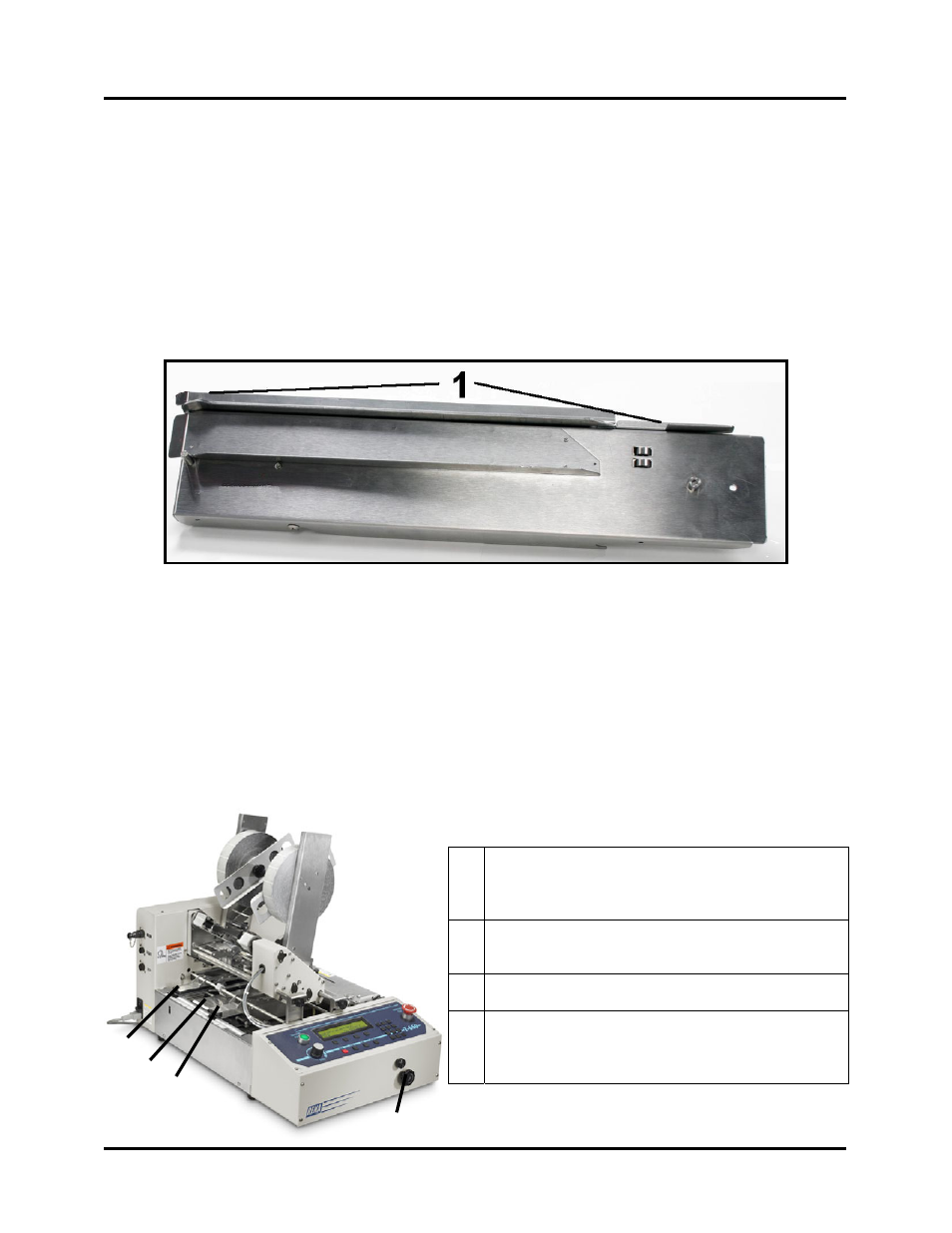

The Narrow Media Guide Assembly includes a removable Side Rail (1), which is held in place by two screws.
ƒ Install the Side Rail (1), on the Narrow Media Guide Assembly, when front tabbing media that is
between 5.25” and 6.5” wide.
Tip: When front tabbing media that is 6.5” or wider; the Narrow Media Guide Assembly is not needed and
should be removed.
ƒ Remove this Side Rail (1), from the Narrow Media Guide Assembly, when side tabbing media that is
3.25” to 5” wide; or applying stamps to media that is 4” to 5” wide.
Tip: When side tabbing or applying stamps to media that is 5” or wider; the Narrow Media Guide Assembly is
not needed and should be removed.
T-650 Reference Image:
5
6
7
14
5 Right Media Guide Assembly – The position of this
guide is adjustable. Make sure tabber transport is
moving at a medium speed before attempting to adjust
the position of this guide.
6 Center Support Plate – This plate contains the slot
used in the process of front tabbing (tabbing at leading
edge).
7 Left Media Guide Assembly - Delivers the media to
the tabbing area. Its position is not adjustable.
14 Media Thickness Adjustment Knob – This knob is
used to raise or lower the Heads and Exit Roller
Assembly when adjusting the tabber to the thickness of
the media.
