MECHANICAL SETUP
13. Set the feeders speed to zero and then turn the Feeder ON.
Using the jog button, feed two pieces of media into the tabber.

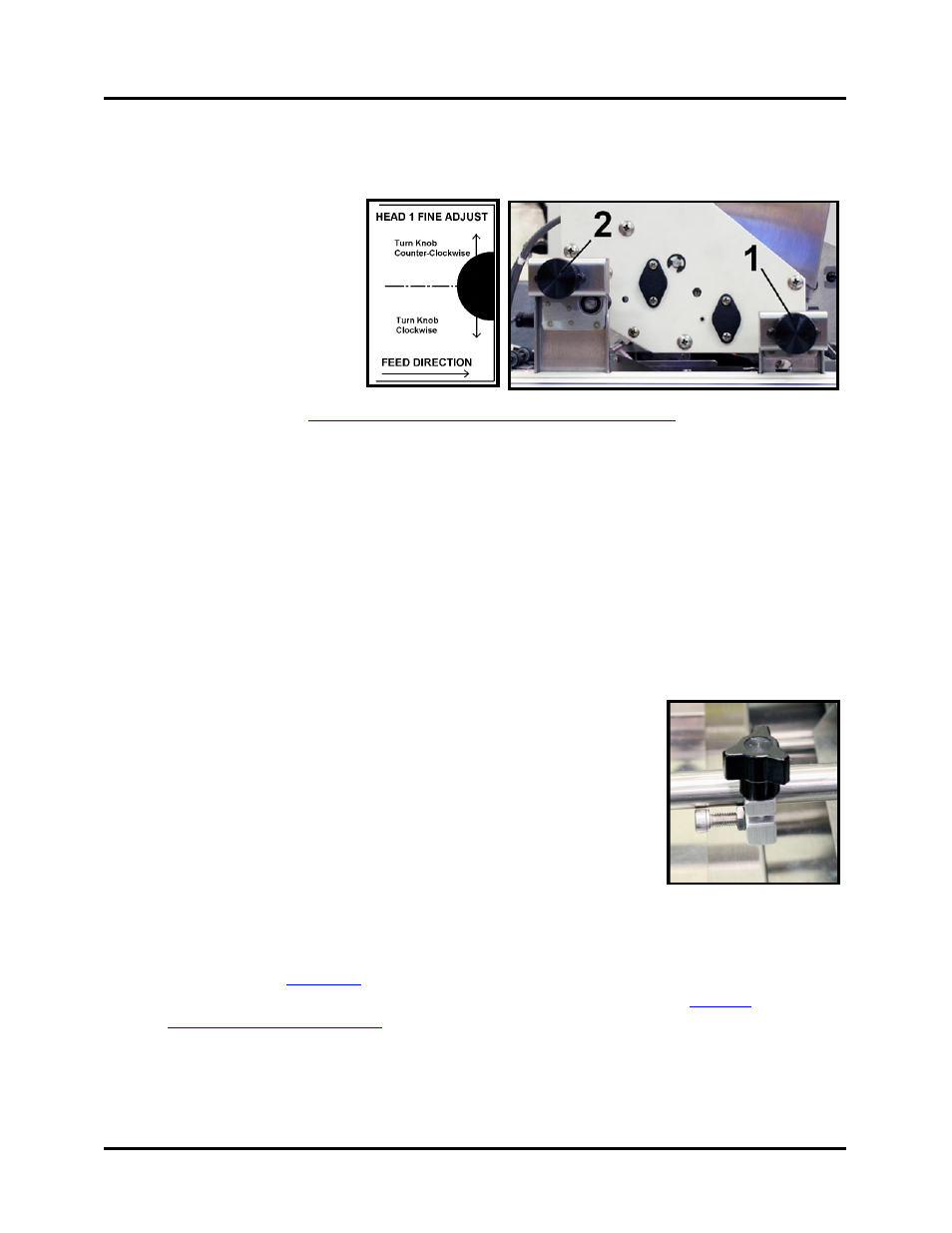

14. Check the positioning of
the tab or tabs on the
second piece.
The tab position for
Head 1 can be fine
tuned using the Head 1
Fine Adjustment Knob
(1
See section titled “
).
nts) Tab Positioning Adjustments (Fine Adjustme ” for more details.
TIP: When front tabbing; the tab must enter the slot in the Center Support Plate. If you
make a change to position of Head 1 you may also need to adjust the position of the
Center Support Plate.
15. When you are satisfied with tab-positioning; set the tabber transport for the desired speed,
using the Speed Control Dial. Then set the speed of the feeder so that there is about a 2
inch gap between pieces; as they feed through the tabber.
Tip: If you want to test piece transport without applying tabs, you can press the STOP
button on the tabber, then press the soft key labeled “Pass-thru” to set the tabber in the
Pass-Thru mode. Press RUN to test the system without applying tabs.
16. Adjust the Head Position Minder against Head 1 and tighten the
knob. This device will mark the location of Head 1 to make the
process of loading new tab rolls easier. When loading new rolls
of tabs onto the heads, it is more convenient if you slide Head 1
close to the operator side of the unit; providing more room
between the heads.
After loading new tab rolls; you can simply slide Head 1 back,
until it meets the Head Position Minder. Head 1 has now been
returned to its original location and you are ready to continue
tabbing.
17. Head 1 setup is complete. If you will only be applying tabs with Head 1 you should
proceed to the “ Operation ” section. NOTE: Please be sure you have disabled Head 2.
If you will be applying tabs with Head 2, proceed to the section titled “Head 2
Adjustment – Side Tabbing” .
