OPERATION
9. Clear Procedure (For tab stock with black space/line between each tab.)
If your tab type is “Opaque”, see Step 8.

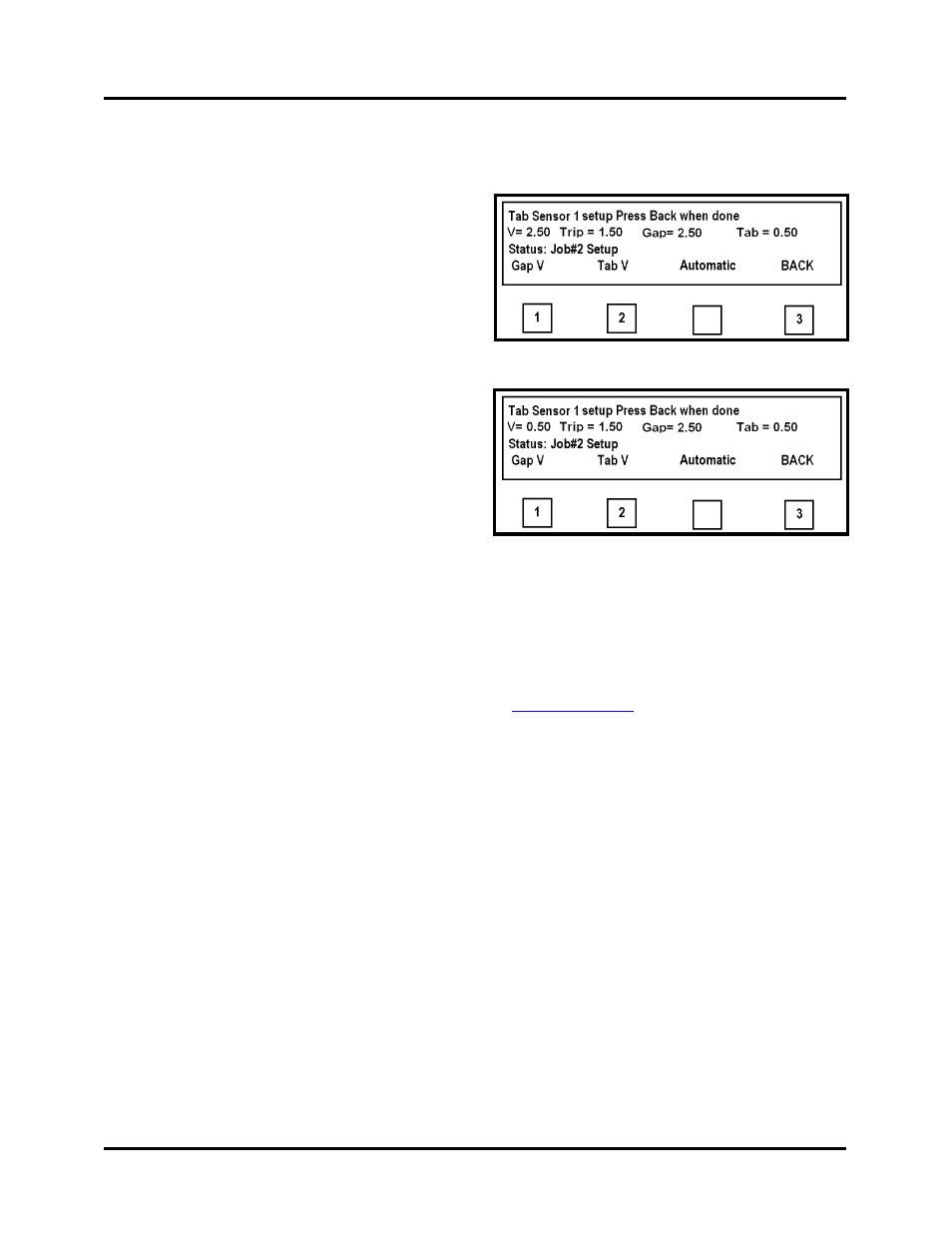

Begin by finding the Gap V or voltage
reading from the space between the tabs.
While carefully monitoring the value
displayed to the right of “V=” (live
voltage reading), slowly move the
tab/stamp web through the sensor until
you obtain the highest voltage reading,
then press the Gap V key (1).
Note: Manually remove any tabs that
peel off during this process.
Continue slowly moving the tab web
through the sensor until you obtain the
lowest voltage reading, then press the
Tab V key (2).
Note: Manually remove any tabs that
peel off during this process.
Tip: In order for the tabber to distinguish between the Tab and Backing, the voltage
difference between the Gap V and Tab V must be 0.80 volts or greater. If the difference
is lower, check/clean the sensor and then repeat the V-Tab adjustment. If the value is
still less then 0.80 volts difference then you may need to use another tab stock that has a
larger density difference.
To check the function of the tab sensor, see “
10. When you are finished, press the BACK key (3) twice.
11. Close and lock the Exit Roller Assembly.
12. Lower the Pressure Roller Release Latch.
13. Test the T-650 for proper operation. If you experience tab advancement or positioning
problems, verify proper threading, transport setup, media length, tab type and tab pitch
settings.
