OAP management
Overview
In OAA, an Open Application Platform (OAP) module and network device are integrated to work as one
device. From the perspective of an SNMP UDP domain-based NMS, however, the device and the OAP
module are separate SNMP agents. They have different software systems and manage their own MIB
objects. To access an SNMP agent, the NMS must obtain the IP address of the management interface on
the agent. By default, the OAP module does not have an IP address, so you need to specify an IP address
for the OAP module in the Web interface.
Configuring a management IP address
1.
Select Device > OAP Management from the navigation tree.
The OAP Management configuration page appears.
2.
Enter an IP address in the Management IP address field.
3.
Click Apply.

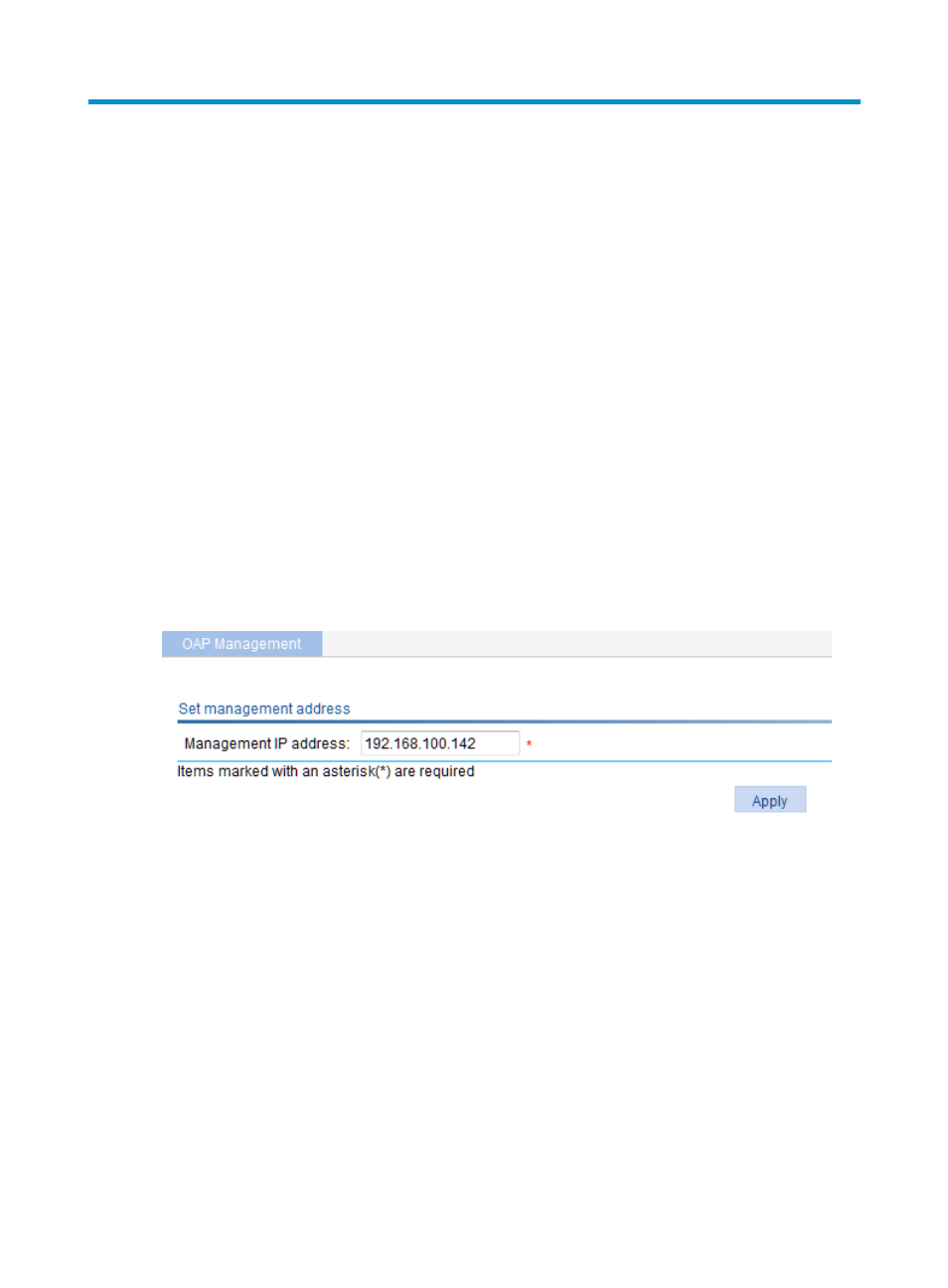

Figure 110 OAP Management configuration page
