Figure 134 Current voice VLAN information
Example for configuring a voice VLAN on a port in
manual voice VLAN assignment mode
Network requirements
As shown in
:
•
Configure VLAN 2 as a voice VLAN that carries only voice traffic.
•
The IP phone connected to hybrid port GigabitEthernet 1/0/1 sends untagged voice traffic.
•
GigabitEthernet 1/0/1 operates in manual voice VLAN assignment mode and allows voice
packets whose source MAC addresses match the OUI addresses specified by OUI address
0011-2200-0000 and mask ffff-ff00-0000 to pass through. The description of the OUI address entry
is test.

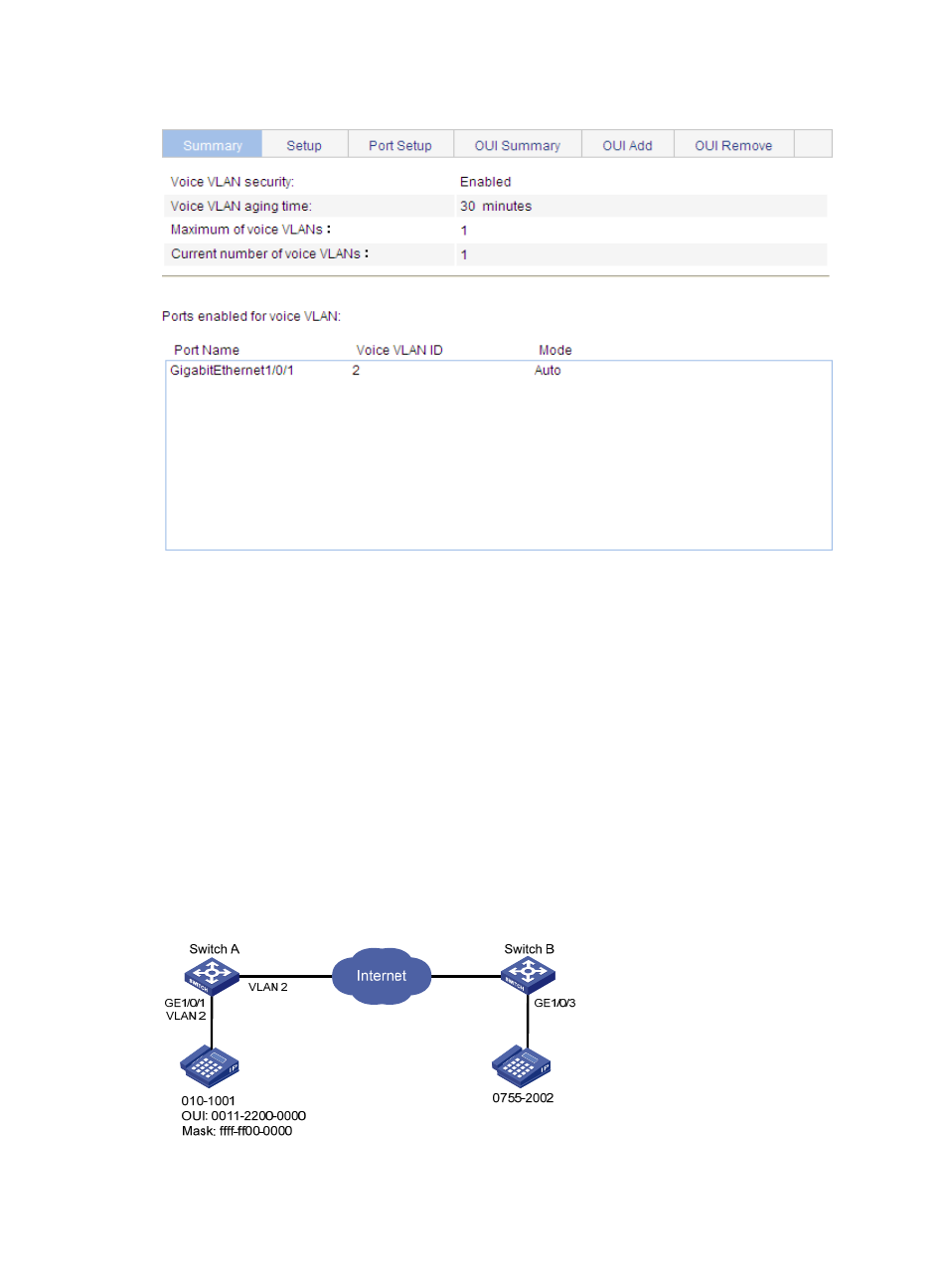

Figure 135 Network diagram
