Motorized Scenic Roller
Parts List

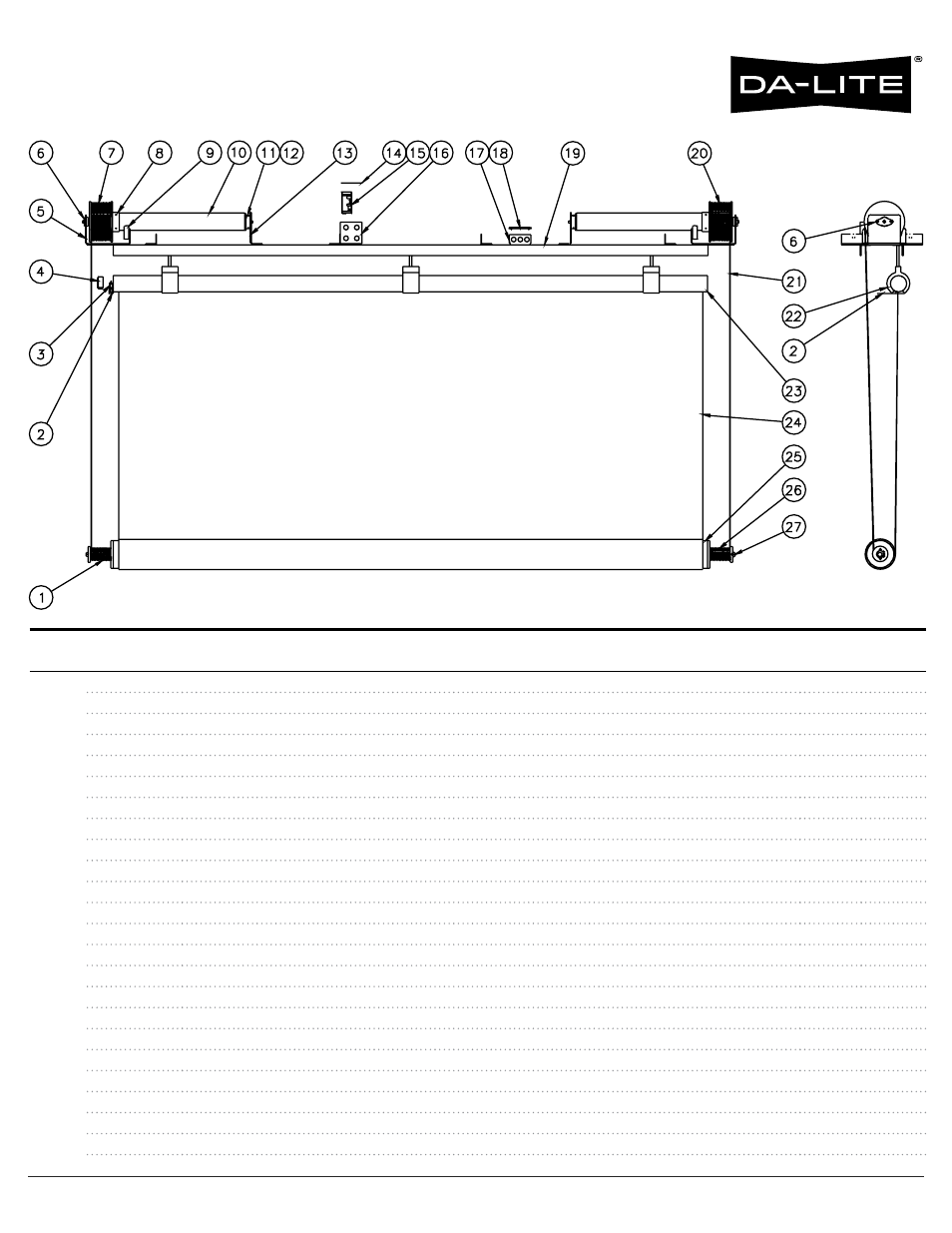

Diagram
Number
Da-Lite
Number Description
Quantity
Required
List Price
Each
1 84020 Pulley, 2 - 1/4" for left side 1 $131.00
2 91661 Microswitch actuator 1 $10.15
3 46773 Microswitch, SPDT 1 $15.75
4 91664 Microswitch cover 1 $5.60
5 84202 Motor end bracket, black 2 $39.00
6 83017 Bearing, flange 2 $50.00
44731 Bolt, hex 3/8-16 x 1" 4 $0.23
44732 Nut, lock hex 3/8-16 4 $0.93
7 84023 Outer left pulley 1 $285.00
8 84025 Pulley, 3" inner 2 $144.00
9 84419 Wheel, 2" hard rubber 4 $7.80
10 36972 Roller tube with holes, 3.25 diam. x 24 1/2" 2 $86.50
11 98800RPL Motor assy., 120v - Stage Right for 18' x 24' and under 1 $681.00
33155RPL Motor assy., 120v - Stage Left for 18' x 24' and under 1 $681.00
31115RPL Motor assy., 240v - Stage Right for 18' x 24' and under 1 $681.00
32459RPL Motor assy., 240v - Stage Left for 18' x 24' and under 1 $681.00
38230RPL Motor assy., 120v - Stage Right for 24' x 24' and over 1 $681.00
38231RPL Motor assy., 120v - Stage Left for 24' x 24' and over 1 $681.00
32733RPL Motor assy., 240v - Stage Right for 24' x 24' and over 1 $681.00
32734RPL Motor assy., 240v - Stage Left for 24' x 24' and over 1 $681.00
33287 Drive wheel/rubber mount for screens purchased before 1/22/04 (not shown) 1 $40.00
12 84412 Universal bracket with spring 2 $11.90
13 84200 Pin end bracket, black 2 $81.80
