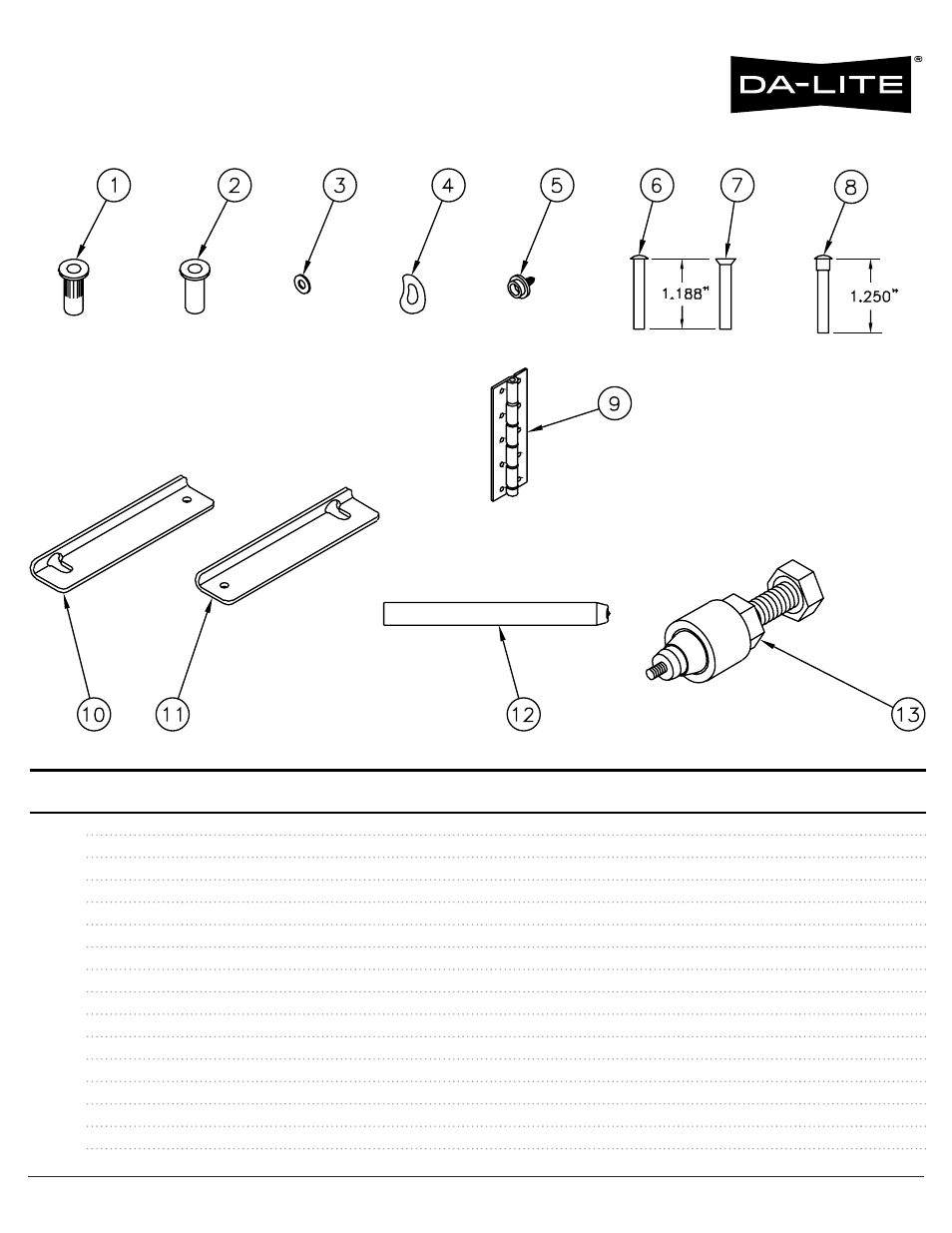

Fast-Fold Truss Repair Kit
Parts List
Diagram
Number
Da-Lite
Number
Description
Quantity
Required
List Price
Each
1
47473
Rivnut, steel 5/16 - 18 long - used to screw speedy cranks to frames
10
$2.80
2
47414
Rivnut, aluminum 5/16-18 long - used on frame for speedy cranks
10
$4.30
3
47351
Washer, flat .437OD x .203ID x .031T - used to attach latches to frame
10
$0.23
4
44829
Washer, spring .563OD x .195ID x .008T - used in leg braces, corner brace and latches
10
$0.23
5
47441
Snap stud - mounts to frame to snap fabric onto frame
20
$0.59
6
44850
Rivet, round .187 x 1.187" long - used to mount hinge to frame
20
$0.26
7
44849
Rivet, flat .187 x 1.187" long - used to mount hinge to frame
20
$0.35
8
47350
Rivet, shoulder .184 x 1.25" long - mounts to frame to hook latch
10
$0.35
9
47778
Piano hinge, 5 - 3/4" long - used on frames and legs
5
$11.25
10
47358
Right latch - used on frames
5
$3.00
11
47361
Left latch - used on frames
5
$3.00
12
47206
Rivet setting tool
1
$200.00
13
99210
Rivnut tool
1
$301.00
For complete repair kit, order as follows: (includes #1-17)
37316
Fast-Fold Truss Repair Kit
1
$602.00
