Heavy Duty Fast-Fold Deluxe Repair Kit

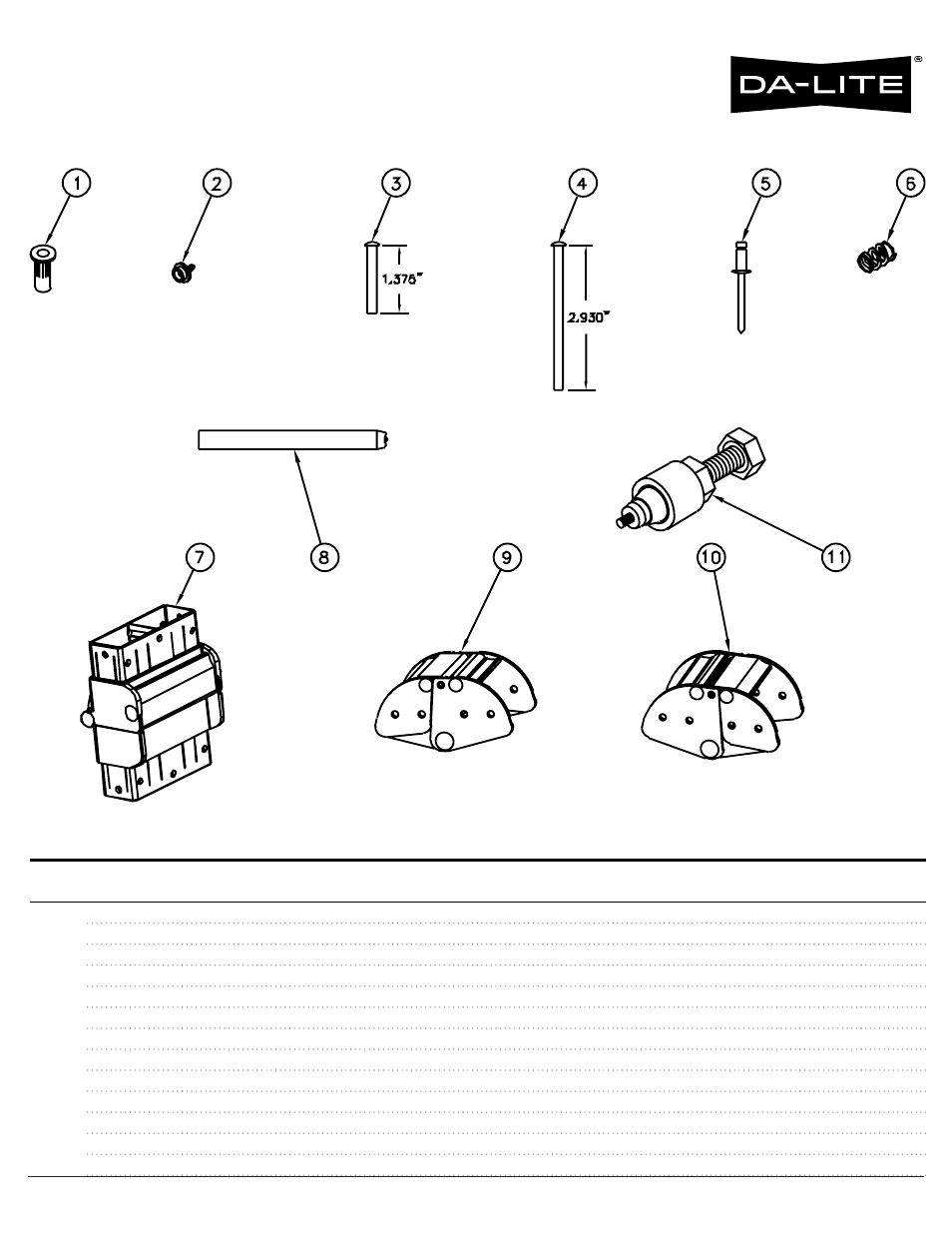

Parts List
Diagram
Number
Da-Lite
Number
Description
Quantity
Required
List Price
Each
1
47473
Rivnut, steel 5/16 - 18 long - used to screw speedy cranks to frames
10
$2.80
2
47441
Snap stud - mounts to frame to snap fabric onto frame
20
$0.59
3
44830
Rivet, .187 x 1.375" long - used to mount hinge/latch assy. to frame
20
$0.26
4
91777
Rivet, .184 x 2.93" long - used to mount the latch assy. to the legs
16
$0.90
5
48570
Pop rivet - used to mount hinge/latch assy. casting to the frame
8
$0.32
6
88806
Spring - used in latch assy., beneath the blue latch
20
$0.70
7
37317
Hinge/latch assy. casting - used on the frame
2
$47.70
8
47206
Rivet setting tool
1
$200.00
9
99148
Left latch assy., used on legs
2
$43.40
10
99150
Right latch assy., used on legs
2
$43.40
11
47207
Rivnut tool
1
$184.00
For complete HD Deluxe repair kit, order as follows: (includes #1-11)
36974
Fast-Fold HD Deluxe Repair Kit
1
$602.00
