OSPF Configuration Examples
These examples only cover commands for OSPF configuration.
Configuring OSPF Basic Functions
Network requirements
As shown in the following figure, all switches run OSPF. The AS is split into three areas, in which, AC
and Switch A act as ABRs to forward routing information between areas.
After configuration, all devices can learn routes to every network segment in the AS.
Network diagram

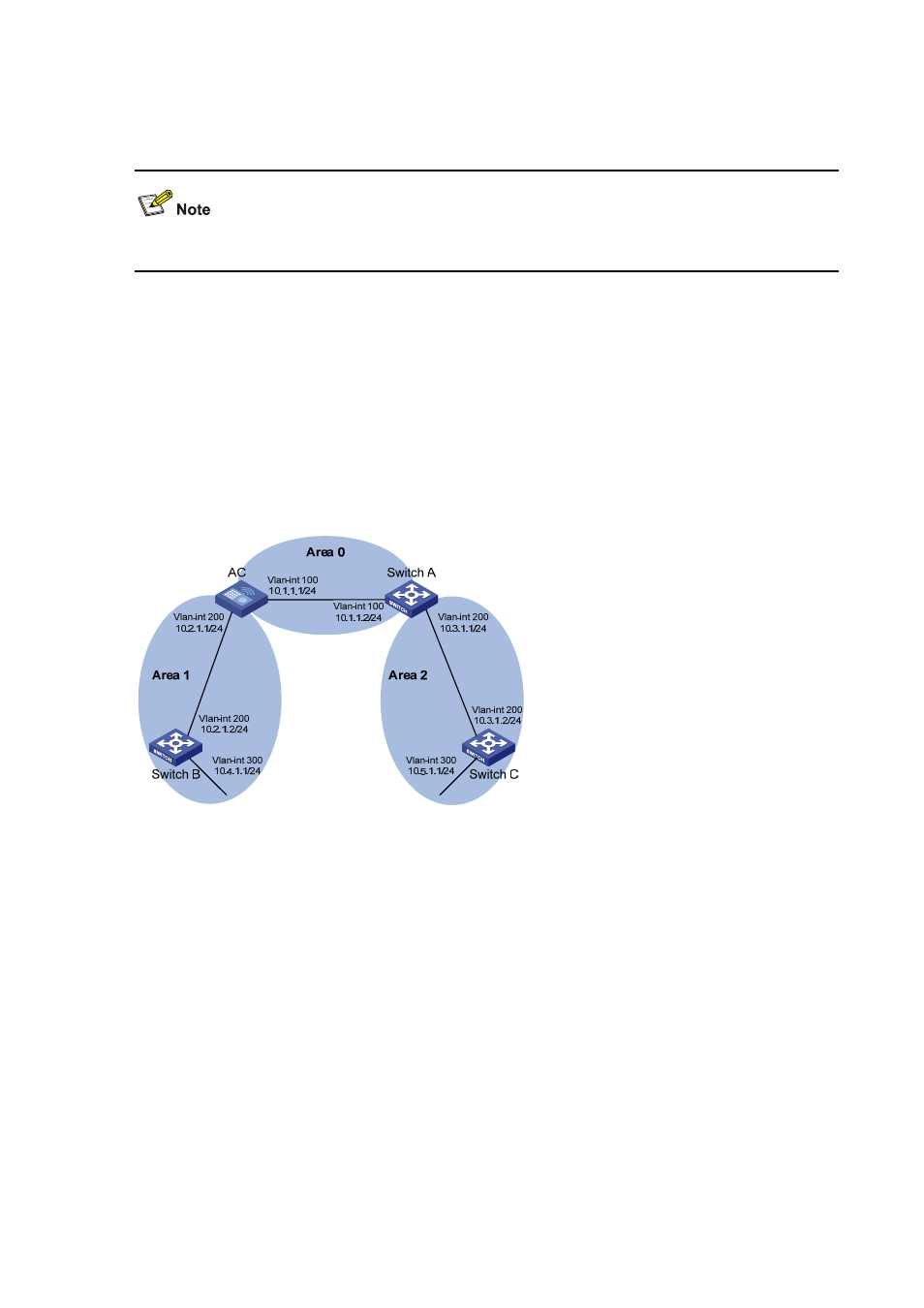

Figure 25-21 Network diagram for OSPF basic configuration
Configuration procedure
1) Configure IP addresses for interfaces (omitted)
2) Configure OSPF basic functions
# Configure AC.
<AC> system-view
[AC] ospf
[AC-ospf-1] area 0
[AC-ospf-1-area-0.0.0.0] network 10.1.1.0 0.0.0.255
[AC-ospf-1-area-0.0.0.0] quit
[AC-ospf-1] area 1
[AC-ospf-1-area-0.0.0.1] network 10.2.1.0 0.0.0.255
[AC-ospf-1-area-0.0.0.1] quit
[AC-ospf-1] quit
# Configure Switch A.
<SwitchA> system-view
