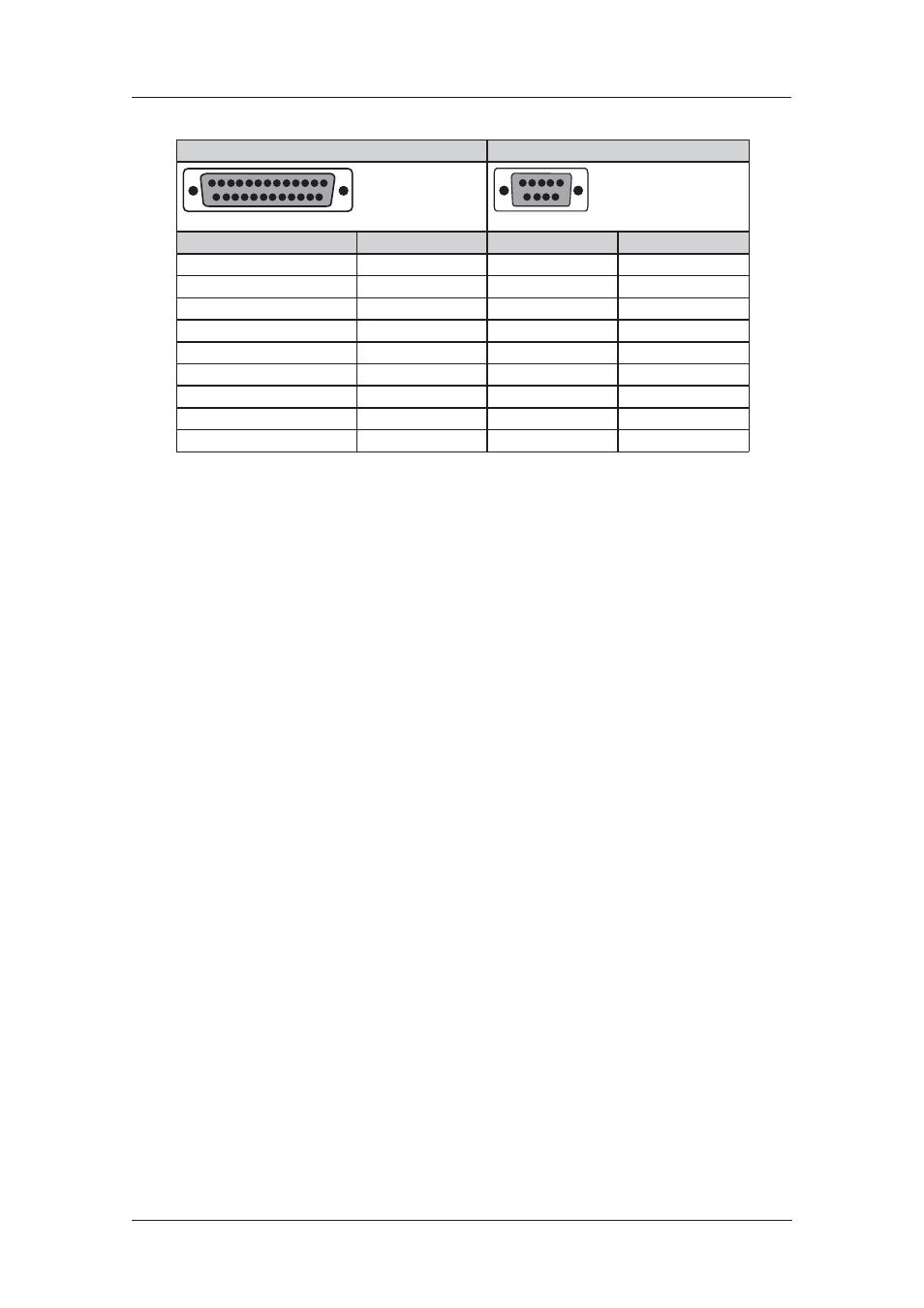

25-way D - Westermo Side 9-way D
13
25 14
1 1
6 9
5
Signal Pin # Pin # Signal
TxD 2 3 TxD
RxD 3 2 RxD
RTS 4 7 RTS
CTS 5 8 CTS
DSR 6 6 DSR
GND 7 5 GND
DCD 8 1 DCD
DTR 20 4 DTR
RING 22 9 RING
