6 TURN PLUS
254

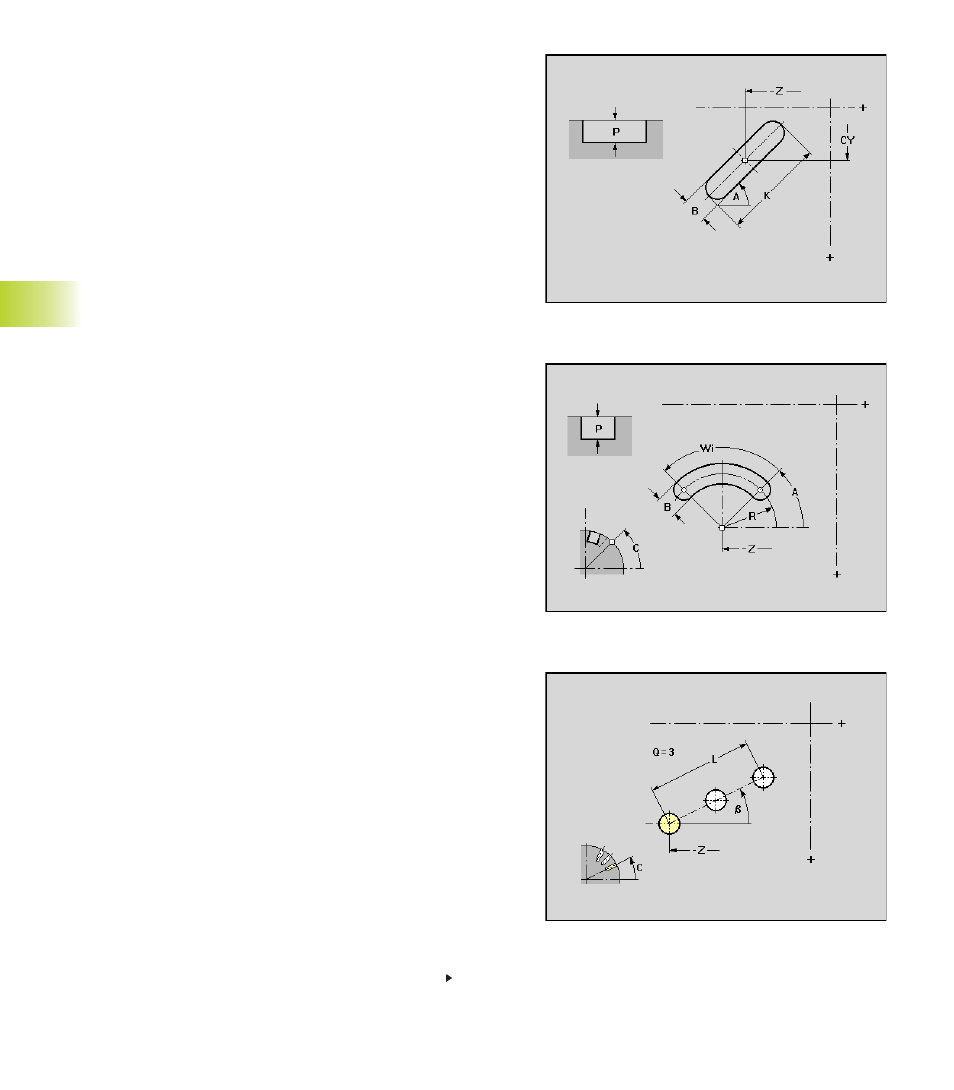

Circular slot
Parameters
Z:
Center of figure
CY:
Center of the figure - angle as ”linear dimension”
C:
Center of figure - angle
A:
Starting angle (starting point) of the slot (reference: Z axis)
W:
End angle (end point) of the slot (reference: Z axis)
R:
Curvature radius (reference: center point path of the slot)
B:
Slot width
P:
Depth of the figure
Linear slot
Parameters
Z:
Center of figure
CY:
Center of the figure - angle as ”linear dimension”
C:
Center of figure - angle
A:
Angle to longitudinal axis of slot (reference: Z-axis)
K:
Slot length
B:
Slot width
P:
Depth of the figure
6.6 C-Axis Contours
Continued
Linear hole pattern, linear figure pattern
Parameters
Z:
Starting point of pattern
CY:
Starting point of pattern – angle as linear dimension
C:
Starting point of pattern – angle
Q:
Number of figures
K:
End point of pattern
Ki:
Distance between the figures (in Z direction)
CYE:
End point of pattern – angle as ”linear dimension”
CYi:
Distance between figures – as ”linear dimension”
