Inspection mode – continued
The ”Scrambled takeoff on restart?” dialog box
appears; Enter Yes/No, and press OK.
<
Scrambled takeoff – Yes:
The ”Start from interruption point (IP) / before
interruption point” dialog box appears.
■ From UP: No further dialog box.
■ Before UP: Specify the distance from the point of
interruption to the starting point of the tool (Dialog
”Distance from interruption point”).
The return motion program positions the tool on/
before the interruption point and continues the
program without stopping.
The inspection cycle has been completed.
Scrambled takeoff – NO:
The ”Start from interruption point (IP) / before
interruption point” dialog box appears.
■ From UP: No further dialog box.
■ Before UP: Specify the distance from the point of
interruption to the starting point of the tool (Dialog
”Distance from interruption point”).
The return motion program positions the tool on/
before the interruption point and stops.
Application example: Cutting edge has been
replaced.
<
Select ”Insp(ection)” again.
<

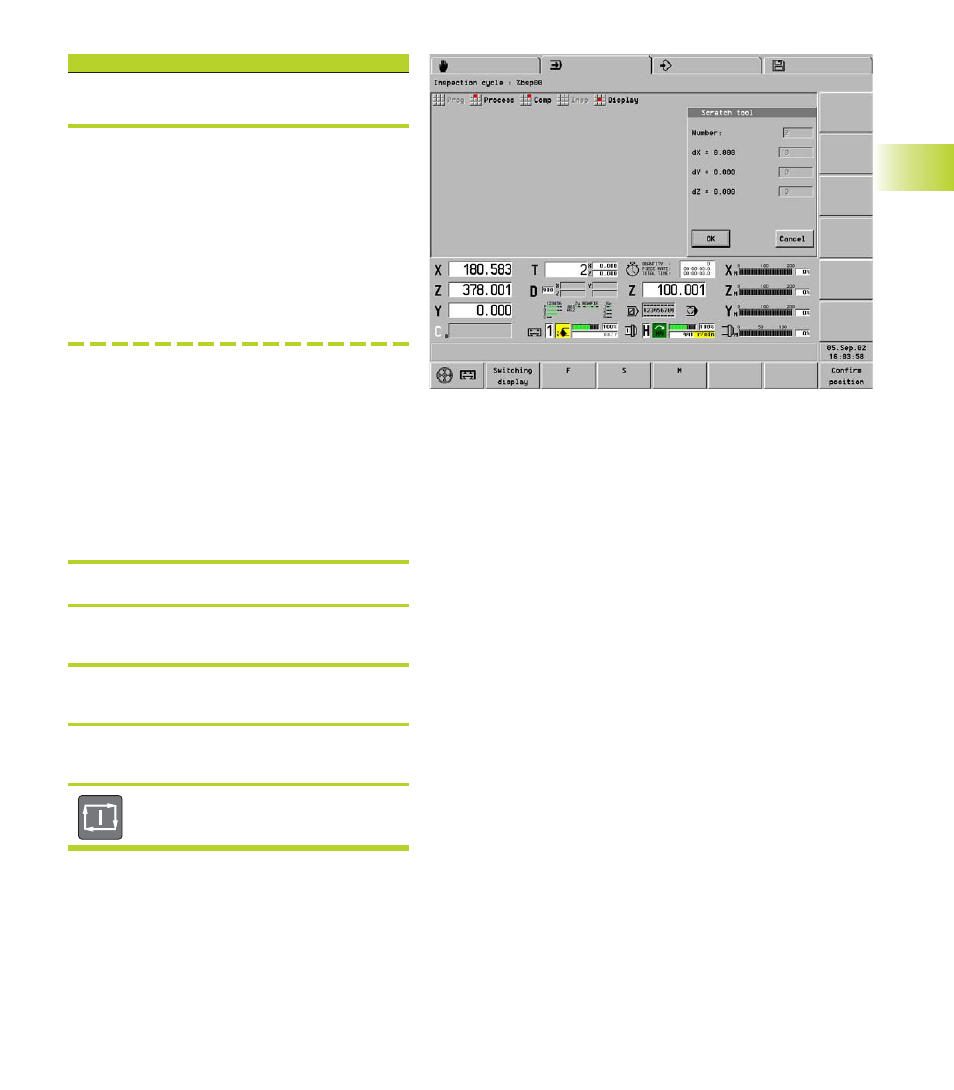

The ”Scratch with tool” dialog box opens (for
information)
<
Assign the handwheel to the X/Z axis and
”scratch” the workpiece.
<
Press ”Accept value” to save the compensation
values defined per handwheel.
<
The program run continues
