HEIDENHAIN CNC PILOT 4290 61
Soft keys
Change to the simulation operating mode
Change to the TURN PLUS mode
Switch the NC program
Switch the NC program
Switch the editing window
Select full-size window (one editing window)
Select double or triple window
Activate the graphics

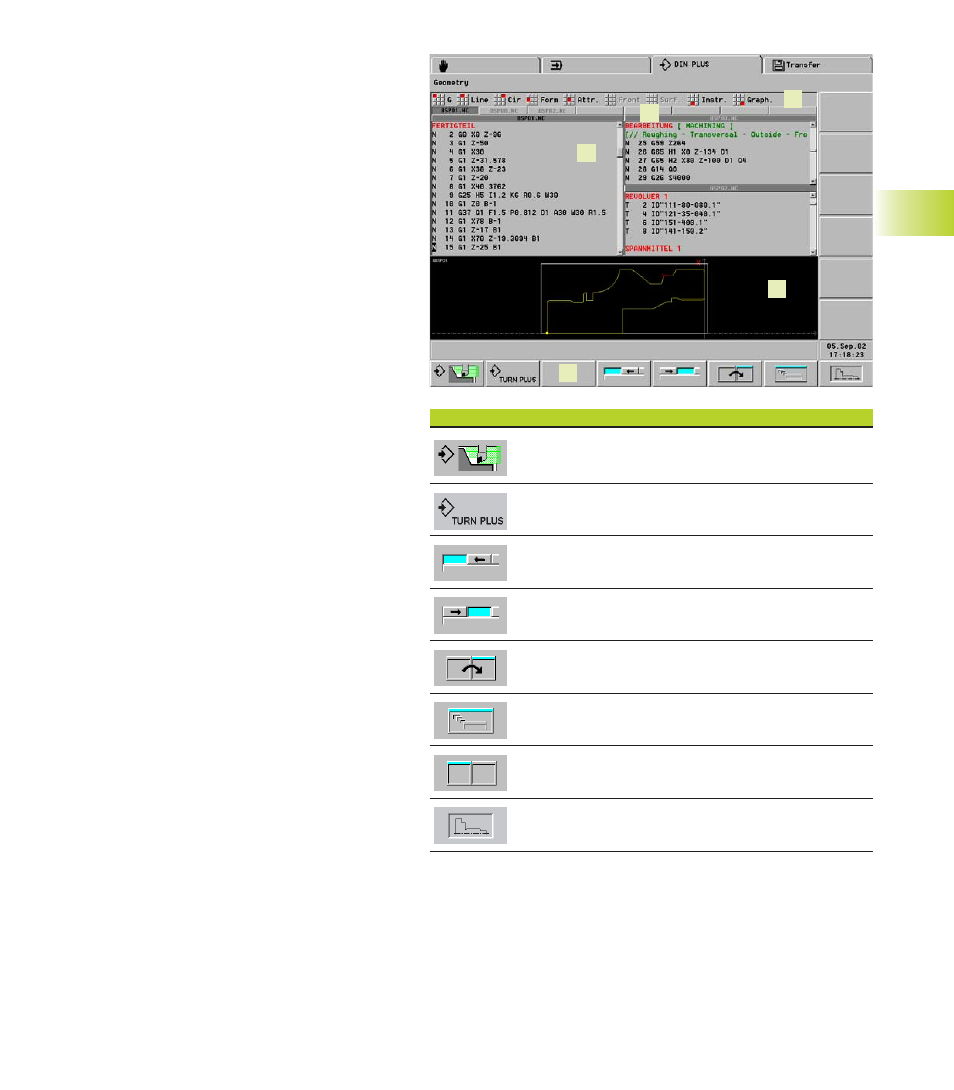

4.1.2 DIN PLUS Screen
1 Menu bar
2 Display of loaded NC programs. The selected
program is marked.
3 Full, double or triple editing window. The selected
window is marked.
4 Contour display (or machine display)
5 Soft keys
Parallel editing
You can edit up to eight NC program/subprograms in
parallel. The CNC PILOT displays NC programs as
desired in either a full, double, or triple window.
Main menus and submenus
The functions of the DIN PLUS editor are contained in
the main menu and various submenus. The submenus
can be called by
■ Selecting the desired menu items
■ Positioning the cursor in the program section
Soft keys
Soft keys are available for fast switching to
”neighboring operating modes” for changing the
editing window and for activating the graphic.
4.1 DIN Pr
ogr
amming
1
2
3
4
5
