HEIDENHAIN CNC PILOT 4290 381
8.1 T
ool
D
atabase
Milling cutter parameters
Parameters in dialog box 1 G S TP
ID: Identification number of tool • • •
X, Z, Y dim. (xe, ze, ye): Setting dimensions • – –
Diamet. (df): Cutter diameter, end • • •
Diamet. (d1): Cutter diameter • • •
Width (fb): Cutter width • • •
Angle (fw): Cutter angle • • •
Dep.imm. (et): Maximum infeed depth • • –
Pos.ang. (rw): Position angle • • –
X, Z, Y comp. (DX, DZ, DY): Compensation values
(maximum value +/– 10 mm)
• – –
D corr. (DD): Compensation value for cutter diameter • – –
Direc.rot.: Direction of spindle rotation • – •
Cut.len.(sl): Cutting length • • •
Number of teeth of milling cutter • – •
Continued

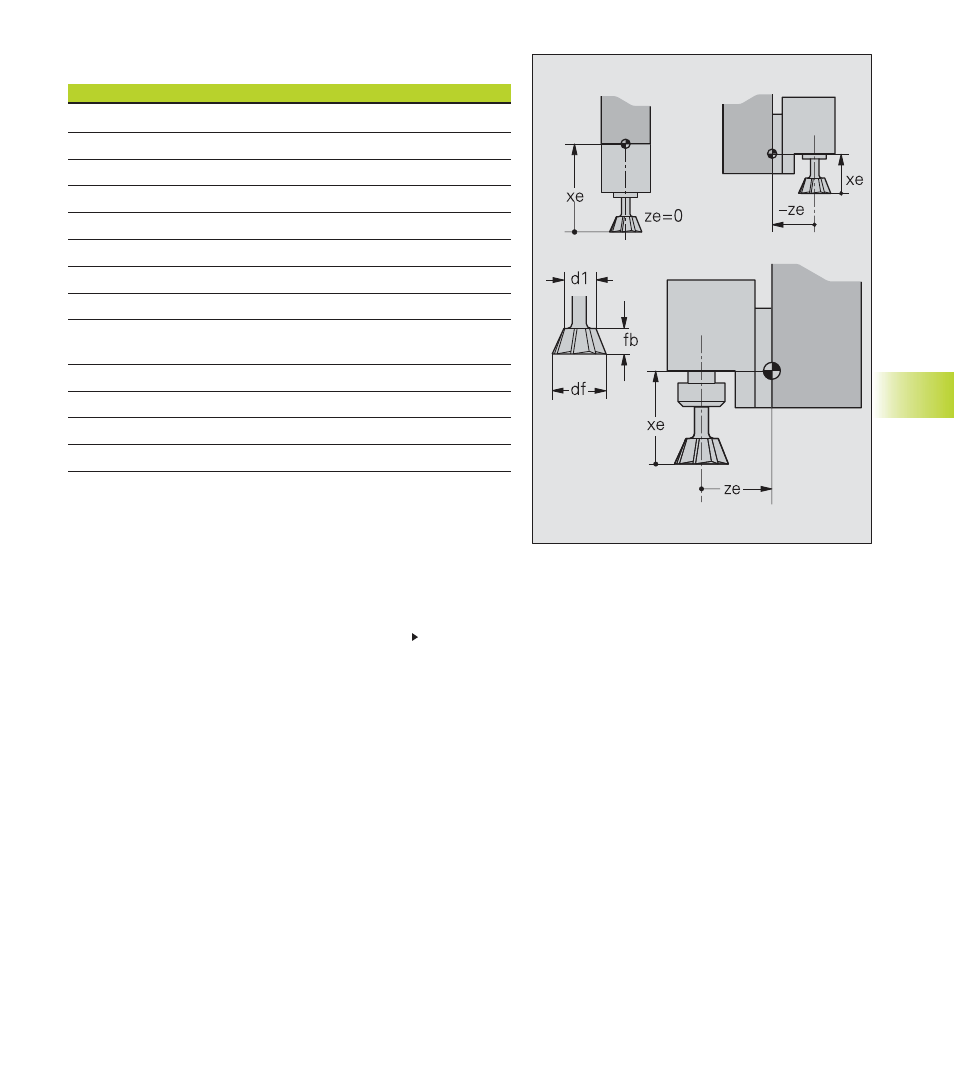

Example: Tool type 611
