6 TURN PLUS 280
Chucking a workpiece at the tailstock

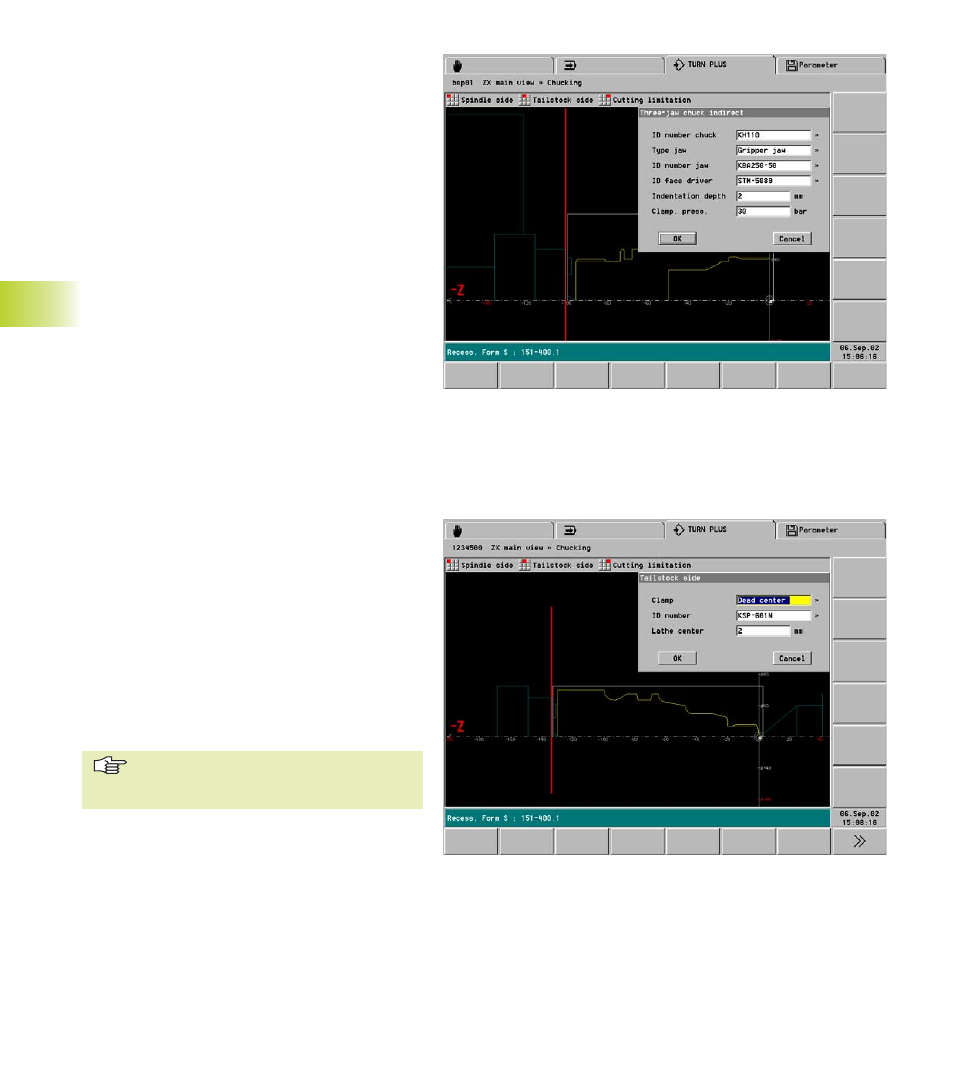

Menu item: Tailstock side
Parameters
Chucking: Select the type of chucking equipment
■ Dead center
■ Lathe center
■ Centering taper
Identification number of chucking equipment
Centering depth: Depth by which the chucking
equipment indents the material (TURN PLUS
uses this value to position the graphic
representing the chucking equipment).
If you clamp the workpiece at the spindle
and the tailstock, TURN PLUS assumes
that a shaft is machined.
Parameters for ”Three-jaw chuck indirect” (face
driver with jaws):
Chuck identification number
Jaw type: Select the jaw type.
Jaw identification number
Identification number of face driver
Indentation depth: Approximate depth by which the
claws indent the material (TURN PLUS uses
this value to position the graphic
representing the face driver).
Clamping pressure: is transferred to the PROGRAM
HEAD – TURN PLUS does not evaluate the
parameter.
