HEIDENHAIN CNC PILOT 4290 379
8.1 T
ool
D
atabase

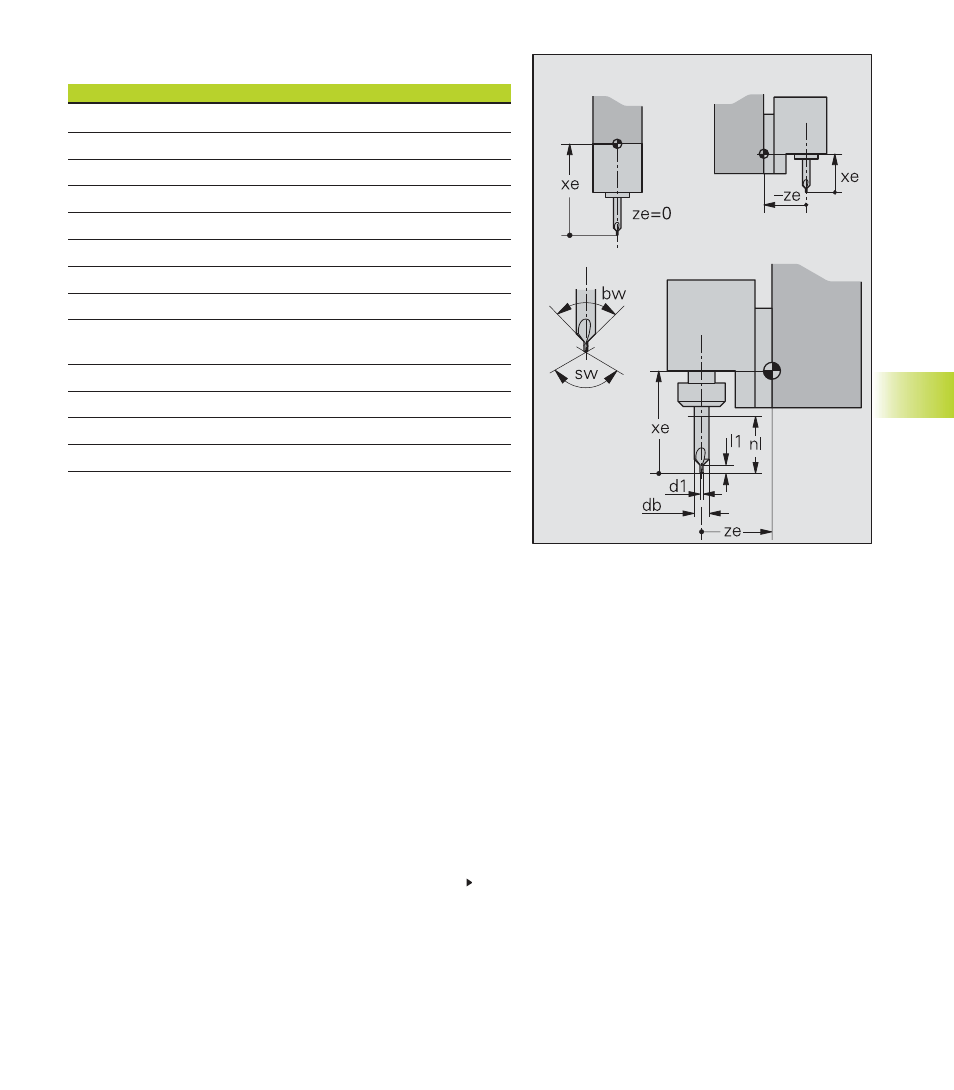

Example: Tool type 311
Drilling tool parameters
Parameters of dialog box 1 G S TP
ID: Identification number of tool • • •
X, Z, Y dim. (xe, ze, ye): Setting dimensions • – –
Diamet. (db): Drill diameter • • •
Bor.ang. (bw): Drill angle • • •
Point angle W (sw): Point angle • • •
Shnk.di. (d1): Shank diameter • • •
Shnk.ln. (l1): Shank length • • •
Pos.ang. (rw): Position angle • • –
X, Z, Y comp. (DX, DZ, DY): Compensation values
(maximum value +/– 10 mm)
• – –
Direc.rot.: Direction of spindle rotation • – •
Usab.lg.(nl): Usable length of drill – – •
Type of tap: See fixed-word list *1 – *1
Strtlen (al): Length of first cut • • •
Fixed-word list for ”Tap type”:
■ 0: Undefined
■ 11: Metric
■ 12: Fine thread
■ 13: Whitworth thread
■ 14: Pipe thread
■ 15: UNC
■ 16: UNF
■ 17: PG
■ 18: NPT
■ 19: Tetragonal thread
■ 20: Other threads
*1:The ”Type of tap” parameter is used for determining the thread
parameters; the AWG accounts for this parameter when selecting a
tool.
Continued
