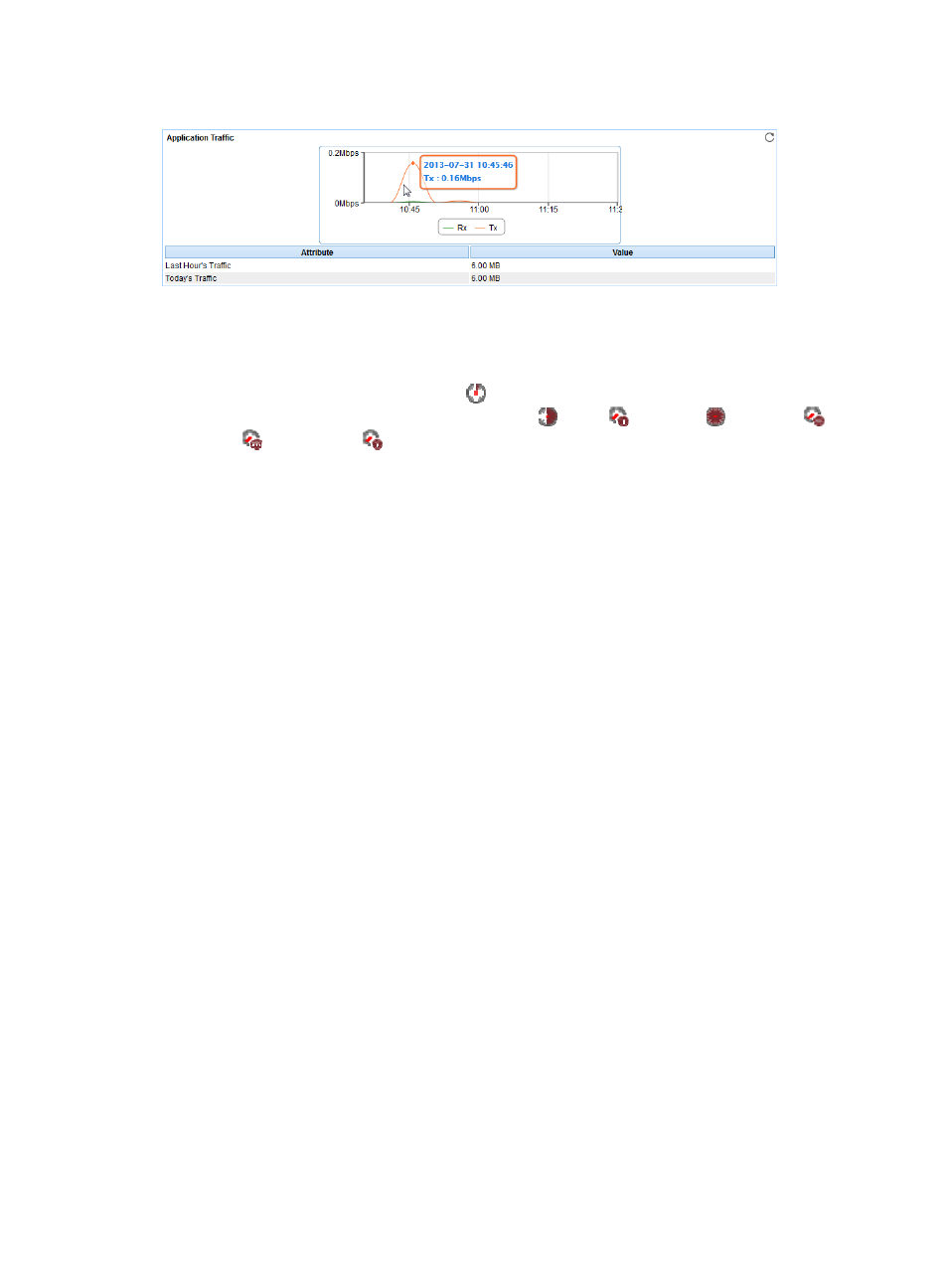

Figure 342 Application Traffic area layout
Application Traffic area fields:
•
Application Traffic trend graph—Shows changes of inbound and outbound traffic over the last 1
hour. The green curve shows the inbound traffic and the orange the outbound traffic. To change the
report period, click the Last 1 Hour icon
on the upper right of the graph, and then select an icon
from the list. Available options include Last 6 Hours
, Today
, Yesterday
, This Week
, This
Month
, and This Year
. Point to a spot on the curve to view the application traffic at the specific
time point. Click Rx or Tx to display or hide the corresponding monitor index in the graph.
•
Attribute/Value—Monitor index name and data that was obtained when APM last polled the PHP
server.
{
Last Hour's Traffic—Total traffic received and sent by the PHP server over the last 1 hour.
{
Today's Traffic—Total traffic received and sent by the PHP server since 00:00 today.
