Boeckeler Instruments, Inc. Pointmaker CPN-5000 Color Video Marker - Page 139
Appendix Quick Reference for Devices
Q
uiCk
r
eFerenCe For
d
eviCes
This section contains tables for quick reference to the device commands for the
CPN-5000. Tables are arranged alphabetically by function.
The list below outlines the devices covered in this section.
• DTU-30 Digitizing Tablet
• KB-30 Keyboard
• Touch Screen / Whiteboard
• Mouse Devices
Quick Reference for Digitizing Tablet

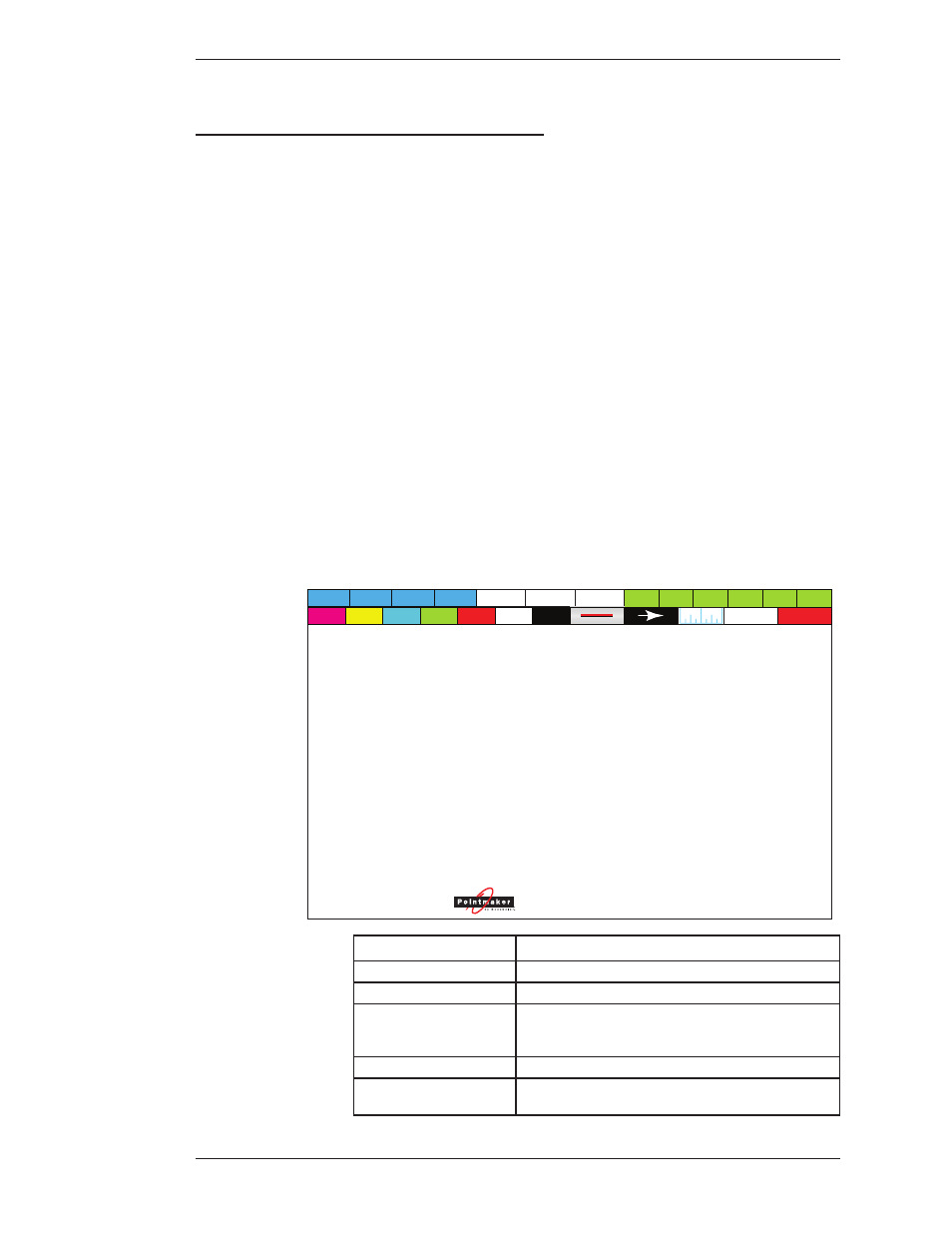

The commands in the table following this sample template are for the DTU-30
digitizing tablet when used with the Pointmaker CPN-5000. The template design
is updated periodically. Yours may not look exactly the same. If a function you
want is not listed in this table, then you must select that function in the menu
system.
Comp 1 Comp 2 DVI-D VGA Y/C 1 Y/C 2
F r e e z e WhiteBoard
Undo Control Clear
CPN-5000 Presenter
G e t P r i n t S a v e S e n d
Marker
Brightness
C
oMMand
o
peration
Anchor a Marker Click Barrel Button when marker is in desired position.
Brightness, Change (Presenter Template only) Click pen tip on brightness scale, left
Chalkboard Mode Click pen tip on Chalkboard icon. To return to Video Source
background, click on Video icon. This option is not available on
Broadcaster template.
Clear Markers Click pen tip on Clear icon.
Color, Change Marker Click Tip Button on Menu Strip icon; in menu system, click tip
button while cursor is over desired option.
