Pointmaker CPN-5000 Color Video Marker - Page 17
Section Two:Installation
General Installation
HDMI Connectors
If connecting HDMI video:
1. Using a HDMI video cable, connect the Pointmaker HDMI INPUT
connector to a HDMI output connector on a HDMI video source.
HDMI Out SPDIF Out
DVI-I Out
Network
Keyboard
USB
COMM. 1
COMM. 2
Power
DVI-I 1 In
VGA In
Comp 1 /
Y In
Comp 2 /
C In
DVI-I 2 In
HDMI In
+24VDC
2.5A
1
2

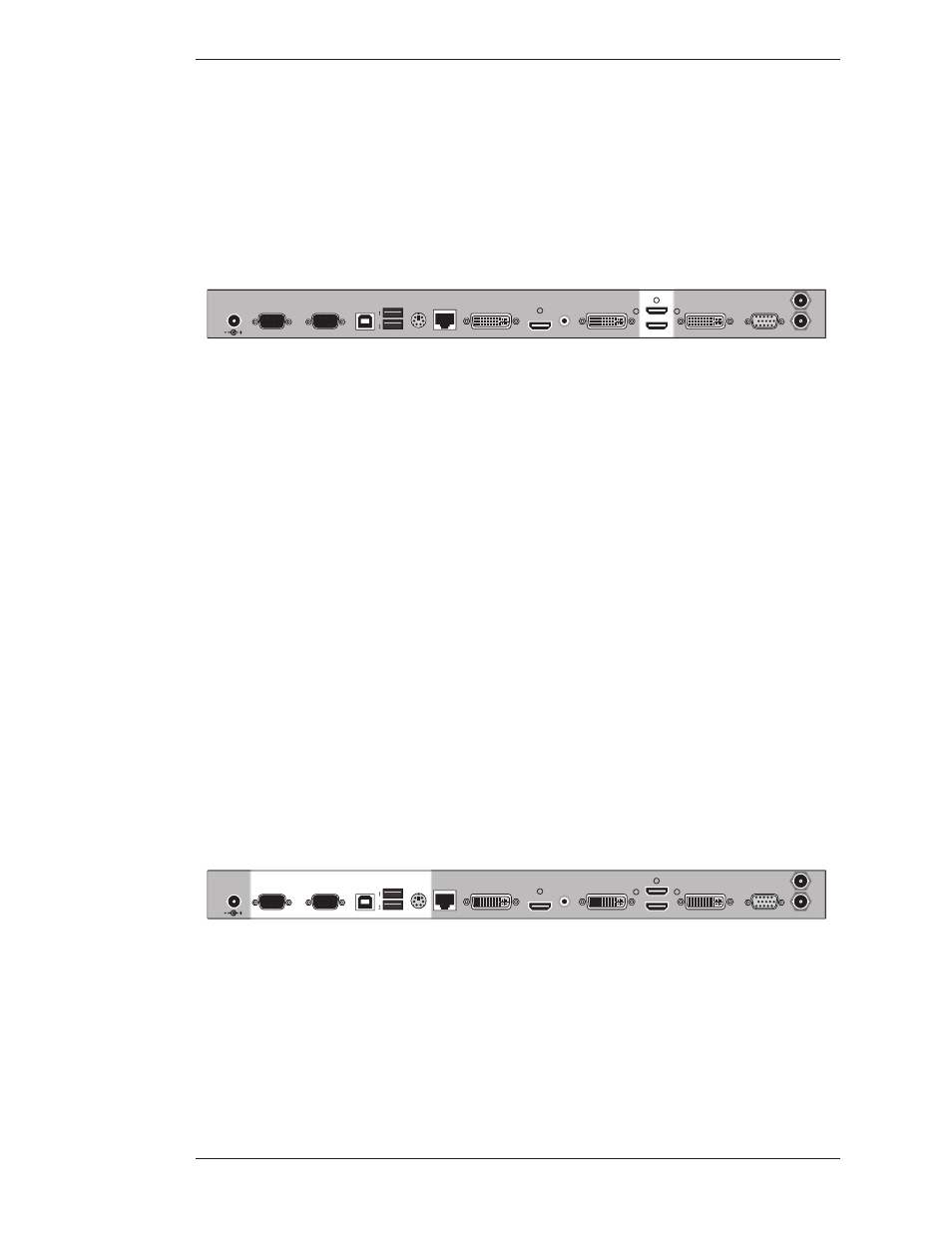

Figure 2-4: DVI-Video connectors
2. If desired, use a DVI-D video cable to connect the Pointmaker DVI-D
OUTPUT connector to a DVI display device.
Connecting Controllers
1. The following categories of controllers can be used with the CPN-5000:
• KB-30 Keyboard
• Touch Screens/Electronic
Whiteboards
• DTU-30 Digitizing Tablets
• Mouse devices
Here are some guidelines for setting up these devices.
IMPORTANT: Be sure to power down the Pointmaker before connecting or
disconnecting any controllers. The Pointmaker will automatically detect the
installed controllers upon power up. If you change controllers or add a new
controller, you need to power down, install the new controller(s), then power up.
HDMI Out SPDIF Out
DVI-I Out
Network
Keyboard
USB
COMM. 1
COMM. 2
Power
DVI-I 1 In
VGA In
Comp 1 /
Y In
Comp 2 /
C In
DVI-I 2 In
HDMI In
+24VDC
2.5A
1
2
Figure 2-5: Controller Ports
