Pointmaker CPN-5000 Color Video Marker
Boeckeler Instruments, Inc.
General Installation
Section Two:Installation
NOTE: To switch to composite, it is necessary to select it from the digitizing tablet
tem plate, menu system, or keyboard controller.
DVI Connectors
If connecting DVI video:
1. Using a DVI-D video cable, connect the Pointmaker DVI-D INPUT
connector to a DVI output connector on a DVI video source.
HDMI Out SPDIF Out
DVI-I Out
Network
Keyboard
USB
COMM. 1
COMM. 2
Power
DVI-I 1 In
VGA In
Comp 1 /
Y In
Comp 2 /
C In
DVI-I 2 In
HDMI In
+24VDC
2.5A
1
2

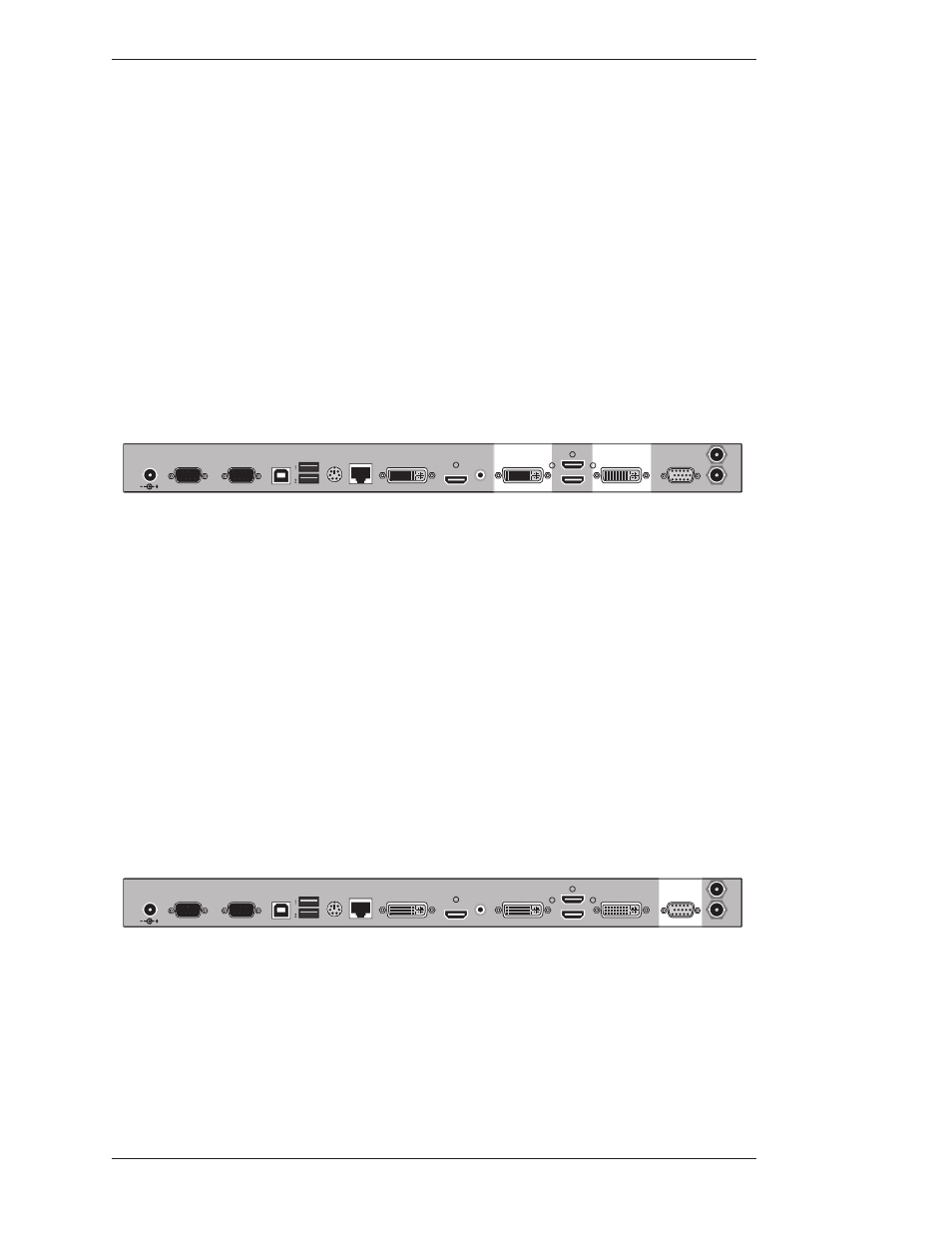

Figure 2-2: DVI-Video connectors
2. If desired, use a DVI-D video cable to connect the Pointmaker DVI-D
OUTPUT connector to a DVI display device.
VGA Connectors
If connecting VGA-Video:
1. Using a VGA video cable, connect a Pointmaker VGA INPUT connector
to a video output connector on a VGA video source.
HDMI Out SPDIF Out
DVI-I Out
Network
Keyboard
USB
COMM. 1
COMM. 2
Power
DVI-I 1 In
VGA In
Comp 1 /
Y In
Comp 2 /
C In
DVI-I 2 In
HDMI In
+24VDC
2.5A
1
2
Figure 2-3: VGA-Video Connectors
2. If desired, use a VGA video cable to connect the Pointmaker VGA
OUTPUT connector to a VGA display device.
