5.1.5.2 Digital I/O Configuration
The Digital I/O PDI supports up to 4 Bytes of digital I/O signals. Each byte can be assigned as input or
output byte.

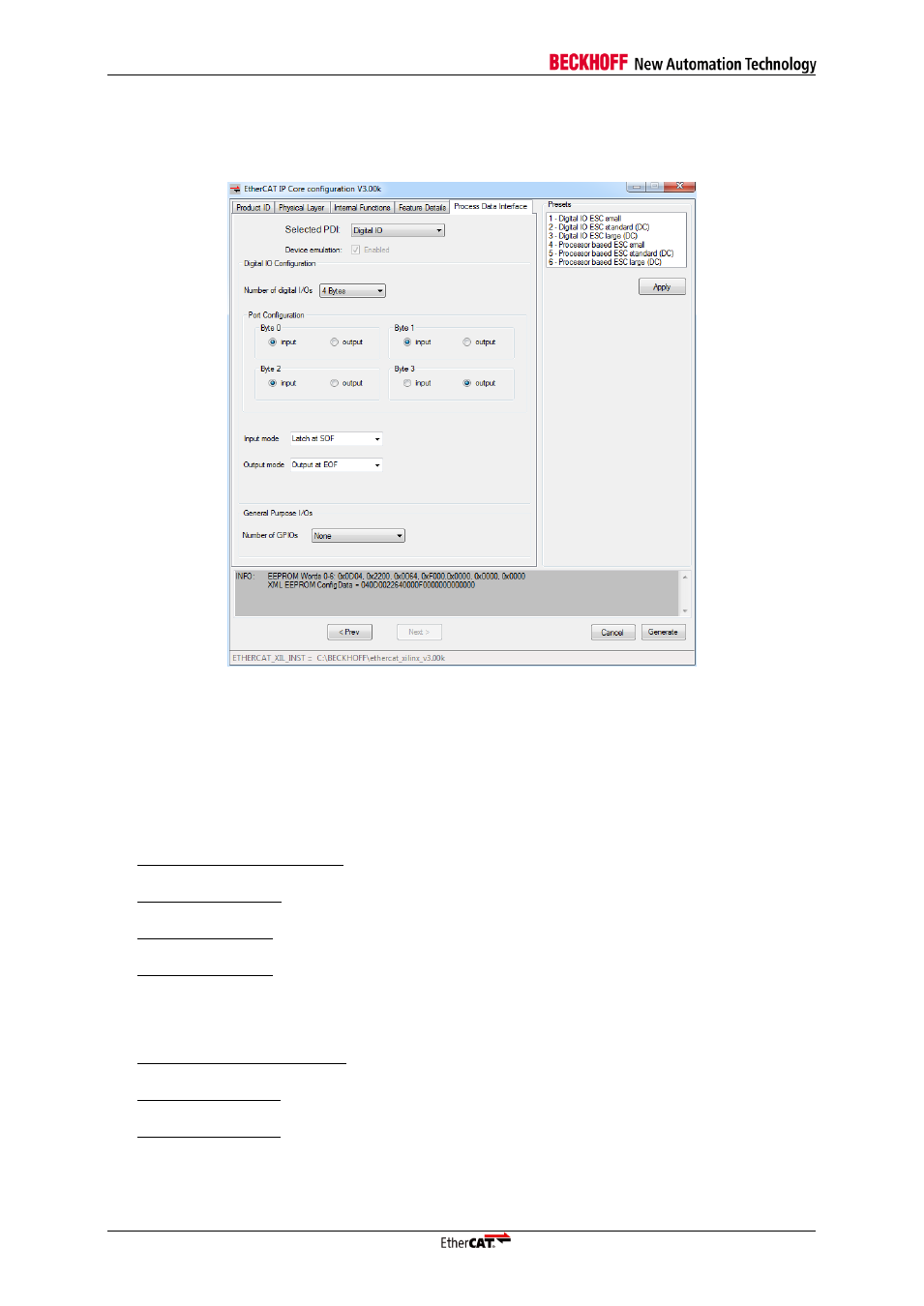

Figure 19: Register PDI – Digital I/O Configuration
Number of digital I/Os
Total number of I/Os. Possible values are 1, 2, 3 or 4 Bytes.
Port Configuration
Defining byte-wise if digital I/Os are used as input or output byte
Input Mode
Defines the latch signal which is used to take over input data.

Latch at SOF (Start of Frame)
The inputs are latched just before the data have to be written in the frame.

Latch with ext. signal
Connected to DIGI_LATCH_IN. Application controls latching

Latch at Dist-Sync0
Latch input data with distributed clock Sync0 signal

Latch at Dist-Sync1
Latch input data with distributed clock Sync1 signal
Output Mode
Defines the trigger signal for data output.

Output at EOF (End of Frame)
The outputs will be set if the frame containing the data is received complete and error free.

Output at Dist-Sync0
Outputs will be set with Sync0 signal if distributed clocks are enabled.

Output at Dist-Sync1
Outputs will be set with Sync1 signal if distributed clocks are enabled.
