IP Core Configuration
Slave Controller – IP Core for Xilinx FPGAs III-47
5.1.5.5 Processor Local Bus (PLB) Configuration
The PLB v4.6 PDI connects the IP Core with a PLB Master (e.g. Xilinx MicroBlaze TM ). The data bus
with is 32 bit, and the address bus is also 32 bit wide.

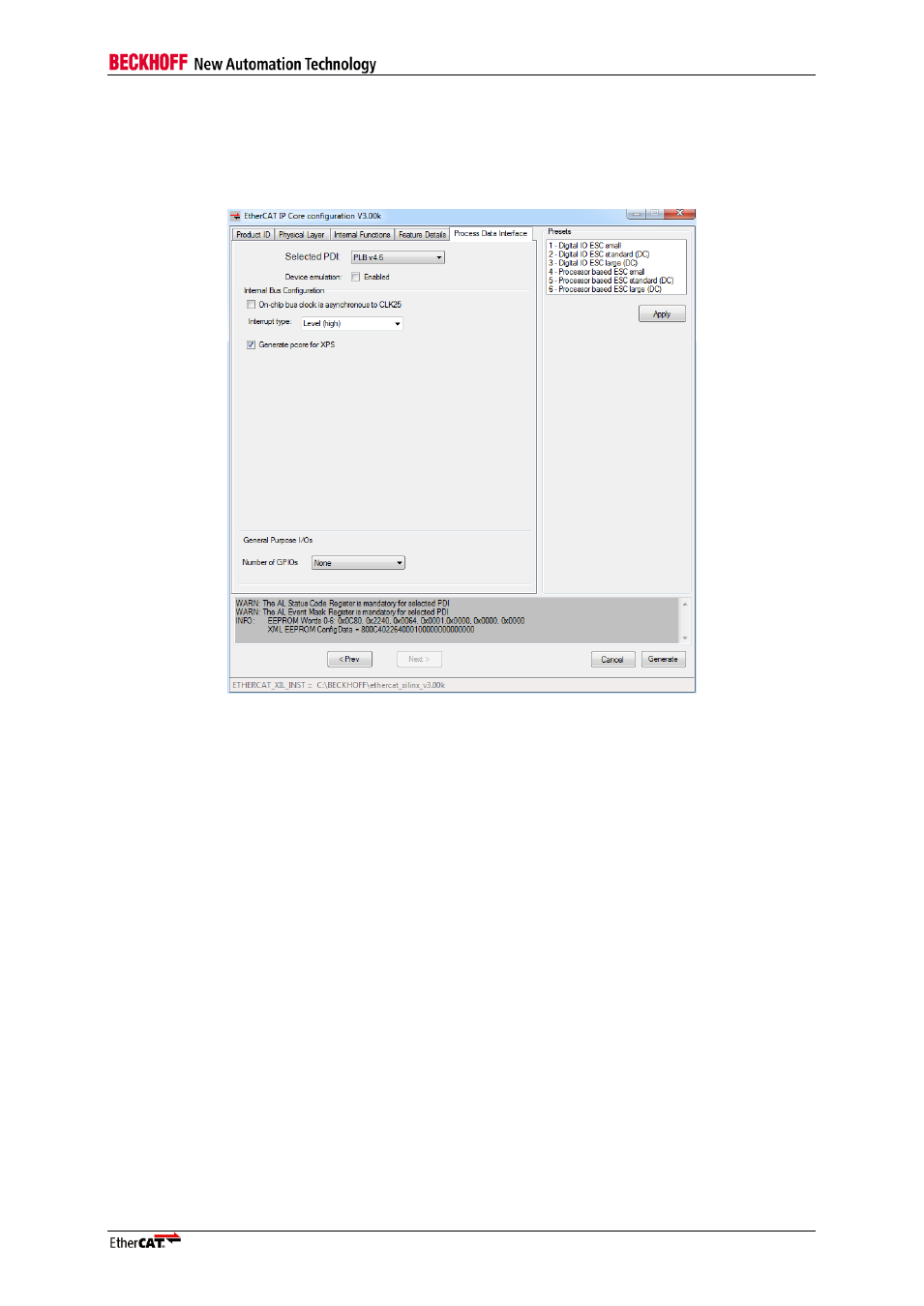

Figure 22: Register PDI – PLB Interface Configuration
Device emulation
Enable Device emulation (0x0141[0]=1). This feature should be disabled in most use cases.
On-Chip Bus CLK is asynchronous to CLK25 core clock
Enable if the On-chip BUS CLK is asynchronous to CLK25. Additional synchronization stages are
added in this case.
Interrupt type
Select the usage type of the interrupt signal (level or edge). Since the main interrupt can have different
sources, a level based interrupt is typically required.
Generate pcore for XPS
Enable generation of an EtherCAT IP Core package for Xilinx XPS/EDK, i.e., a pcores folder structure
with source files and module definitions.
