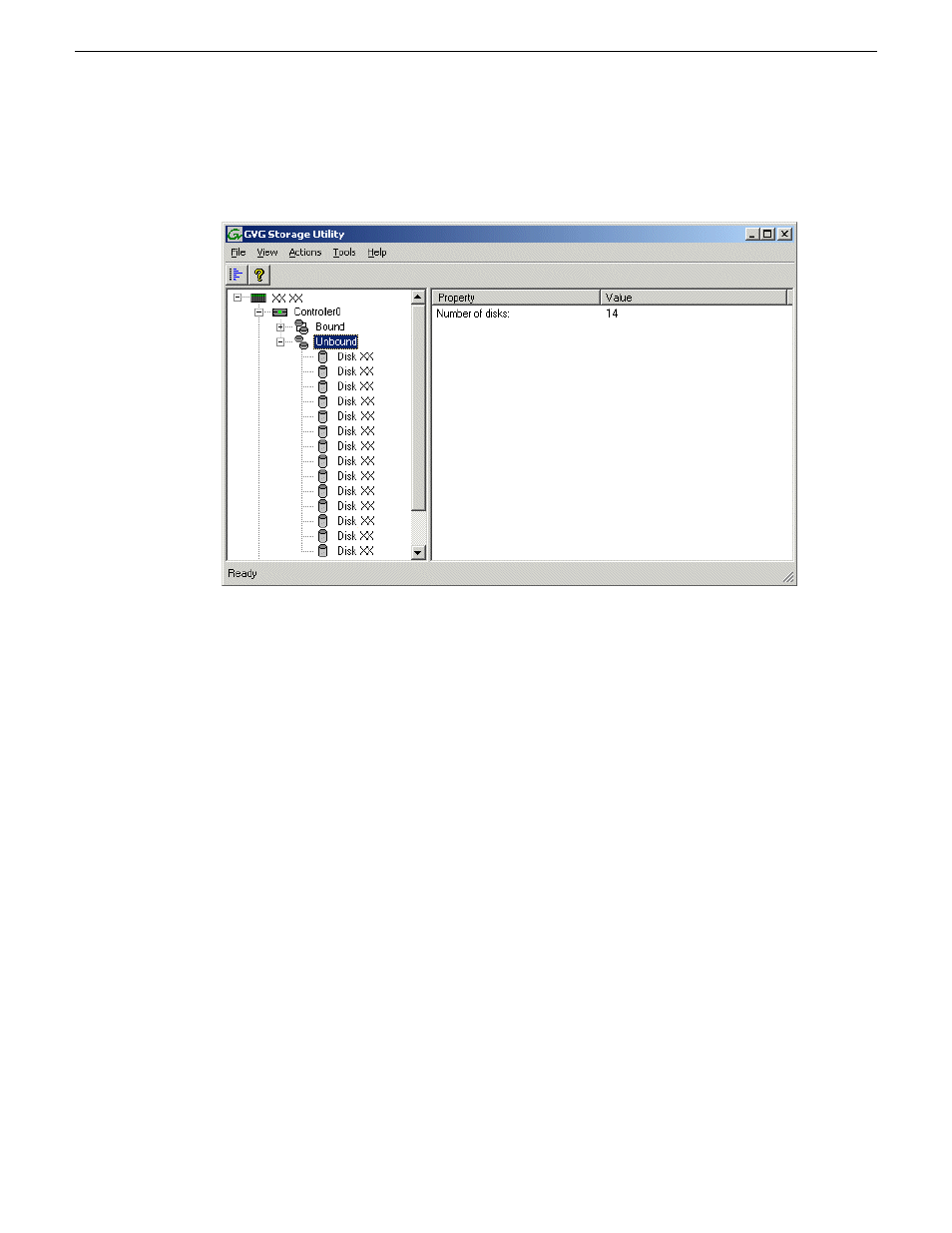

3. In the Storage Utility main window, identify bound RANKs and unbound disks by their placement
in the hierarchy of the tree view. In the following illustration, disk numbers are represented by
“XX”.
Proxy systems store media files across both the primary RAID chassis and the optional Expansion
chassis. In addition, file system metadata files and journal files are mixed in with the media files.
The RAID configuration is the same on all chassis. Each chassis contains disks, which are bound
as RAID 6 in a RANK of twelve disks. One twelve disk RANK fills one chassis.
