Turn to these instructions: Of this model or
platform… To cable this device…
K2 RAID basic Proxy Storage on page 39 K2 10Gv2 RAID K2 RAID
Cable Ethernet switch
As directed by the system diagram for your storage system, cable the switch or switches for your
system using the instructions in this section.
These instructions are for the HP ProCurve switch 2900 and 2910 series. You must use this switch
for iSCSI traffic.
For control and FTP/streaming traffic, it is allowed to use a different brand of switch, such as a
Cisco Catalyst switch, if required by your site. If you are using a non-HP switch, apply the information
in the following procedures accordingly. Refer to the documentation you received with the switch
as necessary.
Install the switch in its permanent location. When installing in a video equipment rack, use 10-32
screws. Do not use HP’s 12-24 screws, as they can cause thread damage.
Provide power to the switch.

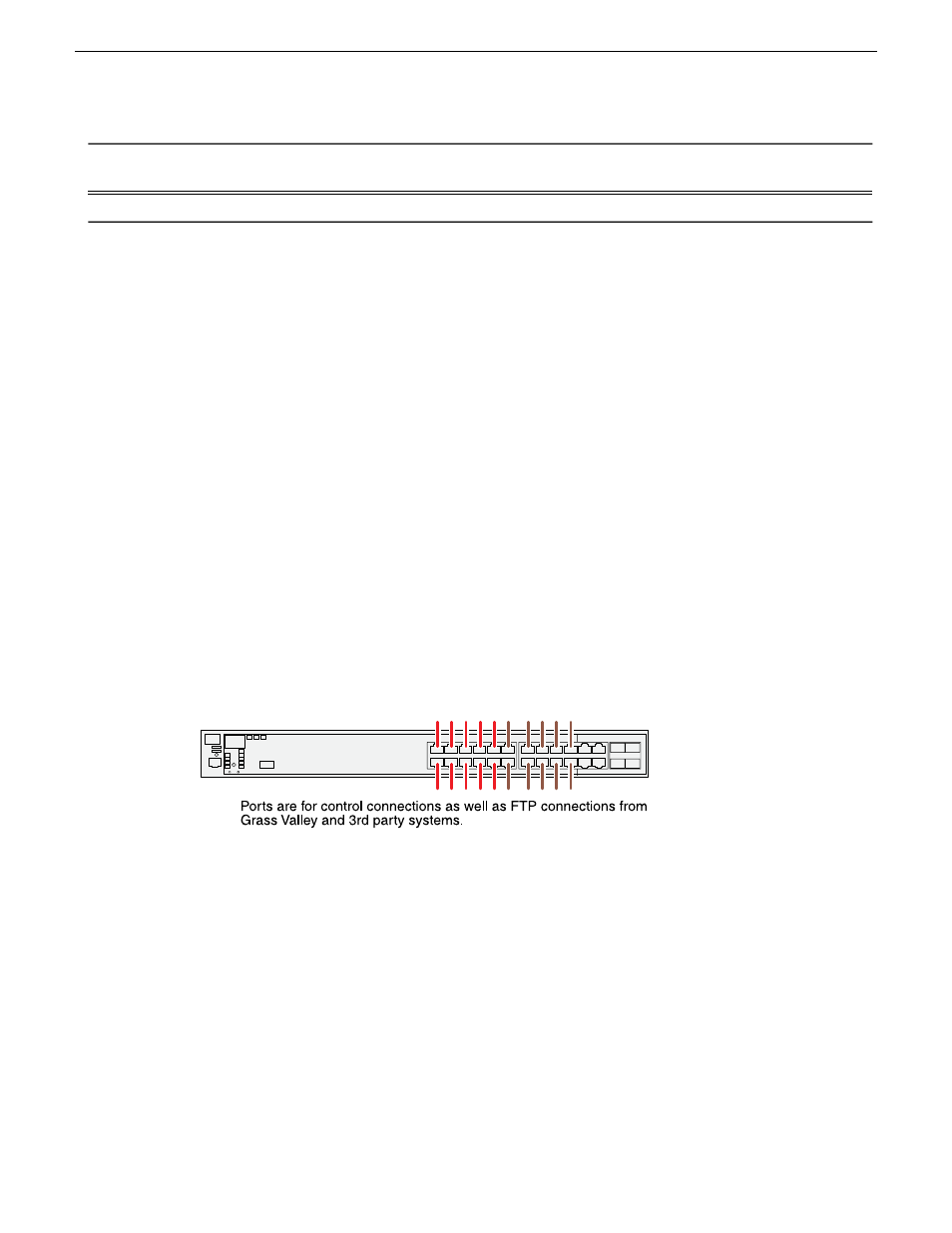

K2-SWE basic Proxy Storage
These cabling instructions apply to the following:
• HP 29xx series Gigabit Ethernet switch on a Proxy Storage system.
Front view
GV STRATUS server: Proxy Storage
As directed by the system diagram for your Proxy Storage system, cable the GV STRATUS server
that is the Proxy Storage file system server using the instructions in this section
38 GV STRATUS Installation and Service Manual 2013 12 19
Commissioning a system
