5. Click the
Add source
button
to add K2 server to the DIVA system configuration.

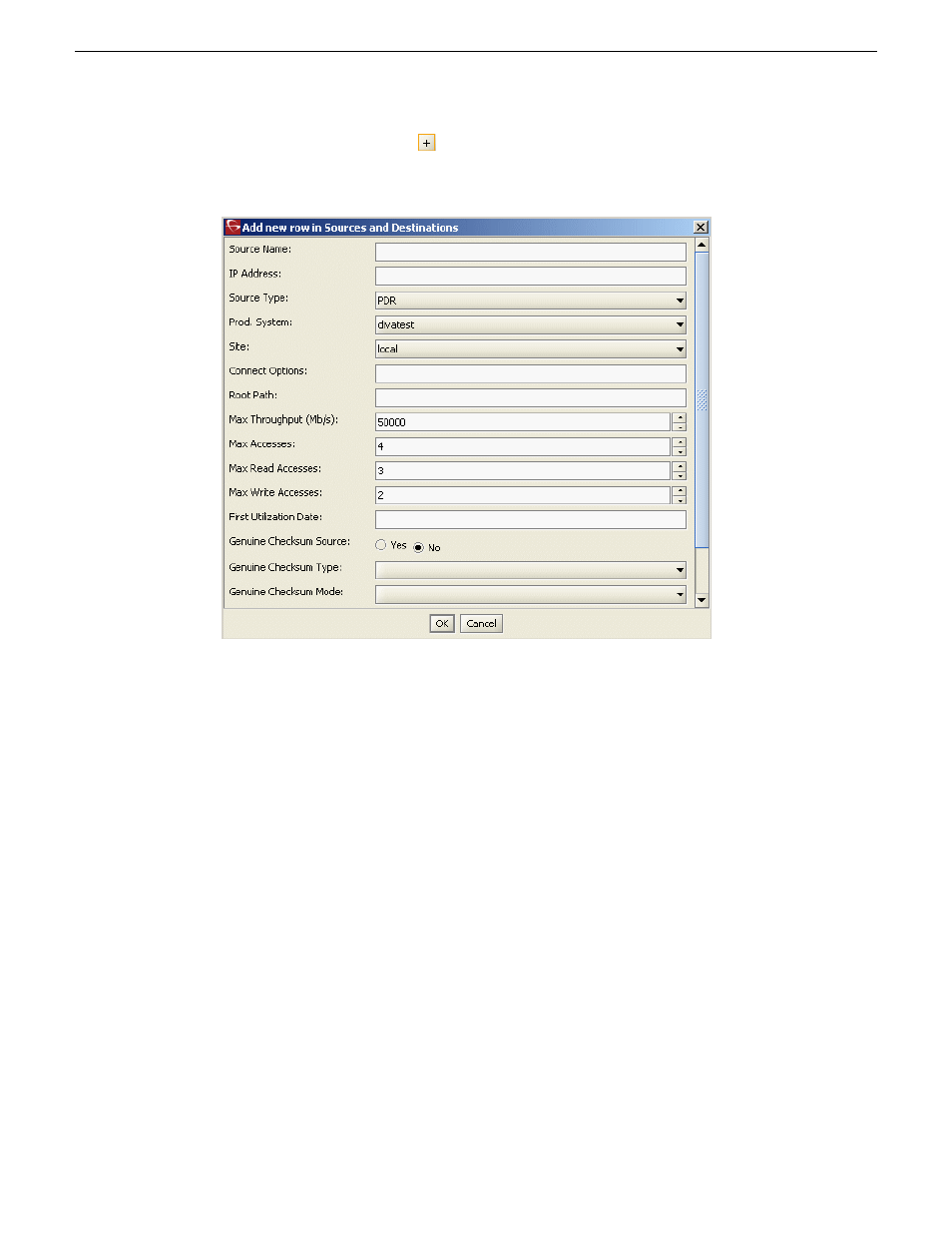

The configuration dialog opens.
6. Fill in the following information:
a) Source name – Name of the K2 server that the DIVA server connects to. If applicable, enter
the server name including the
_he0
and
_mxf
suffixes. For MXF archive, the
_mxf
suffix
must be at the end of the server name.
NOTE: To archive both GXF and MXF formats from a K2 server, make 2 entries of the
K2 server name with
_he0
suffix for GXF and
_he0_mxf
suffix for MXF.
b) IP Address – IP address of the K2 server.
c) Source Type – Select
PDR
.
d) Production System – Select the production system in your operation.
e) Site – Select the site in your operation.
f) Connect Options – Enter one of the following:
•
For GXF archive, enter
-k2 -login movie
.
•
For MXF archive, enter
-k2 -login mxfmovie
.
g) Root Path – You can leave this blank.
h) Max Throughput (Mb/s) – Enter
50000
for the maximum throughput.
i) Max Accesses – Enter
4
for the total number of maximum access.
j) Max Read Accesses – Enter
3
for the total number of maximum read access.
k) Max Write Accesses – Enter
2
for the total number of maximum write access.
