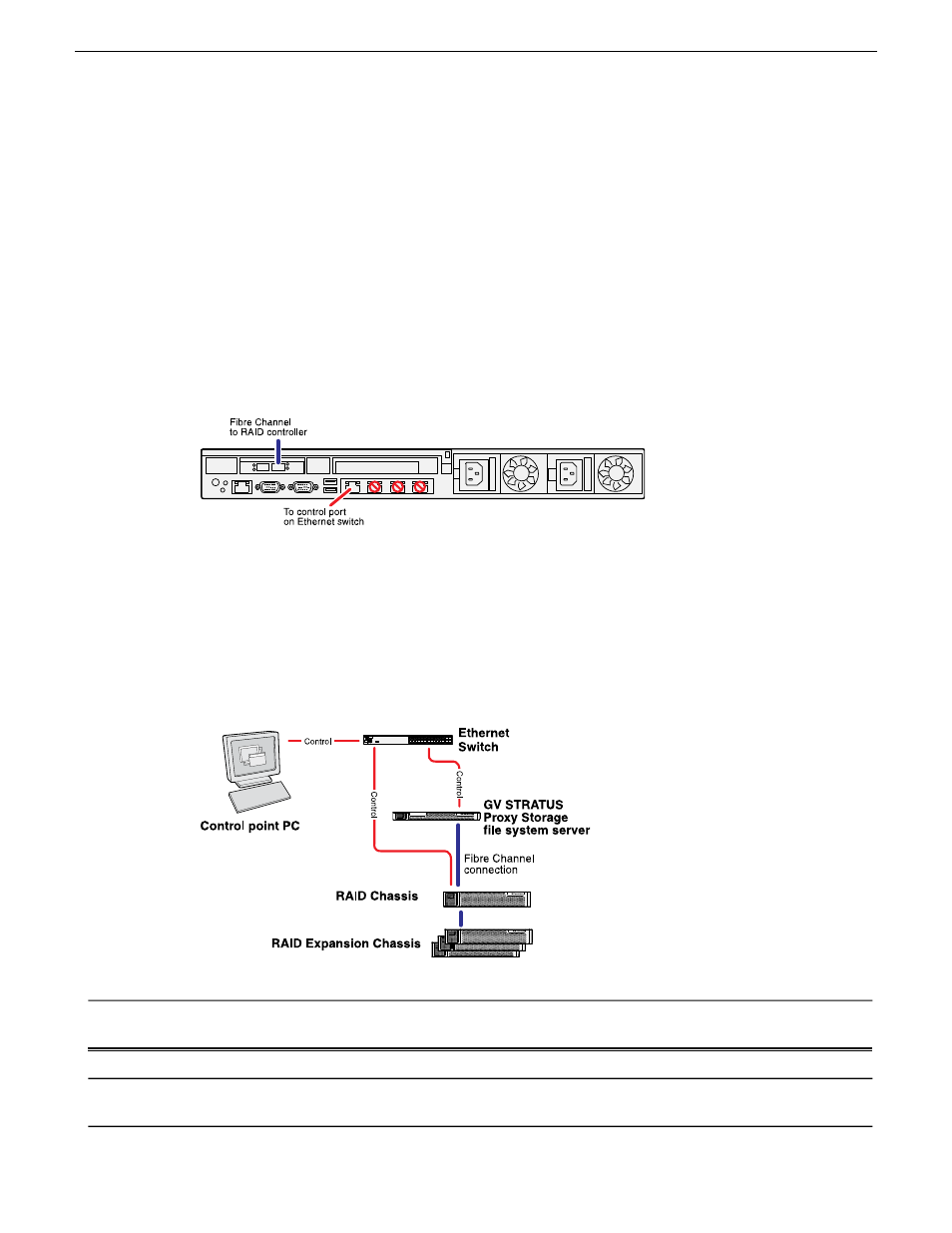

STRATUS-CS server: Proxy Dell R620
These cabling instructions apply to a GV STRATUS Proxy server, specified as follows:
• Dell R620 PowerEdge server connected to on an online or production K2 SAN, with the following
roles:
• GV STRATUS Event Viewer
• GV STRATUS Proxy K2 SAN Server
• StorNext File System Client
These roles require connections to the control network and a Fibre Channel connection to the K2
RAID. The server can have other roles as well.
Cable Proxy Storage system
Only systems with proxy on a dedicated Proxy Storage system require this process.
Proxy Storage system
Turn to these instructions: Of this model or
platform… To cable this device…
K2-SWE basic Proxy Storage on page 38 HP 2910 Gigabit Ethernet Switch
STRATUS-CS server: Proxy Storage file system server Dell
R620
on page 39
Dell R620 GV STRATUS Proxy
Storage file system server
2013 12 19 GV STRATUS Installation and Service Manual 37
