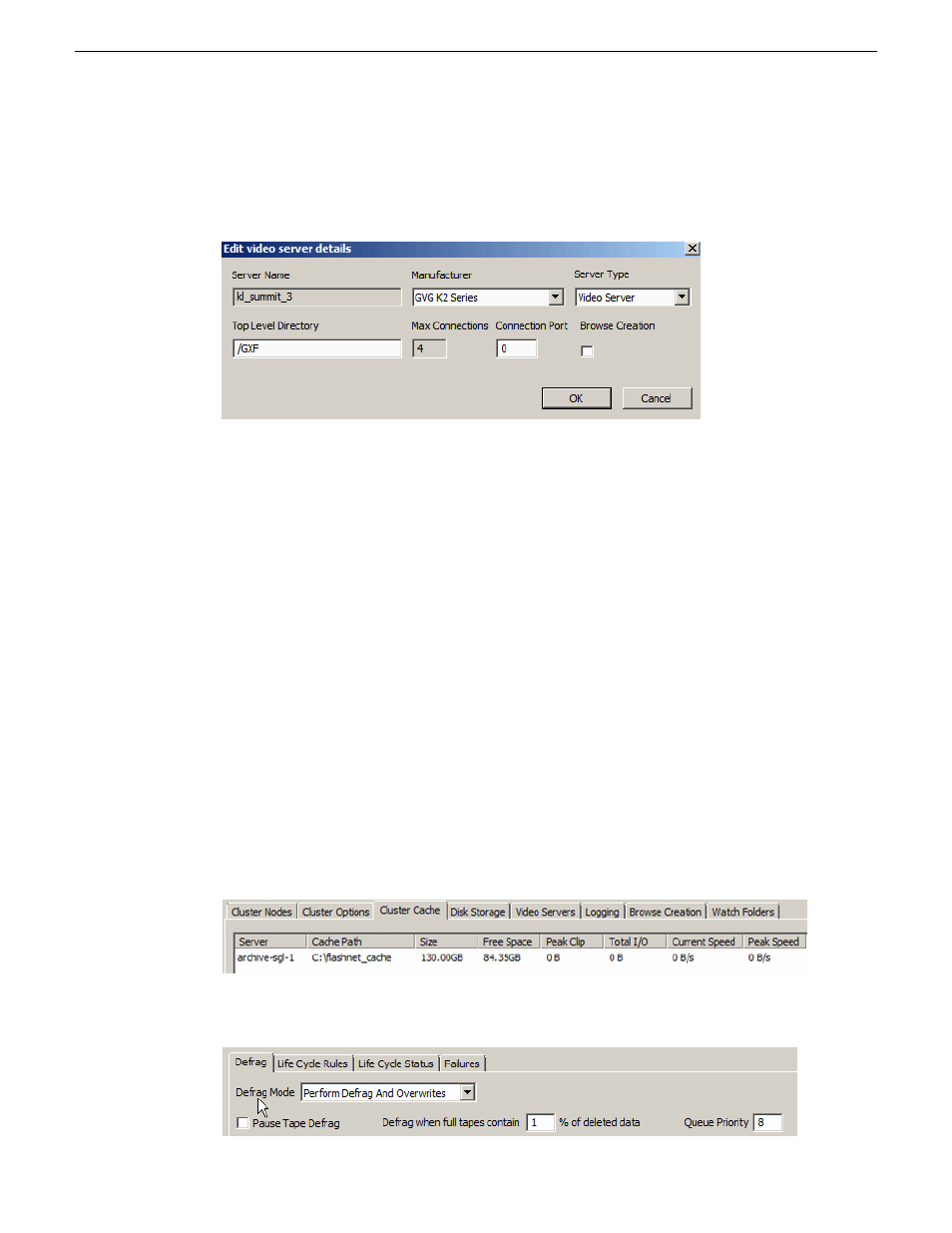

Grass Valley GV STRATUS Installation v.3.1 - Manual (Page 424)

7. Select the Video Servers tab.
8. Right-click and select Add Server .
The Edit video server details dialog opens.
9. Fill in the following information:
a) Server Name - Name of the K2 server that the FlashNet server connects to. If applicable,
enter the server name including the _he0 and _mxf suffixes. For MXF archive, the _mxf
suffix must be at the end of the server name.
NOTE: To archive both GXF and MXF formats from a K2 server, make 2 entries of the
K2 server name with
_he0 suffix for GXF and _he0_mxf suffix for MXF.
b) Manufacturer - Select GVG K2 Series .
c) Server Type - Select Video Server .
d) Top Level Directory - Enter /GXF or /MXF according to your archive MDI setting.
e) Connection Port - Enter 0 .
NOTE: When you add servers, update those server details in host tables of all devices that
use them. Make sure server names with
_he0 and _he0_mxf suffixes are added to your host
tables.
10. Click OK.
The K2 server is added to the FlashNet configuration.
Repeat above steps to add more K2 servers into the configuration.
11. Select the Cluster Cache tab, and add the cache path to allow the cleanup and deletion of assets.
12. Launch the FlashNet Storage Manager to continue with the cache cleanup configuration.
13. Select the Defrag tab, and set the Defrag Mode to Perform Defrag And Overwrites .
424 GV STRATUS Installation and Service Manual 2013 12 19
Complete system set up and configuration
