Configuring Summit MDI settings: Required for standalone
All systems with one or more standalone K2 Summit systems require this process.
If you received your system pre-configured from Grass Valley, your Summit MDI settings are
already configured so you can skip these tasks. Otherwise, work through this section sequentially
to configure your Summit MDI settings.

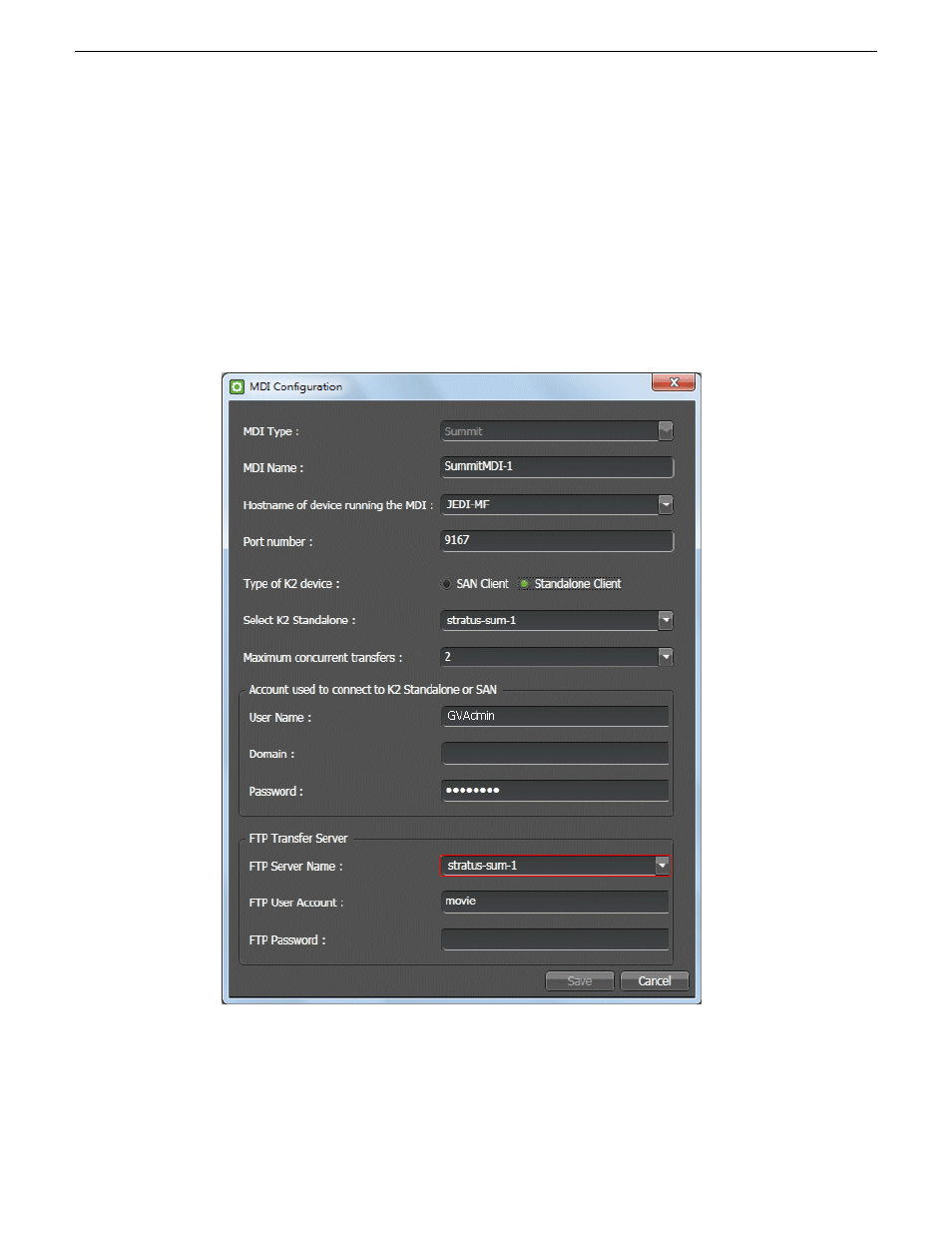

To locate these settings, click Tools | Core | STRATUS Core Services | MDI Configuration | Add | Summit
1. In the Control Panel application, open Summit MDI Configuration settings.
2. Configure one Summit MDI for each standalone K2 Summit system on your GV STRATUS
system.
When you have multiple Summit MDIs, they must each have their own process port number.
For this purpose, numbers 9160 - 9169 increment in the
Port field.
