3.6 Digital Operator and Front Cover
48 YASKAWA ELECTRIC TOEP C710656 08B YASKAWA Power Regenerative Unit - R1000 Instruction Manual
Models 2A0035 to 2A0105, and 4A0035 to 4A0300
1. Remove the terminal cover and the digital operator.
2. Loosen the installation screw on the front cover.
3. Use a straight-edge screwdriver to loosen the hooks on each side of the cover that hold it in place.
Figure 3.15

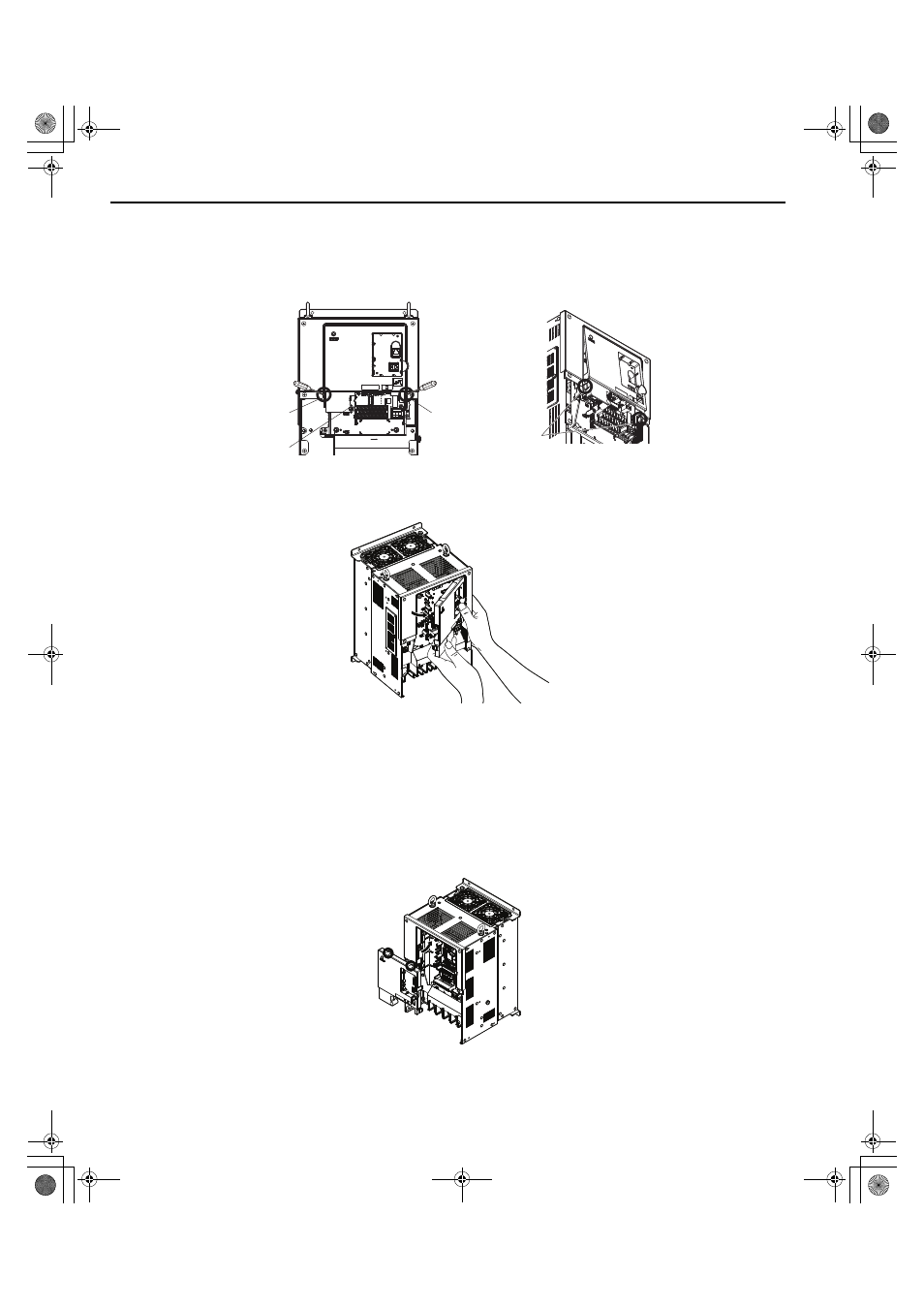

Figure 3.18 Remove the Front Cover (2A0035 to 2A0105, and 4A0035 to 4A0300)
4. Unhook the left side of the front cover then swing the left side towards you as shown in Figure 3.16 until the
cover comes off.
Figure 3.16
Figure 3.19 Remove the Front Cover (2A0035 to 2A0105, and 4A0035 to 4A0300)
■ Reattaching the Front Cover
Models 2A03P5 to 2A0028, 4A03P5 to 4A0028
Reverse the instructions given in Models 2A03P5 to 2A0028, 4A03P5 to 4A0028 (IP20/NEMA Type 1) on page 45 to
reattach the front cover. Pinch inwards on the hooks found on each side of the front cover while guiding it back into the
regenerative unit. Make sure it clicks firmly into place.
Models 2A0035 to 2A0105, and 4A0035 to 4A0300
1. Slide the front cover so the hooks on the top connect to the regenerative unit.
Figure 3.17
Figure 3.20 Reattach the Front Cover (2A0035 to 2A0105, and 4A0035 to 4A0300)
2. After connecting the hooks to the regenerative unit, press firmly on the cover to lock it into place.
Free hooks on both
sides of the cover
Hook Hook
Front cover
installation screw
