360

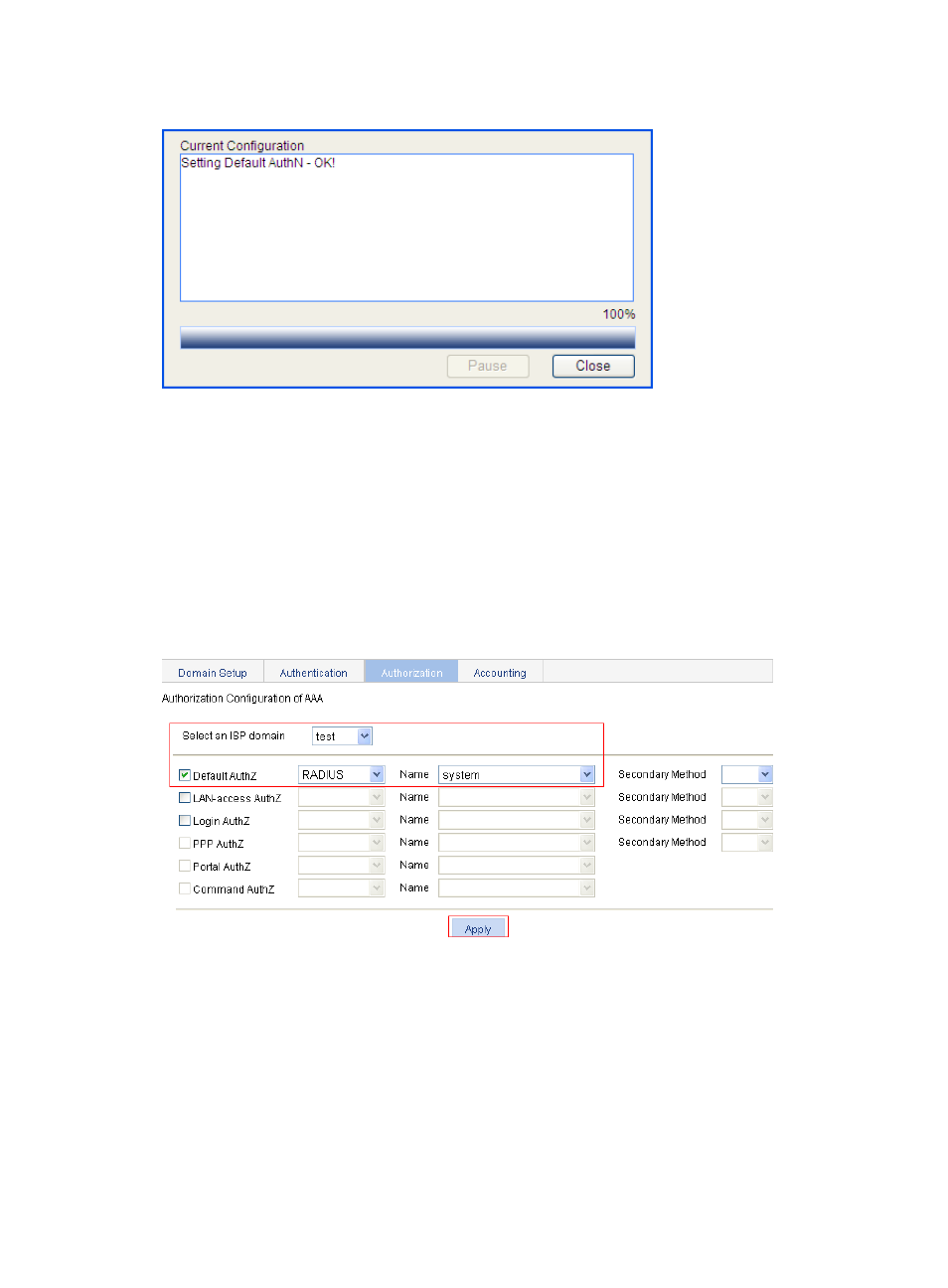

Figure 355 Configuration progress dialog box
5. Configure the AAA authorization scheme for the ISP domain.
a. Click the Authorization tab.
b. Select the domain name test.
c. Click the Default AuthZ box, and select the authorization mode RADIUS and the RADIUS
scheme system.
d. Click Apply.
A configuration progress dialog box appears.
e. After the configuration process is complete, click Close.
Figure 356 Configure the AAA authorization method for the ISP domain
6. Configure the AAA accounting scheme for the ISP domain.
a. Click the Accounting tab.
b. Select the domain name test.
c. Click the Accounting Optional box and select Enable from the list.
d. Click the Default Accounting box, and select the accounting mode RADIUS and the RADIUS
scheme system.
e. Click Apply.
A configuration progress dialog box appears.
